Quick Details
-
Model Number:
-
WSV-3TS
-
Accuracy:
-
1.0%
-
Application:
-
Measuring
-
Power supply:
-
220VAC/ 24VDC
-
Material:
-
316L
Quick Details
-
Type:
-
Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Water Flowmeters
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Winsun
-
Model Number:
-
WSV-3TS
-
Accuracy:
-
1.0%
-
Application:
-
Measuring
-
Power supply:
-
220VAC/ 24VDC
-
Material:
-
316L
The product has a wide range of applications, good sealing and stability.
Product Profile

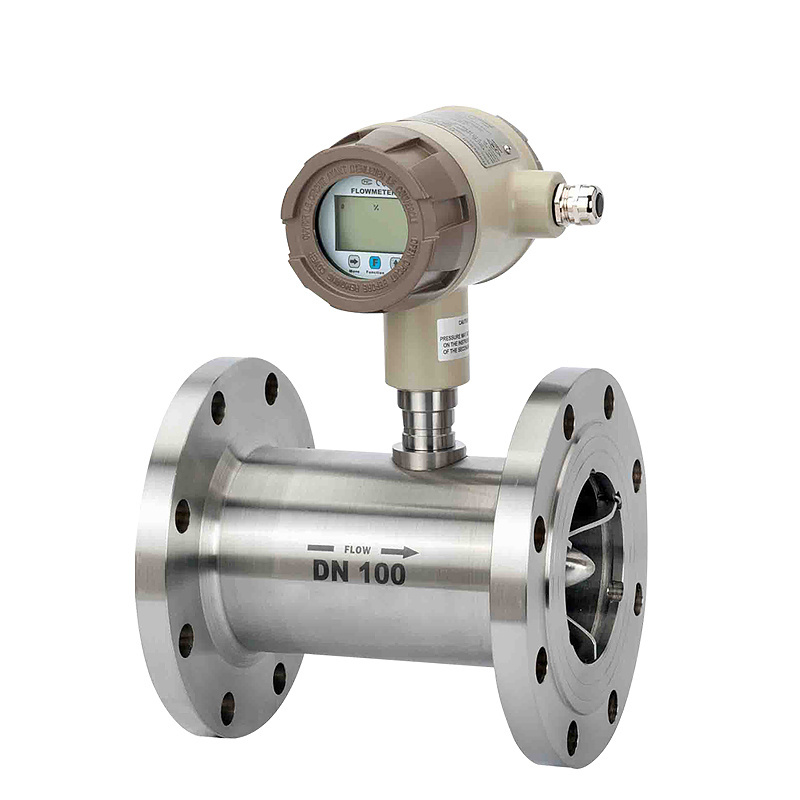

gas turbine flowmeter is a kind of velocity flow meter that accurately measures gas flow. It has the advantages of simple and light structure, high measurement accuracy, good repeatability, wide measurement range, convenient installation and maintenance, etc. It is widely used in the measurement of various gases such as natural gas, city gas, propane, butane, air, nitrogen and other gases in petroleum, chemical industry, metallurgy, aviation, scientific research and other departments and industrial fields. Due to its high precision and good repeatability, the instrument is suitable for trade measurement and industrial process detection.
Technical parameter table
|
Item |
Gas turbine flow meter |
|
Accuracy |
1.5% |
|
Measuring range |
2.5-6000 m3/h |
|
Diameter (MM) |
DN20-DN300 |
|
Range ratio |
1:10 , 1:20 |
|
Output |
4-20mA / Pulse / RS485 |
|
Press |
1.6Mpa, Option (2.5MPa, 4.0MPa, 6.4Mpa) |
|
Power |
24VDC or 3.6V Lithium battery |
|
Connection |
Flange(DN20-DN300), Thread (DN20-DN40) |
|
Conditions of use
|
A. ambient temperature:-25 ~+80 ℃ B. medium temperature:-20 ~+60 ℃ C. relative humidity: 5-95% D. atmospheric pressure: 86 kpa-106 kpa |
|
Protection level |
IP65 |
