Quick Details
-
Size:
-
520mm*415mm*224mm
-
Power consumption:
-
≤100W
-
External supply voltage:
-
100 ~ 220V AC
-
Battery run time:
-
≥4h Dual batteries
-
Operating temperature:
-
-20~65℃
-
Storage temperature:
-
-40~70℃
-
Waterproof:
-
IP65 Case closed
-
Screen size:
-
10.1 inches
-
Brightness:
-
500cd/m²
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Briefcase Style Drone Detector
-
Weight:
-
≤20kg
-
Size:
-
520mm*415mm*224mm
-
Power consumption:
-
≤100W
-
External supply voltage:
-
100 ~ 220V AC
-
Battery run time:
-
≥4h Dual batteries
-
Operating temperature:
-
-20~65℃
-
Storage temperature:
-
-40~70℃
-
Waterproof:
-
IP65 Case closed
-
Screen size:
-
10.1 inches
-
Brightness:
-
500cd/m²
Products Description

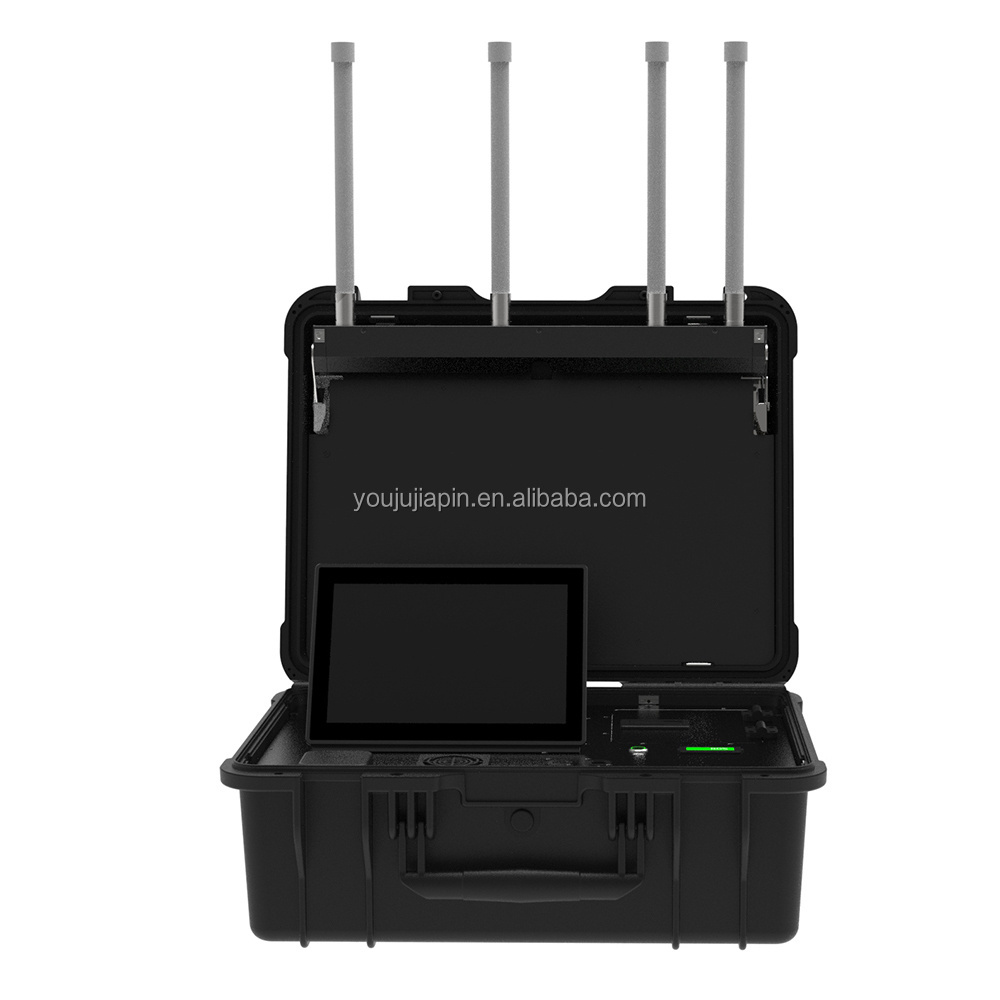

H1C Portable Drone Detector
H1C drone detector is a portable drone monitoring platform, used for detection, identification, location and tracking of drones and pilots.
H1C is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical
infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area. It is highly
portable, easy to carry and use, ready to deploy in seconds.
H1C is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical
infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area. It is highly
portable, easy to carry and use, ready to deploy in seconds.
*
Dronedetection and identification
:H1C detects and identifies various name brand drones such as DJI and AUTEL, as well as WiFi drones, FPVs, some DIY drones；
* Trajectory tracking anddisplay :The real-time flight trajectory of the tracked drones can be displayed on the GIS map；
* Pilot position display : The position of the pilot (remote controller) can be tracked and displayed, and the location
information can be updated in real time；
* Drone detailed information monitoring : The detailed informationof drones and pilotscan be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information；
* Sole identity: For each drone, H1C can identify its unique S/N number；
* Black and white list :Distinguish between “friend” and “foe”, H1Cwill not alarm when a “friend” drone is detected, a “friend” or “foe” can be tagged (only support DJI series drones)；
* Intrusion alarm : When the device detects a drone intrusion, an audible and/orvisual alarm is performed；
* Map operation :Support online map and local map；
* Map types :Support a variety of digital maps, including AutoNavi, Bing, Baidu, Google, etc.；
* Historic data playback :Record and playback ofhistoric drone trajectories, model, pilot location and home point and other information；
* Data record query :Usercan query the historic data of the drones detected according to the time period；
* Data statistics : Historical drone detection data statistics and graphical analysis；
* Drone swarm tracking : Multiple drones can be tracked at the same time and different dronetrajectories are displayed with different colors；
* Multi-device networking :Multiple devices can access the back-end management platform at the same time for unified device management and data management, and can merge the detection results of multiple devices (including drones, pilots, and trajectories).
Note : Function 1,2,3,4,5,6 only apply to DJI Mavic, Air, Mini, FPV, Avata series.
* Trajectory tracking anddisplay :The real-time flight trajectory of the tracked drones can be displayed on the GIS map；
* Pilot position display : The position of the pilot (remote controller) can be tracked and displayed, and the location
information can be updated in real time；
* Drone detailed information monitoring : The detailed informationof drones and pilotscan be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information；
* Sole identity: For each drone, H1C can identify its unique S/N number；
* Black and white list :Distinguish between “friend” and “foe”, H1Cwill not alarm when a “friend” drone is detected, a “friend” or “foe” can be tagged (only support DJI series drones)；
* Intrusion alarm : When the device detects a drone intrusion, an audible and/orvisual alarm is performed；
* Map operation :Support online map and local map；
* Map types :Support a variety of digital maps, including AutoNavi, Bing, Baidu, Google, etc.；
* Historic data playback :Record and playback ofhistoric drone trajectories, model, pilot location and home point and other information；
* Data record query :Usercan query the historic data of the drones detected according to the time period；
* Data statistics : Historical drone detection data statistics and graphical analysis；
* Drone swarm tracking : Multiple drones can be tracked at the same time and different dronetrajectories are displayed with different colors；
* Multi-device networking :Multiple devices can access the back-end management platform at the same time for unified device management and data management, and can merge the detection results of multiple devices (including drones, pilots, and trajectories).
Note : Function 1,2,3,4,5,6 only apply to DJI Mavic, Air, Mini, FPV, Avata series.
* Portable design,suitcase style, easy to carry and move;
* Passive detection, no signal emission, environmentally friendly;
* Real-time monitoring of drone signals in the surroundings to provide warning of drone intrusion in advance;
* Dual-power supply design, can be powered by batteries or external source, which can adapt to a variety of scenarios;
* Detachable battery allows for quick replacement;
* Interfaces for external keyboard and mouse;
* Online or offline upgrades;
* Works offline or online;
* Touch screen for easy operation;
* Quick deployment, ready to use in seconds;
* Self-diagnosis for quick troubleshooting;
* Cabinet for antenna storage when the device is off duty.
* Passive detection, no signal emission, environmentally friendly;
* Real-time monitoring of drone signals in the surroundings to provide warning of drone intrusion in advance;
* Dual-power supply design, can be powered by batteries or external source, which can adapt to a variety of scenarios;
* Detachable battery allows for quick replacement;
* Interfaces for external keyboard and mouse;
* Online or offline upgrades;
* Works offline or online;
* Touch screen for easy operation;
* Quick deployment, ready to use in seconds;
* Self-diagnosis for quick troubleshooting;
* Cabinet for antenna storage when the device is off duty.
