The I.C.T-9200 is designed to provide high-resolution X-ray imaging for the electronics industry. This versatile system is effective for many
applications in the PCB manufacturing process. This includes semiconductors such as BGA, CSP, LGA, POP, SIP, QFN, flip chips, COB, and LED. The I.C.T-9200 is a powerful support tool for process development, process monitoring, and refinement of rework operations.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
I.C.T
-
Model Number:
-
I.C.T-9200
-
Name:
-

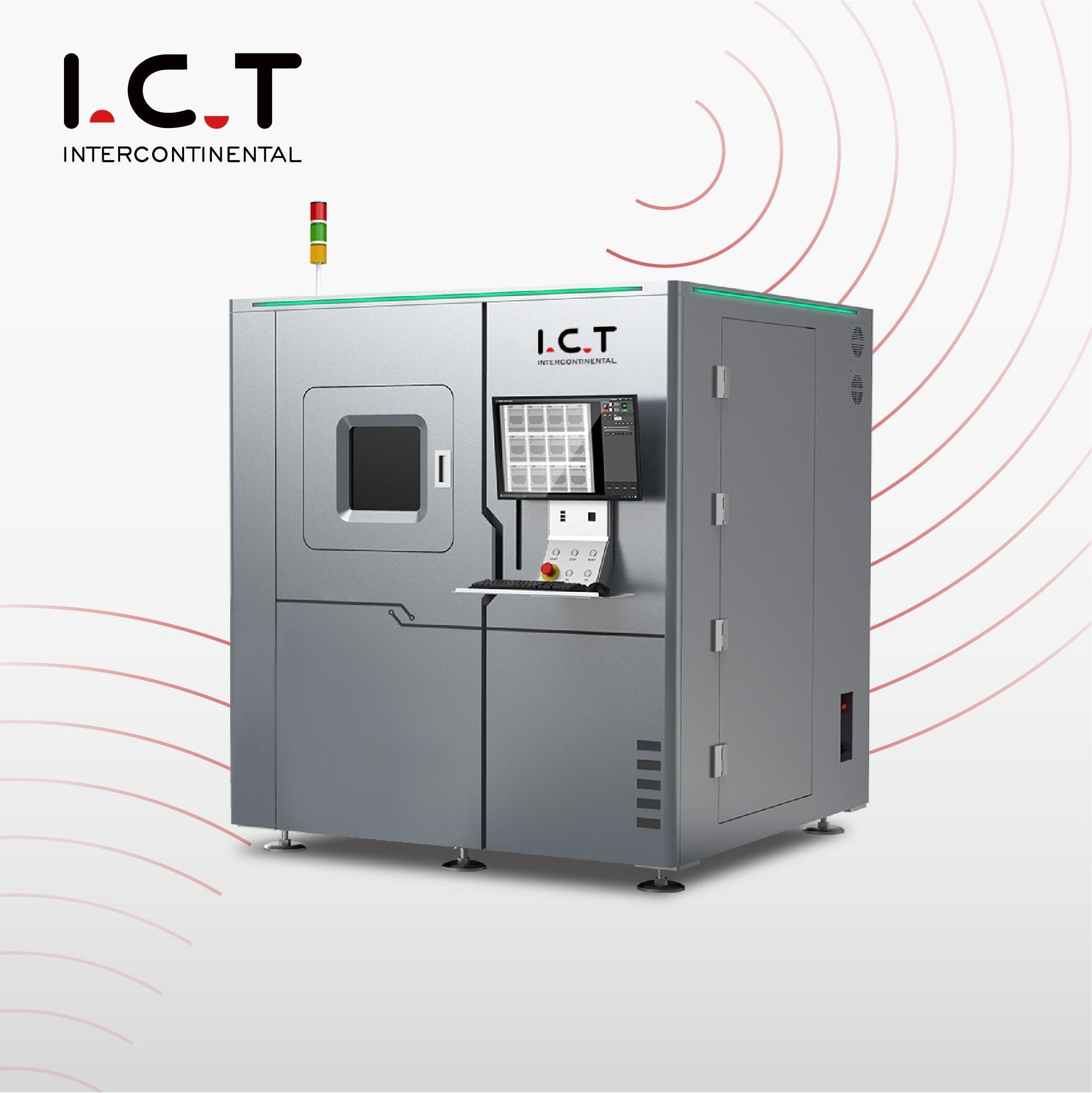

SMT X-ray I.C.T-9200
-
Application:
-
Inspection
-
Voltage:
-
160kV/1000μA,
-
Power supply:
-
AC 110~220V (±10%) 50Hz, 3kW
-
Function:
-
Testing
-
Payment:
-
T/T
-
PCB size:
-
customized
-
Brand:
-
I.C.T
-
Usage:
-
Repair
Quick Details
-
Weight (KG):
-
3330
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Provided
-
Brand Name:
-
I.C.T
-
Model Number:
-
I.C.T-9200
-
Name:
-
SMT X-ray I.C.T-9200
-
Application:
-
Inspection
-
Voltage:
-
160kV/1000μA,
-
Power supply:
-
AC 110~220V (±10%) 50Hz, 3kW
-
Function:
-
Testing
-
Payment:
-
T/T
-
PCB size:
-
customized
-
Brand:
-
I.C.T
-
Usage:
-
Repair
Competitive Price Automatic Systems PCB Testing Visual SMT Inspection Equipment X Ray Machine
Products Description
Introduction:
Features：
1. 130KV closed X-ray tube;
2. High-speed million high-resolution FPD detector, 6-axis motion system, to meet various high-demand detection needs;
3. Windows navigation, convenient target tracking;
4. BGA void area automatic measurement and report generation;
5. Multifunctional DXI image processing system with multiple image inspection programs with XY programming;
6. The machine comes with UPS to reduce the damage to the equipment caused by sudden power failure;
7. Configure the energy real-time monitoring system;
8. 3D CT scanning system. (Planar CT+Cone beam CT);
9. Ergonomic design, friendly man-machine interface;
10. High safety, with EU CE Certificate, International Quality Management System ISO, and AERB Certificate for X-ray
Large Size Inspection Table
It is equipped with a 530mm*470mm large-size tray, which can place multiple items for simultaneous detection, and is equipped with a camera and red laser navigation
Real-time Monitoring of Radiation
The machine is equipped with real-time monitoring of X-RAY
radiation, visualization of ray energy status, and real-time
protection of operator safety.
radiation, visualization of ray energy status, and real-time
protection of operator safety.
BGA void rate calculation
The machine pre-sets the acceptable standard for voids. After debugging the machine, you can select the corresponding area to automatically calculate the void rate of each pin, which is displayed in green in the qualified range, and displayed in red if it exceeds the standard, which is very intuitive.
Safely Electromagnetic Interloc&khardware protection
Safety interlock function The opening position of the door is
equipped with a limit switch,when the door is opened,the X-Ray tube is automatically powered off. The six sides of the machine are designed with a steel-lead steel structure, and the observation window is made of lead-containing glass.
equipped with a limit switch,when the door is opened,the X-Ray tube is automatically powered off. The six sides of the machine are designed with a steel-lead steel structure, and the observation window is made of lead-containing glass.
Application:
SMT, BGA, CSP, Flip Chip, LED Detection,Semiconductor, Packaging components, Battery Industry,Electronic components, Automotive parts, Photo-voltaic ,Aluminium Die-casting, Moulding Plastic.Ceramics, other special industries.
BGA 3D CT Detection
IC 3D CT Detection
Die Casting Detection
Specification :
|
Item
|
Model
|
I.C.T-9200
|
|
|
Navigation
|
Camera
|
HD Camera, Laser point
|
|
|
Axis
|
Manipulator
|
6-axis with Cam X / Y / T , Platform X / Y / Z
|
|
|
|
Axis Control
|
X, Y
|
|
|
Equipment Features
|
Power Supply
|
AC 110~220V (±10%) 50Hz, 3kW
|
|
|
Equipment Features
|
Outline Dimensions
|
1640(W)*2070(D)*1800(H) mm
|
|
|
|
System Weight
|
3330 kg
|
|
|
UPS
|
1000VA, 800W
|
|
|
Certifications
Packing & Delivery
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
