Quick Details
-
Gain:
-
24-42dB or can customized
-
input frequency:
-
2.5-2.7GHz/2.2-2.4Ghz
-
Frequency:
-
1838,1926,1998,2030,2033,2065,2278MHz or can customized
-
Output connector:
-
F-female connector
-
Type:
-
digital
-
item:
-
mmds lnb
-
Packing:
-
standard carton for mmds down converter
-
Factory:
-
Anhui bowei electronics technology co.,ltd
Quick Details
-
Place of Origin:
-
Anhui, China
-
Material:
-
Aluminum
-
high gain:
-
Yes
-
Gain:
-
24-42dB or can customized
-
input frequency:
-
2.5-2.7GHz/2.2-2.4Ghz
-
Frequency:
-
1838,1926,1998,2030,2033,2065,2278MHz or can customized
-
Output connector:
-
F-female connector
-
Type:
-
digital
-
item:
-
mmds lnb
-
Packing:
-
standard carton for mmds down converter
-
Factory:
-
Anhui bowei electronics technology co.,ltd
|
Input Frequency |
2100-2300Mhz,2200-2400Mhz,2300-2500Mhz,2500 to 2700MHz |
|
Noise Figure |
2.5dB@24dB,1.8dB@32dB,1.4dB@36dB |
|
Image Rejection |
≥50dB |
|
VSWR |
1.5:1 |
|
If Rejection |
≥80dB |
|
PCS Rejection |
≥100dB |
|
WCS Rejection |
≥50dB |
|
3 order intermodulation |
≤-50dB |
|
Conversion Gain |
24dB±1.5dB,32dB±1.5dB,36dB±1.5dB |
|
L.O. Leakage Antenna Port |
≤-85dBm |
|
L.O. Leakage IF-Port |
≤-50dBm |
|
L.O. Phase Noise |
-80dBc@100Hz offset -92dBc@1kHz offset -93dBc@10kHz offset -95dBc@100kHz offset -120dBc@1MHz offset |
|
Output P1dB |
+14dBm(typical) |
|
Gain Flatness Over Entire Range |
≤±1.5dB |
|
Gain Flatness |
≤0.2dB/CHANNEL |
|
IF Output Impedance |
75ohms |
|
DC Current Consumption |
14v-24v |
|
DC Input voltage |
14v-24v |
|
Spurious in IF Band |
≤-100dBm |
|
L.O. Frequency |
1838,1998,,2030,2033,2278,
|
|
L.O. Stability |
≤±30KHz |
|
Operating Temperature |
-40centigrade to +70centigrade |
|
Input Type |
BT280:Integrated Dipole Antenna |
|
Lightning Protection |
Meets IEEE Stands |
|
100% Hermetic |
Sealed |

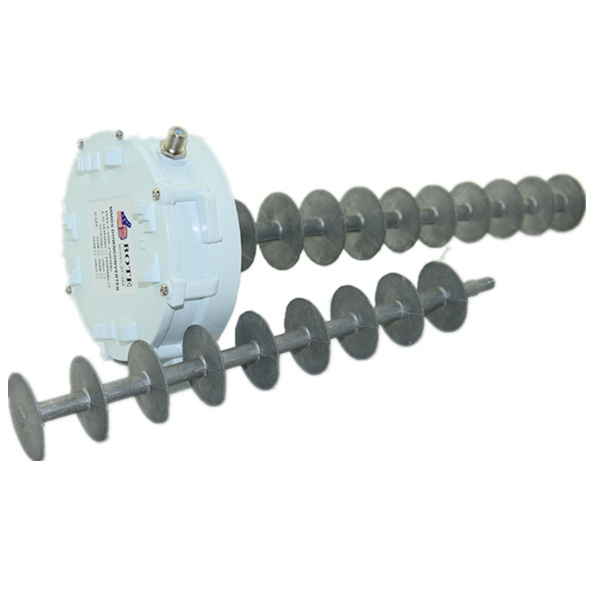

Picture show:
Factory show:
Why choose us:
1. - Prompt Delivery
2. - Advanced Equipments
3. - OEM&Customization
4. - Rich Product Line
5. - Strong R&D Capability
Payment Way:
We accept T/T, Western Union, Paypal, L/C ....
(
different payment way in different area
)
Contact us:
IF you have any questions,please feel free to contact me.We can talk about more details about products and delivery
