Quick Details
-
Mounting Type:
-
screw fixing
-
Description:
-
wall switch, sensor
-
Model Number:
-
ST02E
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Theory:
-
Infrared motion sensor
-
Output:
-
220V
-
Product name:
-
Infrared motion sensor
-
color:
-
white
-
material:
-
PC(UV proof)+Glass
-
qty of wire connnections:
-
2 wire
-
Warranty:
-
3 Years
-
Detection distance:
-
max.9m(<24℃)
-
Ambient light:
-
<3-2000lux
-
Installation height:
-
1-1.8m
-
Time delay:
-
10s-7min
Quick Details
-
Usage:
-
LAMP SWITCH
-
Series:
-
Motion sensor
-
Features:
-
mini square
-
Mounting Type:
-
screw fixing
-
Description:
-
wall switch, sensor
-
Model Number:
-
ST02E
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Theory:
-
Infrared motion sensor
-
Output:
-
220V
-
Product name:
-
Infrared motion sensor
-
color:
-
white
-
material:
-
PC(UV proof)+Glass
-
qty of wire connnections:
-
2 wire
-
Warranty:
-
3 Years
-
Detection distance:
-
max.9m(<24℃)
-
Ambient light:
-
<3-2000lux
-
Installation height:
-
1-1.8m
-
Time delay:
-
10s-7min

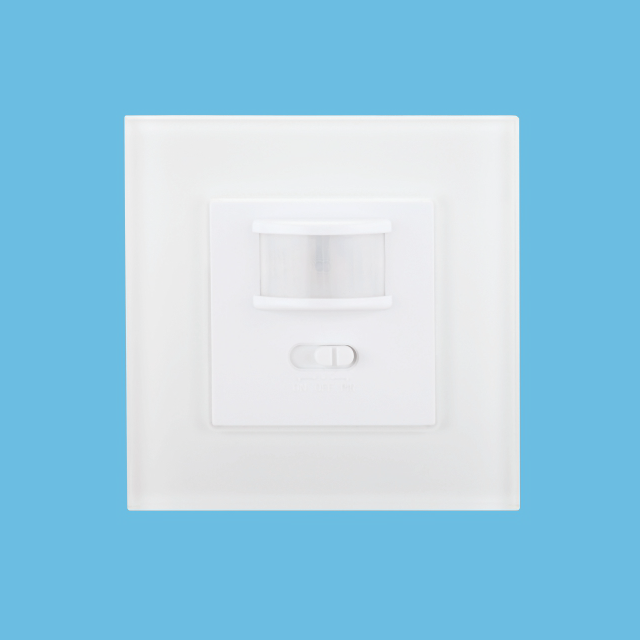

Welcome to use ST02E Infrared motion sensor!
Hot New Products Indoor Small Wall Mount 220V ST02E LED PIR detector motion sensor smart light switch
The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source: 220-240V/AC Detection Range: 160°
Power Frequency: 50/60Hz Detection Distance: 9m max(<24℃)
Ambient Light: <3-2000LUX (adjustable) Working Temperature: -20~+40℃
Time Delay: Min.10sec±3sec Working Humidity: <93%RH
Max.7min±2min Power Consumption: approx 0.5W
Rated Load: Max.500W(incandescent lamp) Installation Height: 1-1.8m
200W(energy-saving lamp) Detection Moving Speed: 0.6-1.5m/s
FUNCTIONS:
Ø Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
Ø Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
Ø The switch: “ON”,“OFF”,“PIR”.
CONNECTION:
Ø Unload the faceplate of sensor and adjust the time and LUX knob.(refer to figure 1)
Ø Loose the screws in the connection terminal, and then connect the power to connection terminal of sensor according to connection-wire diagram.
Ø If you want to install it in circular hole, put the sensor into the hole and tighten the splay bolt on both sides (refer to figure 2). If you want to install in quadrate hole, put the sensor into the hole, fix the screw through the mounting hole (refer to figure 3).
Ø Install back the faceplate, switch on the power and then test it.
CONNECTION-WIRE DIAGRAM: (See the below figure)
PRODUCTION CAPACITY:
Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.
CERTIFICATE:
The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification .
