Quick Details
-
Brand Name:
-
GELGOOG
-
Voltage:
-
380/220V
-
Power:
-
8/10kw
-
Dimension(L*W*H):
-
4100*950*1350mm
-
Weight:
-
330 KG
-
Host Power:
-
0.4kw
-
Cutter Power:
-
0.2KW
-
Rotating speed:
-
1-2.5r/min
-
Size of the Sheet ( Max.):
-
200mm
-
Thickness of the Sheet:
-
0.3-2.0mm
Quick Details
-
Production Capacity:
-
500-1000pcs/h
-
Type:
-
Spring Roll Wrapper
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GELGOOG
-
Voltage:
-
380/220V
-
Power:
-
8/10kw
-
Dimension(L*W*H):
-
4100*950*1350mm
-
Weight:
-
330 KG
-
Host Power:
-
0.4kw
-
Cutter Power:
-
0.2KW
-
Rotating speed:
-
1-2.5r/min
-
Size of the Sheet ( Max.):
-
200mm
-
Thickness of the Sheet:
-
0.3-2.0mm
Products Description

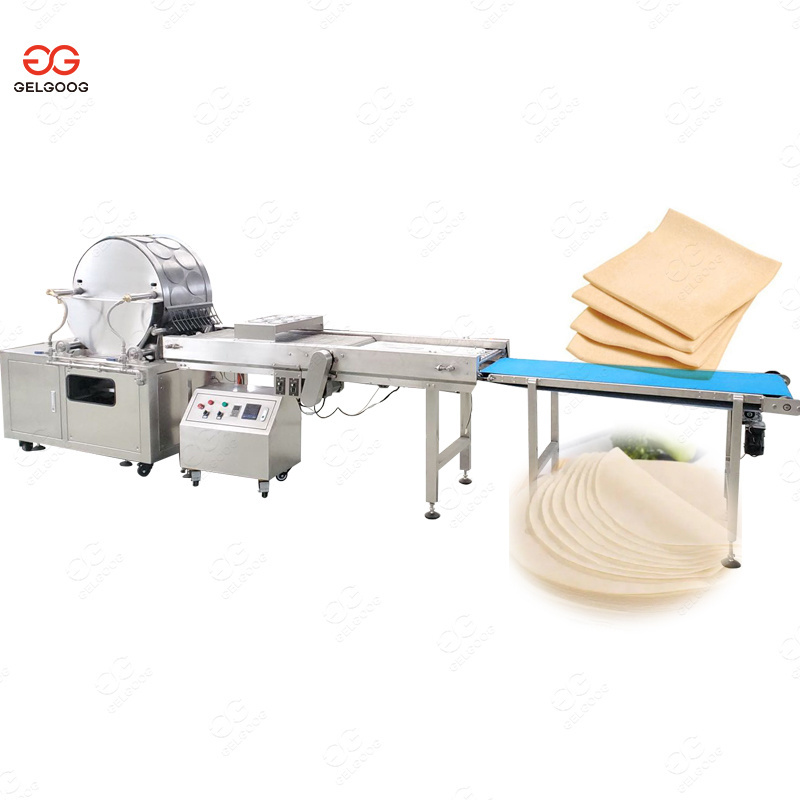

Spring Roll Wrapper Making Machine Introduction
This spring roll wrapper machine is a professional food processing machine for automatically producing spring roll wrappers. The output is varied, with small, medium and large equipment.
|
Model
|
GG-3620
|
GG-5029
|
GG-8045
|
GG-12060
|
|||
|
Voltage
|
380/220V（50/60HZ）
|
380/220V（50/60HZ）
|
380/220V（50/60HZ）
|
380/220V（50/60HZ）
|
|||
|
Dia. of heating Cylinder
|
400mm
|
500mm
|
800mm
|
1200mm
|
|||
|
Power
|
8/10kw or gas
|
18kw or gas
|
40kw or gas
|
59kw or gas
|
|||
|
Host Power
|
0.4
|
0.4
|
0.4
|
0.75
|
|||
|
Cutter Power
|
0.2
|
0.2
|
0.2
|
0.2
|
|||
|
Belt power
|
-
|
0.36
|
0.36
|
0.55
|
|||
|
Capacity
（Sheet Dia/Width 150mm） |
500-1000pcs/h
|
1000-1500pcs/h
|
3500pcs/h
|
9000pcs/h
|
|||
|
Dimension
|
4100*950*1350mm
|
5200*950*1350mm
|
6200*1100*1600mm
|
6500*1300*2300mm
|
|||
|
Rotating speed
|
1-2.5r/min
|
1-2.5r/min
|
1-3r/min
|
1-3r/min
|
|||
|
Weight
|
330kg
|
520kg
|
1000kg
|
1750kg
|
|||
|
Size of the Sheet ( Max.)
|
200mm
|
300mm
|
450mm
|
600mm
|
|||
|
Thickness of the Sheet
|
0.3-2.0mm
|
0.3-2.0mm
|
0.3-2.0mm
|
0.3-2.0mm
|
|||
|
Note
|
Capacity will vary based on spring roll sheet size,
the actual capacity is subject to the quotation list.
|
|
|
|
|||
Final Product of Spring Roll Wrapper Making Machine
This automatic spring roll wrapper maker is suitable for making spring roll wrappers, egg roll pastry, crepes, lumpia wrappers,spring roll pastry, filo wrapper, pancakes and other similar products.
Working Flow of Spring Roll Wrapper Making Machine
Just prepare the ingredients, mix them into a smooth batter, and then the spring roll wrapping machine will automatically complete the filling, baking, cutting, counting, and stacking. Finally, the baked spring roll wrappers are nicely stacked in piles, ready to pack, freeze, and sell them at any time.
Feature of Spring Roll Wrapper Making Machine
1. Simple operation: turn on the machine switch, the machine will automatically sizing, bake to form. The cakes produced can be sold directly. Save time and effort.
2. The machine is of reasonable design, compact structure, easy to move and does not occupy space. And easy to maintain and clean.
3. It is made of stainless steel. Bearing assembly, no oil, no rust, no burr on the cut surface. The material is safe, hygienic
and durable.
4. Intelligent PLC processor, touch screen operation. Chinese and English operating system, equipped with automatic fault alarm system.
5. The spring roll wrapper making machine adopts frequency conversion speed regulation, running smoothly, ensuring the speed and good cooking effect of spring roll wrappers.
6. The power is diversified, and various energy sources such as liquefied gas heating or electric heating can be used for
heating. Support customized service.
2. The machine is of reasonable design, compact structure, easy to move and does not occupy space. And easy to maintain and clean.
3. It is made of stainless steel. Bearing assembly, no oil, no rust, no burr on the cut surface. The material is safe, hygienic
and durable.
4. Intelligent PLC processor, touch screen operation. Chinese and English operating system, equipped with automatic fault alarm system.
5. The spring roll wrapper making machine adopts frequency conversion speed regulation, running smoothly, ensuring the speed and good cooking effect of spring roll wrappers.
6. The power is diversified, and various energy sources such as liquefied gas heating or electric heating can be used for
heating. Support customized service.
