Quick Details
-
Brand Name:
-
Suntree
-
Model Number:
-
SQ5
-
Rated Current:
-
3200A
-
Rated current(In):
-
1000A-3200A
-
Rated Voltage:
-
Max 400V
-
Catagory:
-
PC grade
-
Changeover action:
-
When Main power voltage reach 500V or above,
-
Certificate:
-
CE Rohs
-
Indicator:
-
With Indicate light for Main power, and standby power.
-
Web:
-
www.chinasuntree.com
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
SQ5
-
Rated Current:
-
3200A
-
Rated current(In):
-
1000A-3200A
-
Rated Voltage:
-
Max 400V
-
Catagory:
-
PC grade
-
Changeover action:
-
When Main power voltage reach 500V or above,
-
Certificate:
-
CE Rohs
-
Indicator:
-
With Indicate light for Main power, and standby power.
-
Web:
-
www.chinasuntree.com
Products Description

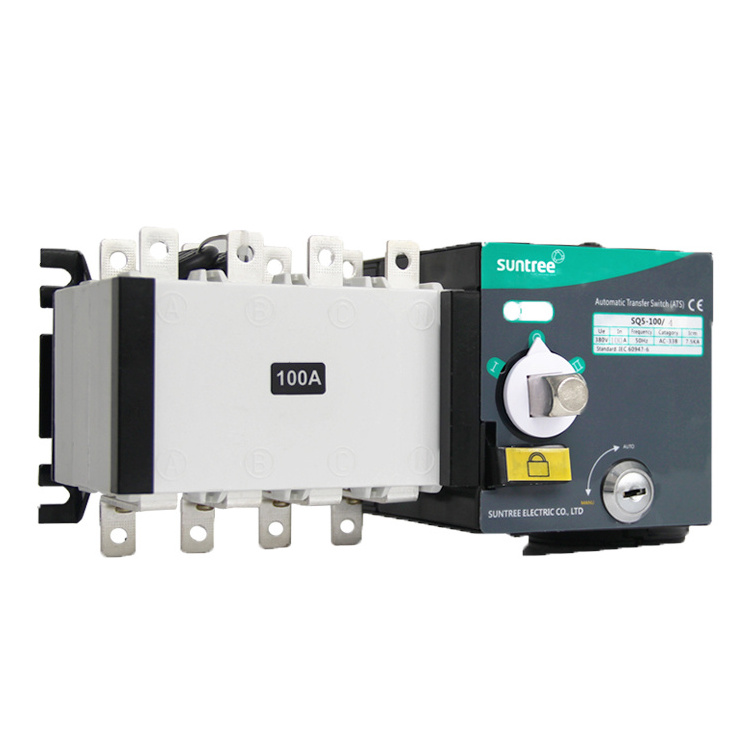

SQ5
series automatic transfer switch is mainly used for AC SCHz, rated voltage 400V, contro rated vo tage 220v, rated current 16 to 3200A in the disributiono or motor network, one master or oreequpment switching system and the mains and power generation group Load switching. It can also be used to isolate and disconnect circuits and circuits from infrequently.
Products are widely used in fire, hospitals, banks, high-rise buildirgs and other power transmission and distribution systems and automaticn systems that do not allow power outages.
Why Choose Us
Product Paramenters
|
Product Category
|
|
|
Automatic transfer switch
|
|
|
|
|||||
|
Product name
|
|
|
SQ5
|
|
|
|
|||||
|
Rated current In(A)
|
|
|
100A
|
160A
|
250A
|
630A
|
|||||
|
Rated insulation voltage Ui(V）
|
|
|
500
|
500
|
500
|
500
|
|||||
|
Medium strength(M)
|
|
|
3000
|
5000
|
5000
|
5000
|
|||||
|
Rated impulse withstand voltage Uimp kV
|
|
|
6
|
8
|
8
|
12
|
|||||
|
Rated working current (A)
|
400V
|
AC-31
|
100
|
160
|
250
|
630
|
|||||
|
|
|
AC-33
|
80
|
160
|
250
|
630
|
|||||
|
|
|
AC-35
|
100
|
160
|
250
|
536
|
|||||
|
|
200V
|
DC-31
|
100
|
160
|
250
|
630
|
|||||
|
|
|
DC-33
|
80
|
160
|
250
|
500
|
|||||
|
|
|
DC-35
|
100
|
125
|
200
|
500
|
|||||
|
Motor power (400V)KW
|
|
|
32
|
80
|
132
|
280
|
|||||
|
Rated breaking capacity (A Rms) AC33 380V
|
|
|
800
|
1000
|
1600
|
3200
|
|||||
|
Rated turn-on capability (A Rms) AC33 380V
|
|
|
1000
|
1250
|
2000
|
4000
|
|||||
|
Rated short-circuit capability Icm(kA peak)
|
|
|
8
|
12
|
17
|
30
|
|||||
|
Mechanical life(number of cycles)
|
|
|
6000
|
6000
|
4000
|
2000
|
|||||
|
Electrical
|
cosΦ=0.65 AC33
|
|
2000
|
1000
|
1000
|
500
|
|||||
|
transfer time
|
Ⅰ-0-Ⅱ or Ⅱ-0Ⅰ (S)
|
|
1.0
|
1
|
1.1
|
1.2
|
|||||
|
|
Ⅰ-0 or Ⅱ-o(S)
|
|
0.5
|
0.6
|
0.7
|
0.8
|
|||||
|
Electrical control energy consumption
|
24V(DC)(W)
|
|
25
|
75
|
75
|
90
|
|||||
|
|
220V(AC)(W)
|
|
25
|
75
|
75
|
90
|
|||||
|
Operating force distance(Nm)
|
|
|
12
|
19
|
26
|
39
|
|||||
|
Ambient temperature
|
|
|
The upper limit is +40C,the average value does not exceed+35C within 24 hours; the lower limit is-5C
|
|
|
|
|||||
|
altitude
|
|
|
The altitude of the installation site does not exceed 2000m
|
|
|
|
|||||
|
Installation Environment
|
|
|
No explosive atmosphere environment. No rain intrusion environment
|
|
|
|
|||||
switch with three poles (three pole +switchable neutral pole) and four pole products
Can be divided into: 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A. 16CA, 200A, 225A.250A, 315A350A, 40DA, 450A 500A, 630A, 800A, 1000, 1250A, 1600A , 2000A, 2500A,3200A, 27 current levels.
