Quick Details
-
Application:
-
chemical
-
Weight (KG):
-
50
-
Power (kW):
-
1
-
Dimension(L*W*H):
-
350*345*1000
-
Product name:
-
Glass Ultrasonic Extraction Homogenizer Machine for New Material
-
Working frequency:
-
20-25kHz
-
Ultrasonic power:
-
20-1000(W)
-
Double layer reactor capacity:
-
5L
-
Amplitude transformer diameter:
-
dia 30
-
Operating voltage:
-
220V / 110V / 120V / 230V
-
Ultrasound time:
-
0.1-99.9S
-
Power setting:
-
1-99%
-
Actual temperature measurement:
-
yes
-
Stirring power:
-
60W
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NANBEI
-
Model Number:
-
NB-5T
-
Application:
-
chemical
-
Weight (KG):
-
50
-
Power (kW):
-
1
-
Dimension(L*W*H):
-
350*345*1000
-
Product name:
-
Glass Ultrasonic Extraction Homogenizer Machine for New Material
-
Working frequency:
-
20-25kHz
-
Ultrasonic power:
-
20-1000(W)
-
Double layer reactor capacity:
-
5L
-
Amplitude transformer diameter:
-
dia 30
-
Operating voltage:
-
220V / 110V / 120V / 230V
-
Ultrasound time:
-
0.1-99.9S
-
Power setting:
-
1-99%
-
Actual temperature measurement:
-
yes
-
Stirring power:
-
60W

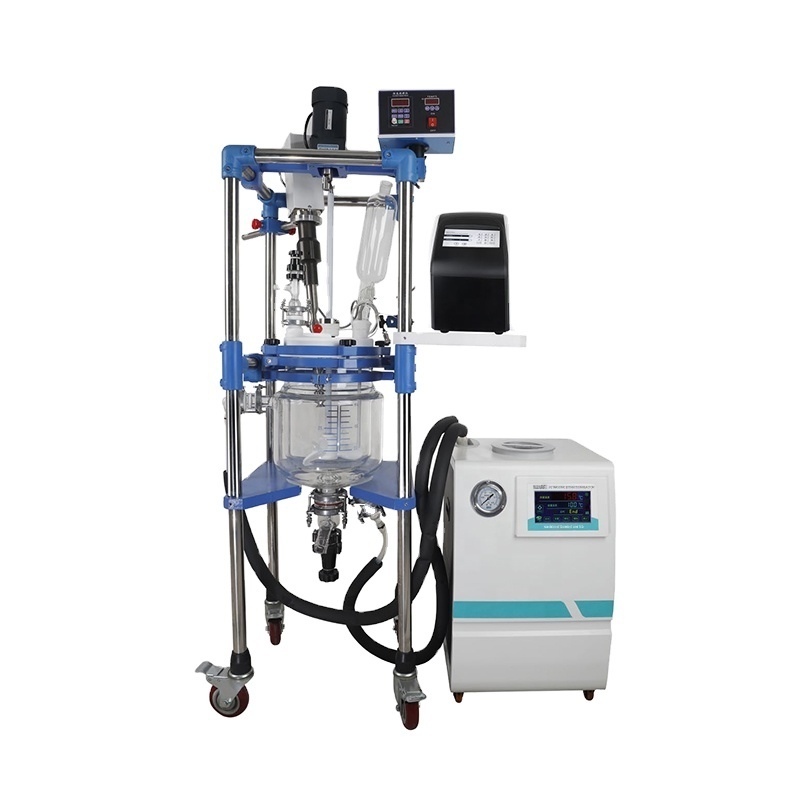

Glass Ultrasonic Extraction Homogenizer Machine for New Material
Products Description
Ultrasonic Extraction Homogenizer
NB-T series ultrasonic extraction reactor is a kind of equipment that uses strong ultrasound to produce cavitation, crushing and emulsification in solids and liquids, and extracts substances from material cells by adding various reagents according to reaction conditions under temperature control and stirring.
Ultrasonic extraction reactors are widely used for teaching, scientific research, and production in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, medicine, and pharmaceuticals.
Product Paramenters
|
Model
|
NB-5T
|
NB-10T
|
NB-15T
|
NB-30T
|
NB-50T
|
|
Working frequency
|
20-25kHz
|
20-25kHz
|
20-25kHz
|
20-25kHz
|
20-25kHz
|
|
Ultrasonic power
|
20-1000（W）
|
20-1200(W)
|
200-1500(W)
|
200-1800(W)
|
250-2400(W)
|
|
Double layer reactor capacity
|
5L
|
10L
|
15L
|
30L
|
50L
|
|
Amplitude transformer diameter
|
Φ30
|
Φ30
|
Φ30
|
Φ50
|
Φ50
|
|
Operating voltage
|
220V
|
220V
|
220V
|
220V
|
220V
|
|
Ultrasound time
|
0.1-99.9S
|
0.1-99.9S
|
0.1-99.9S
|
/
|
/
|
|
Gap time
|
0.1-99.9S
|
0.1-99.9S
|
0.1-99.9S
|
/
|
/
|
|
Total time
|
1-999min
|
1-999min
|
1-999min
|
1s-59min59s
|
1s-59min59s
|
|
Power setting
|
1-99%
|
1-99%
|
1-99%
|
1-99%
|
1-99%
|
|
duty ratio
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
/
|
/
|
|
Actual temperature measurement
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Stirring power
|
60W
|
60W
|
90W
|
120W
|
120W
|
|
Stirring speed
|
10-600r/min
|
10-600r/min
|
10-600r/min
|
10-600r/min
|
10-600r/min
|
|
Support
|
stainless steel
|
stainless steel
|
stainless steel
|
stainless steel
|
stainless steel
|
|
Additive volumetric flask
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Liquid filling/draining port
|
yes/yes
|
yes/yes
|
yes/yes
|
yes/yes
|
yes/yes
|
|
Refrigeration equipment
|
DLK-5003
|
DLK-5007
|
DLK-5010
|
DLK-5010
|
DLK-5010
|
Feature
Ultrasonic Extraction Homogenizer
Accurate temperature control: temperature measurement function and accurate temperature control;
Flexible parameters: ultrasonic time, power, and stirring speed can be set freely within the range;
Wide application scope: equipped with different types of reactors, it can meet all laboratory needs;
Intelligent: Combined with software and hardware technologies of microcomputer control, frequency selection, temperature measurement, and protection.
Application :
Cosmetics industry: used to extract medicine essence and refine particles to achieve dispersion and emulsification effects;
Biopharmaceuticals: used for dispersion of injectable pharmaceutical substances, extraction of herbal medicines, preparation of suspensions, and preparation of vaccines;
Food engineering: used for ultrasonic alcoholization of wine - artificial aging;
Chemical engineering: used for ultrasonic treatment of silicon scale
