Quick Details
-
Warranty:
-
1.5 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YB
-
Model Number:
-
20491
-
Product name:
-
ferrule fitting connection
-
Usage:
-
Hydraulic Drive Field
-
Material:
-
Carbon Steel Stainless Steel
-
Standard:
-
EATON Parker
-
Surface treatment:
-
Zinc Plating
-
Thread:
-
BSP NPT JIC ORFS METRIC
-
Color:
-
White or yellow
-
Size:
-
Standard Size or customized
-
Delivery time:
-
Mass Production : 15~30 Days
-
Package:
-
Neutral Package
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Equal
-
Head Code:
-
Hexagon
-
Warranty:
-
1.5 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YB
-
Model Number:
-
20491
-
Product name:
-
ferrule fitting connection
-
Usage:
-
Hydraulic Drive Field
-
Material:
-
Carbon Steel Stainless Steel
-
Standard:
-
EATON Parker
-
Surface treatment:
-
Zinc Plating
-
Thread:
-
BSP NPT JIC ORFS METRIC
-
Color:
-
White or yellow
-
Size:
-
Standard Size or customized
-
Delivery time:
-
Mass Production : 15~30 Days
-
Package:
-
Neutral Package

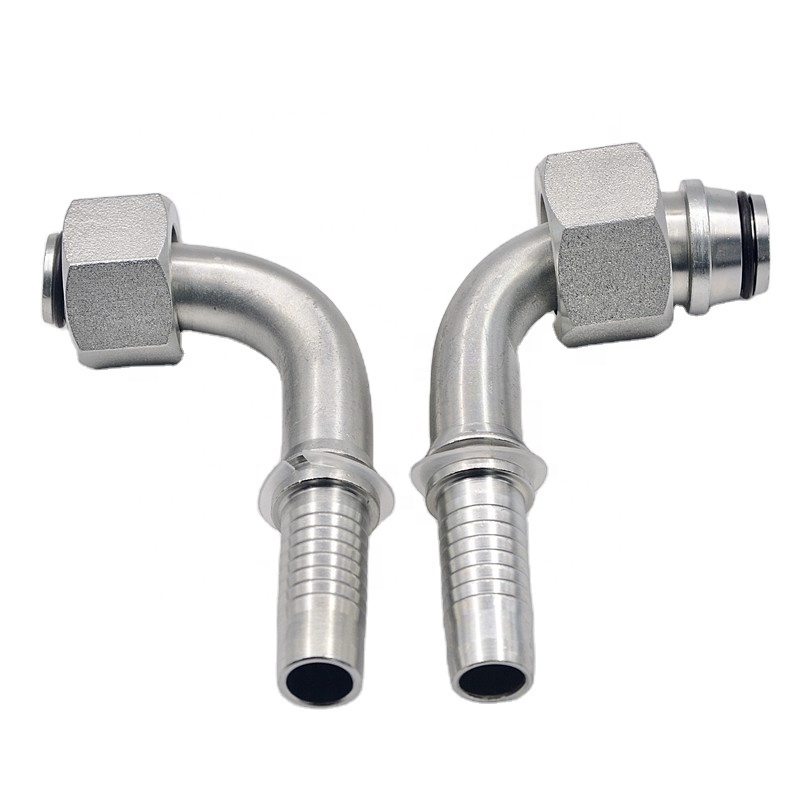

Hydraulic Hose Metric Fitting
|
1. Material
|
Carbon steel , Stainless steel etc.
|
|
2. Color
|
Silver or Yellow
|
|
3. Thread Size
|
M12*1.5 , M14*1.5 , M16*1.5 , M18*1.5 , M20*1.5 , M22*1.5 , M24*1.5 , M26*1.5 , M27*1.5 , M30*2 , M36*2 , M42*2 , M45*2 , M52*2
|
|
4.Hose Bore
|
DN 5 -- DN 51 or 3/16'' -- 2''
|
|
5. OEM Accepted
|
Yes
|
|
6. Certificate Available
|
ISO9001:2008
|
|
7. Type
|
elbow , tee , union , connector , coupling , cross , etc
|
|
8. Technology
|
CNC Machining
|
|
9.Surface Treatment
|
Trivalent zinc plus closed , trivalent chromium zinc , chrome plate , zn-ni , etc
|
|
10.Salt Spray Test
|
36 hours , 72 hours , 144 hours , 200 hours , 1000 hours ,etc
|
|
11.Medium
|
water , oil , gas , etc
|
|
12.Application
|
Use with Braided/Spiral Hoses , Physical Construction , Hydraulic Installation , Auto Parts
|
Application Field
Zhejiang Yong Bang Machinery Co.,Ltd. is the one with years of professional experience of manufacturing hydraulic accessories products as well as with mature production technology. Its main products, including a variety of three-piece hydraulic device, adapters,flanges and hydraulic ancillary products.The company has a number of high-quality, high tech professional designers and workforce, adopts profession also perform strict product testing and inspection, and provides a reliable guarantee for our customers in terms of quality. We would like to provide you with the high quality products, affordable prices, and wholeheartedly service.
We sincerely wish to cooperate with you and create a better future!
Production Process
Strictly follow the rules and regulations in the production process, and the product is packaged after inspection.
Our main products are Ferrule , Hydraulic fittings , Hydraulic hose fittings , Hydraulic adapter , Hydrualic connections , Hydraulic 3-piece suit , Union tee , Union cross , etc
1) Ferrule , matched with many kinds of pipes such as SAE , DIN , EN , GB etc
2) Metric Fitting
Flat Seal Fitting , Mulit-seal Fitting , spherical seal Fitting , 60° Cone seal Fitting , 74° cone seal Fitting , 24°cone O-ring L.T. Fitting , 24°cone O-ring H.T. Fitting , JIS 60° Cone Seal Fitting, Standpipe Fitting , Japan Metric Fitting etc;
3) British Pipe Fitting
JIS BSP 60° Cone seal Fitting , BSPT Fitting, BSP multiseal Fitting , BSP flat Seal Fitting , BSP O-ring Seal Fitting
4) Americal Pipe Fitting
NPT Fitting , JIC 74°Cone Seal Fitting , NPSM 60°Cone Seal Fitting , ORFS Flat Seal Fitting ,
SAE O-ring Seal Fitting
5)One piece fitting
JIC , BSP , Metric , Flange
6) Banjo & Bolt
Metric Banjo , BSP Banjo , Metric Bolt , Bsp Bolt
7) Flange
SAE Code 62 Flange , SAE Code 61 Flange，CAT Flange
8) Double Ended Adapter
9) Metric Transition Adapter
10) British Transition Adapter
11)American Transition Adapter
12)Other Adapter
,
Note: Special dimension and other standard fitting can be customized, OEM/ODM is welcomed.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory,
is one with years of professional experience of manufacturing hydraulic accessories products as well as with mature production technology.
Q:
How can you ensure your product quality?
A: We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample.
Q: Do you offer hydraulic fitting OEM service and can you produce as our drawings?
A: Yes. We offer hydraulic fitting OEM service and your designed drawings.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: What's your delivery time?
A: Generally, we will arrange shipment with 25 days after receiving the deposit. If urgent, we can also meet your requirement.
If you have another question, pls feel free to contact us.
