- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HXJ
-
Type:
-
Character
-
Display Type:
-
16 Characters x 2 Lines
-
Outline Size:
-
122 x 44 x12.3 mm
-
Viewing Area:
-
99 x 24 mm
-
Screen Color:
-
Yellow-Green/Blue/Gray
-
Backlight Color:
-
Yellow-Green/Green/White/Blue/Orange/Red
-
Driver IC:
-
AIP31066
Quick Details
-
Display Size:
-
122x44 mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HSM1602B
-
Brand Name:
-
HXJ
-
Type:
-
Character
-
Display Type:
-
16 Characters x 2 Lines
-
Outline Size:
-
122 x 44 x12.3 mm
-
Viewing Area:
-
99 x 24 mm
-
Screen Color:
-
Yellow-Green/Blue/Gray
-
Backlight Color:
-
Yellow-Green/Green/White/Blue/Orange/Red
-
Driver IC:
-
AIP31066
Product Description
|
Module No.:
|
HSM1602B
|
|
Display Type:
|
16 Characters x 2 Lines
|
|
Encapsulation:
|
COB
|
|
Outline Size:
|
122 x 44 x12.3 mm
|
|
Viewing Area:
|
99 x 24 mm
|
|
Screen Color:
|
Yellow-Green/Blue/Gray
|
|
Backlight Color:
|
Yellow-Green/Green/White/Blue/Orange/Red
|
|
Backlight::
|
Side LED
|
|
Driver IC:
|
AIP31066
|
|
Connector:
|
Conductive Silicon Rubber
|
|
Pin Number:
|
16
|
|
Interface:
|
8-bit MPU interface
|
|
Driver Condition:
|
1/16 Duty,1/5 Bias
|
|
Viewing Direction:
|
6 O’Clock
|
|
Operating Voltage:
|
5V/3.3V
|
|
Operating Temperature:
|
-20~+70℃
|
|
Storage Temperature:
|
-30~+80℃
|

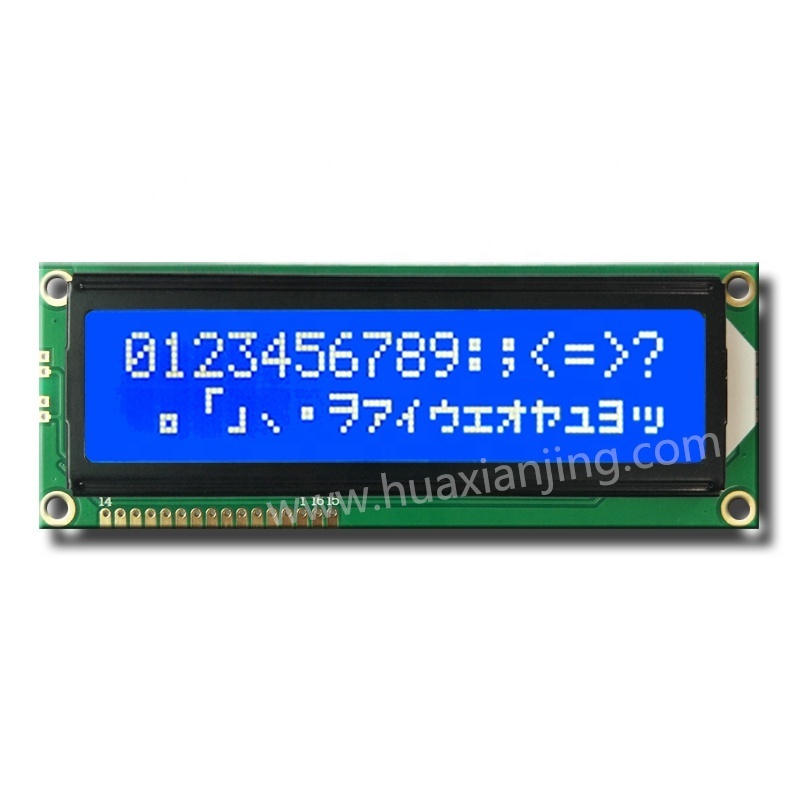

Character LCD 16x2 (5 x 8 dots)
● STN-YG / STN-Blue / STN-Gray /FSTN-Gray
● +3.3V / +5.0V power supply
● Viewing Direction: 6H / 12H
● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
Mechanical Diagram
Interface Pin Description:
|
No.
|
Symbol
|
Function
|
|
1
|
VSS
|
Ground (0V)
|
|
2
|
VDD
|
Supply Voltage for Logic (+5.0V )
|
|
3
|
VO
|
Contrast Adjustment
|
|
4
|
RS
|
Data/Instruction Select
|
|
5
|
R/W
|
Read/Write Select
|
|
6
|
E
|
Enable Signal
|
|
7
|
DB0
|
Data Bus
|
|
8
|
DB1
|
Data Bus
|
|
9
|
DB2
|
Data Bus
|
|
10
|
DB3
|
Data Bus
|
|
11
|
DB4
|
Data Bus
|
|
12
|
DB5
|
Data Bus
|
|
13
|
DB6
|
Data Bus
|
|
14
|
DB7
|
Data Bus
|
|
15
|
LED_A
|
LED Power Supply + (5.0V)
|
|
16
|
LED_K
|
LED Power Supply - (0V)
|
Details Images
