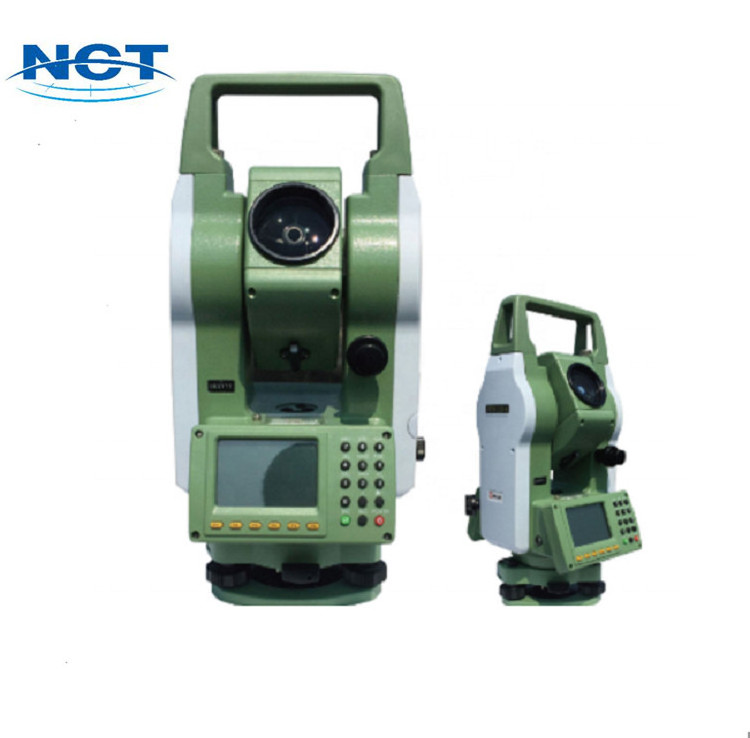

Total station/mini total station/reflectorless total station

Total station/mini total station/reflectorless total station

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1450

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name for Cheap total station:: DTM 622R4 total station

Magnification for Cheap total station:: 30x

Single Prism for Cheap total station:: 2500m

Triple Prism for Cheap total station:: 5000m

Angle measurement accuracy:: 2"

Distance accuracy forCheap total station:: 3mm+2ppm

Reflectorless distance accuracy:: 5mm+2ppm

Display for Cheap total station:: LCD,Four lines,digital

Weight for Cheap total station:: 6.5kg

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Dadi

Model Number:: DTM 622R4

Product name for Cheap total station:: DTM 622R4 total station

Magnification for Cheap total station:: 30x

Single Prism for Cheap total station:: 2500m

Triple Prism for Cheap total station:: 5000m

Angle measurement accuracy:: 2"

Distance accuracy forCheap total station:: 3mm+2ppm

Reflectorless distance accuracy:: 5mm+2ppm

Display for Cheap total station:: LCD,Four lines,digital

Weight for Cheap total station:: 6.5kg

Key features:

1. Laser beam focused in non-prism mode for 300m distance.
2. Strong software to help to achieve the measurment.
3. RS232 or USB ports for option.
4. Good laserto protect the eyes of the surveyor.
5. Large LED display.

Specification:

Model	DTM622R4
Distance Measurement Section
Range	Non-prism	400m
	Prism	Single prism:2500m,Three prism:5000m
Accuracy	Non-prism	±(5mm+3ppm.D)
	Prism	±(3mm+2ppm.D)
Unit		m/foot
Disply	Maximum	99999999.999m
	Minimum	0.1mm
Measuring time		Precise model:1s,Track model:0.8s
Number of time Set		1-99
Meteorologic correction		Input the value and correct automatic
Prism constant		Input the value and correct automatic
Angle Measurement Section
Method		Absolute coding
Grating diameter		79mm
Minimum reading		1"
Detection	Horizontal	Diametrical detection
	Vertical	Diametrical detection
Accuracy		2"
Telescope Section
Imaging		Positive
Length		170mm
Effective aperture		48mm
Magnification		30x
Angle of version		‘1.5°
Distinguish ability		3.5"
Minimum focus distance		1.5m
Compensor
System		Double axis photoelectric tilt sensor
Working range		’±3′
Distinguish ability		1"
Display Section
Type		Double sides,240*160 LCD Display
Data Transmission
Port		USB,RS-232C
Capacity		40,000data at least
Others
Plummet		Optical or Laser plummet
Power		DC7.4V,4000mAh
Continuous working time		8 h fordistance measurement, 20h for angle measurement
Size		180175355mm
Weight		6.5KG
Working temperature		‘-20°C-50°C

Product Display:
