Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oem&odm
-
Model Number:
-
XH-365TS
-

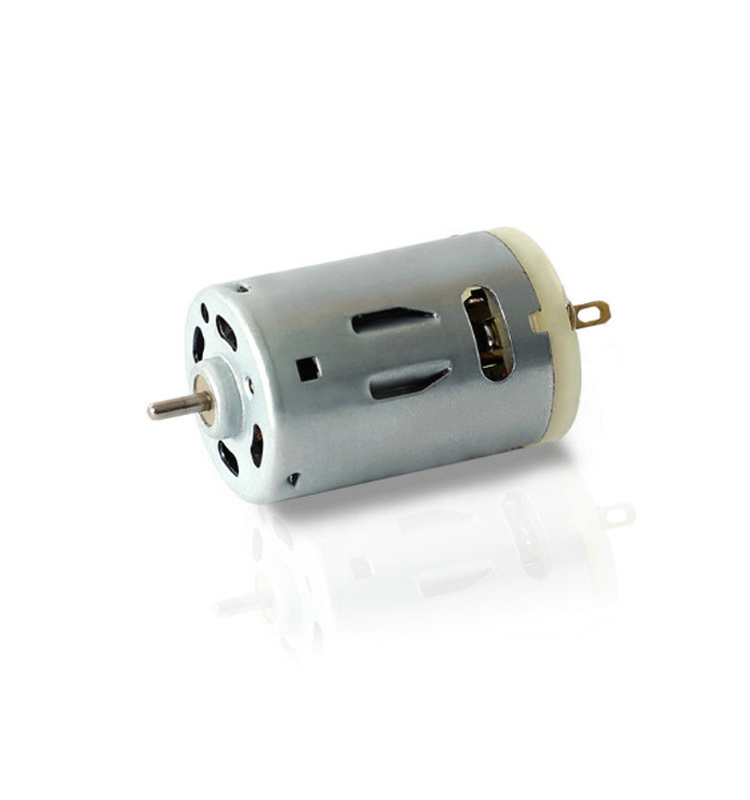

Product Name:
-
RS 365 DC MOTOR
-
Motor type:
-
brush dc motor
-
Rated Voltage:
-
12v 24v
-
Color:
-
silver
-
Diameter of shaft:
-
Dia2.3mm
-
End bell:
-
metal
-
Material:
-
stainless steel+plastic
-
Noise:
-
<65dB
-
Shaft shape:
-
D,flat,round,and hexagon axis
-
Rated Speed:
-
maxmium 13800rpm
Quick Details
-
Speed(RPM):
-
7300
-
Continuous Current(A):
-
0.2
-
Efficiency:
-
IE 1
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oem&odm
-
Model Number:
-
XH-365TS
-
Product Name:
-
RS 365 DC MOTOR
-
Motor type:
-
brush dc motor
-
Rated Voltage:
-
12v 24v
-
Color:
-
silver
-
Diameter of shaft:
-
Dia2.3mm
-
End bell:
-
metal
-
Material:
-
stainless steel+plastic
-
Noise:
-
<65dB
-
Shaft shape:
-
D,flat,round,and hexagon axis
-
Rated Speed:
-
maxmium 13800rpm
Product Description
Product type
Our company produces pump,steel motor,planetary motor, straight tooth motor,DC motor,worm reducer motor,linear actuator.
|
|
Scope of voltage
|
Working voltage
|
Maximum Efficiency
|
|
|
|
|
|
|
||||||
|
|
|
|
Speed
|
Current
|
Speed
|
Current
|
Torque
|
Efficiency
|
Powerr
|
||||||
|
|
v
|
v
|
RPM
|
A
|
RPM
|
A
|
g.cm
|
%
|
W
|
||||||
|
XH-365-12138
|
12-36
|
12
|
13800
|
0.61
|
11000
|
3.4
|
350
|
51.2
|
40.8
|
||||||
|
XH-365-24687
|
24-36
|
24
|
6870
|
0.261
|
5330
|
1.8
|
253.4
|
57.6
|
43
|
||||||
|
|
Maximum Power
|
|
|
|
|
Stall
|
|
|||||
|
|
Speed
|
Current
|
Torque
|
Efficiency
|
Power
|
Current
|
Torque
|
|||||
|
|
RPM
|
A
|
g.cm
|
%
|
W
|
A
|
g.cm
|
|||||
|
XH-365-12138
|
5521
|
6.8
|
417.5
|
40.5
|
81.6
|
7.42
|
552
|
|||||
|
XH-365-24687
|
3440
|
3.9
|
319
|
40.2
|
93.6
|
5.70
|
436.2
|
|||||
Details of Products
1)Copper-core motor
Three layer of high-density molecular paint,it keeps the dust out,high temperature resistance.
2)Powerful magnet
3)Ball bearing
it can reduce the friction and supply power.
1)Copper-core motor
Three layer of high-density molecular paint,it keeps the dust out,high temperature resistance.
2)Powerful magnet
3)Ball bearing
it can reduce the friction and supply power.
Customized spares parts
1)voltage,current,speed and torque.
2)Shape of shaft:"D" "Round" "Flat" "Hexagon Axis" "Square axis".
3)Bearing:ball bearing.
4)Materials of shell:plastic and metal.
5)Tooth form:Spur gear,helical gear.
1)voltage,current,speed and torque.
2)Shape of shaft:"D" "Round" "Flat" "Hexagon Axis" "Square axis".
3)Bearing:ball bearing.
4)Materials of shell:plastic and metal.
5)Tooth form:Spur gear,helical gear.
Company profile
Company profile
Xinhui motor company founded in 2000year,focused R&D service,5QC,20 engineers,200workers,8 production lines,full production facilities,there are available catalog of products as like DC MOTOR,DC REDUCER MOTOR,DC WORM GEAR MOTOR,DC PLANETARY MOTOR,MINI PUMP,BRUSH MOTOR AND BRUSHLESS MOTOR,all items have stocks to samples.
Presently,our models have covered more than 80 countries as like Japan,UK,USA,AU,Korea....
achieved highly praise amony clients.
expecting our energy can radiate all over the world,realize to win-win each other.
Xinhui motor company founded in 2000year,focused R&D service,5QC,20 engineers,200workers,8 production lines,full production facilities,there are available catalog of products as like DC MOTOR,DC REDUCER MOTOR,DC WORM GEAR MOTOR,DC PLANETARY MOTOR,MINI PUMP,BRUSH MOTOR AND BRUSHLESS MOTOR,all items have stocks to samples.
Presently,our models have covered more than 80 countries as like Japan,UK,USA,AU,Korea....
achieved highly praise amony clients.
expecting our energy can radiate all over the world,realize to win-win each other.
Product Lines
Packaging&Shipping
Payment terms
Paypal,Western union,TT,moneygram,TT...
30% in advance,70% balance of payment before shipment.
Shipping
1)we have 20years experienced forwarder(DHL,FEDEX,UPS,TNT...) agency to shipment,so the most competitive price can be supplied if you're prefer.
2)of course,you can select what you appointed courier to shipment
Paypal,Western union,TT,moneygram,TT...
30% in advance,70% balance of payment before shipment.
Shipping
1)we have 20years experienced forwarder(DHL,FEDEX,UPS,TNT...) agency to shipment,so the most competitive price can be supplied if you're prefer.
2)of course,you can select what you appointed courier to shipment
FAQ
RFQ
Q1:what's your MOQ?
A1:100pcs.
Q2:what's you lead time?
A2:generally,5-7days to samples order,7-10days to batches order.
Q2:what's the rpm?
A2Q:1000-20000rpm can be customized
Q2:Can be customized to D shaft?
A2:of course,you can,while you need supply the exactly size to the length of shaft.
Q2:What's your payment terms?
A2:Paypal,TT,and western union,of course,if you're worry about the money of security,it is better select the Alipay.
Q3:what is you lead time?
A3:generally,5-7days to samples order,7-10days to scale order.
Q1:what's your MOQ?
A1:100pcs.
Q2:what's you lead time?
A2:generally,5-7days to samples order,7-10days to batches order.
Q2:what's the rpm?
A2Q:1000-20000rpm can be customized
Q2:Can be customized to D shaft?
A2:of course,you can,while you need supply the exactly size to the length of shaft.
Q2:What's your payment terms?
A2:Paypal,TT,and western union,of course,if you're worry about the money of security,it is better select the Alipay.
Q3:what is you lead time?
A3:generally,5-7days to samples order,7-10days to scale order.
