Quick Details
-
Brand Name:
-
ACCE
-
Voltage:
-
380v 60hz 3phase, 380v 60hz 3phase
-
Dimension(L*W*H):
-
1350*700*1600mm
-
Power (kW):
-
11
-
Weight (T):
-
0.8
-
Product name:
-
Double Shaft Crusher Machine
-
Model:
-
V-EB500
-
Motor:
-
11KW
-
Input rotary speed:
-
21rpm/min
-
Max input torque:
-
4574Nm
-
Blades quantity:
-
24 pieces
-
feeding hole size:
-
700*700*350mm
-
shredder size:
-
490mm
-
shredder height:
-
200mm
Quick Details
-
Max.Production Capacity (kg/h):
-
600
-
Place of Origin:
-
Zhejiang, China
-
Production Capacity (kg/h):
-
300 - 600 kg/h
-
Brand Name:
-
ACCE
-
Voltage:
-
380v 60hz 3phase, 380v 60hz 3phase
-
Dimension(L*W*H):
-
1350*700*1600mm
-
Power (kW):
-
11
-
Weight (T):
-
0.8
-
Product name:
-
Double Shaft Crusher Machine
-
Model:
-
V-EB500
-
Motor:
-
11KW
-
Input rotary speed:
-
21rpm/min
-
Max input torque:
-
4574Nm
-
Blades quantity:
-
24 pieces
-
feeding hole size:
-
700*700*350mm
-
shredder size:
-
490mm
-
shredder height:
-
200mm

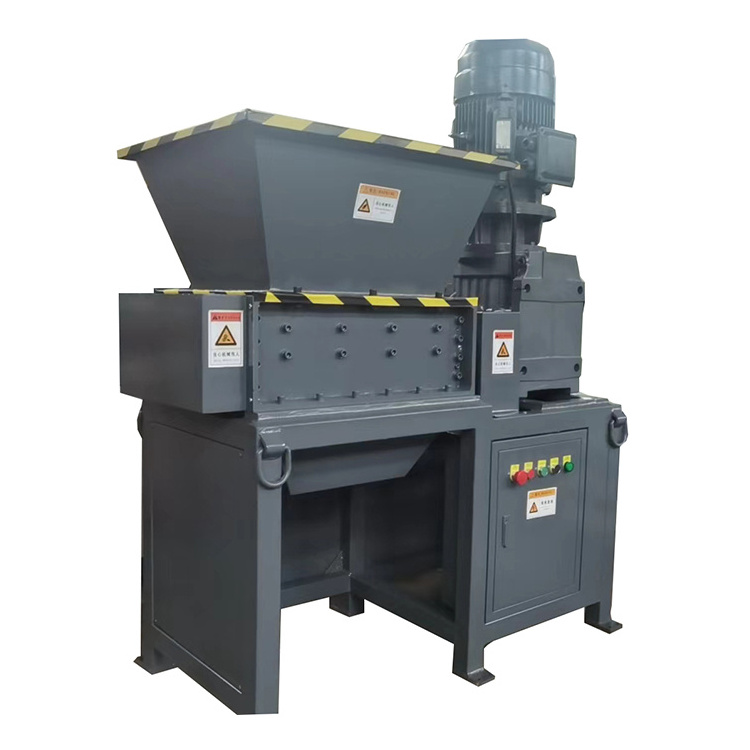

Small Double Shaft Shredder Machine
Product Description
This is a small double shaft shredder machine, it can crush cables, hard disk, copper, aluminum, plastic and so on.
|
Model
|
V-EB180
|
V-EB300
|
V-EB400
|
V-EB500
|
|
Motor
|
1.5KW
|
3KW
|
4KW
|
11KW
|
|
Voltage
|
220v 50hz 1phase
|
3phase/1Phase -Plug
|
380v 60hz 3phase
|
380v 60hz 3phase
|
|
Reduction box
|
K47
|
K77
|
JL3#-12
|
JL4#-12
|
|
Input rotary speed
|
25rpm/min
|
16rpm/min
|
12rpm/min
|
21rpm/min
|
|
Max input torque
|
400Nm
|
1628Nm
|
2919Nm
|
4574Nm
|
|
Input axis diameter
|
Φ35
|
Φ50
|
Φ60
|
Φ70
|
|
Blades details and rigidity
|
Φ90*8 / 9CrSi
|
Φ180*12 / 9CrSi
|
Φ180*15 / 9CrSi
|
Φ200*20 / 9CrSi
|
|
Blades quantity
|
21 pieces
|
24 pieces
|
26 pieces
|
24 pieces
|
|
Feeding hole size
|
180*190mm
|
500*500*300mm
|
600*500*300mm
|
700*700*350mm
|
|
Shredder size
|
280mm
|
450mm
|
420mm
|
490mm
|
|
Shredder height
|
200mm
|
200mm
|
200mm
|
200mm
|
|
Machine size
（L*W*H）
|
590*350*722mm
|
1081*570*1329mm
|
1160*600*1450mm
|
1350*700*1600mm
|
|
Machine weight
|
120KG
|
400KG
|
500KG
|
800KG
|
*
The materials can be processed by shredder machine (difference models used for difference materials. Before order please contact our seller with your raw materials)
The double-shaft shredder is sheared by the blades on the two shafts to meet the requirements of shredding materials.
The size after shredding is related to the thickness of the shredding blade and the number of teeth.
The thinner the blade, the smaller the size of the shredded material, the more the number of cutter teeth, the shorter the length of the shredded material.
Features:
1. The blade holder and blade on the rotor can be disassembled for easy cleaning and maintenance.
2. Each moving knife has 4 cutting edges, which can be rotated 90° after wear to continue to use.
3. The main shaft is driven by the gear reduction box, running smoothly, low noise, large torque.
4. Adopt PLC program control system, can automatically reverse, make the machine run stably.
5. The box body is welded and tempered after welding to eliminate the welding stress.
6. The installation position of moving knife is precisely machined by machining center to ensure that the clearance between each moving knife and fixed knife is the same.
7. The moving tool holder is embedded in the tool shaft with high strength screws, and can prevent welding type after long-term vibration caused by the phenomenon of knife drop.
8. Convenient transportation after tearing, can reduce transportation cost, increase transportation efficiency, convenient secondary processing.
