Quick Details
-
Color:
-
Orange
-
Place of Origin:
-
Henan, China
-
Product name:
-

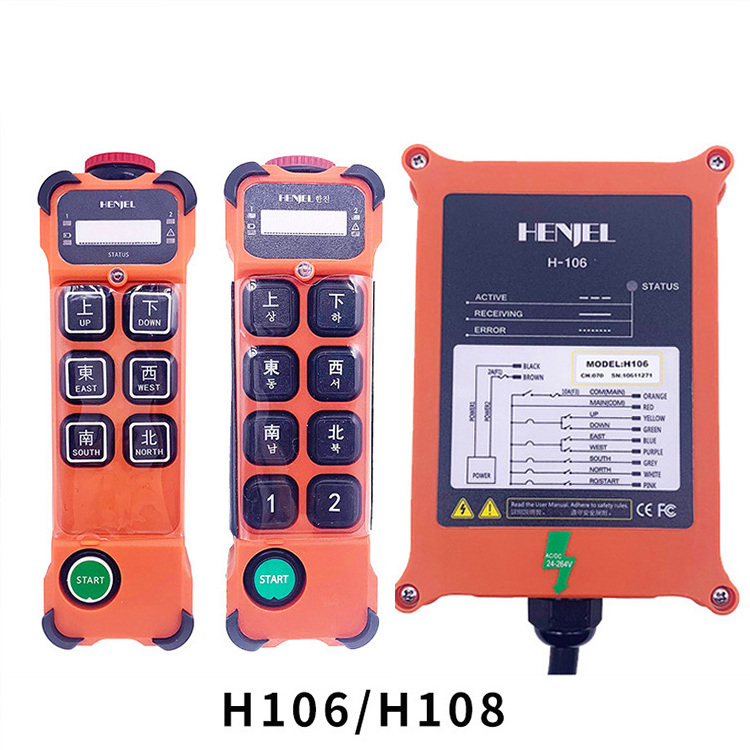

Industrial 2 Speed Button Overhead Wireless Crane Remote Control
-
Number of buttons:
-
6 buttons
-
Waterproof level:
-
IP 65
-
Operating Temper:
-
-35 ℃ ~ + 80 ℃
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Type:
-
wireless
-
Application:
-
Industrial Equipment
-
Power supply:
-
110 ~ 250VAC 50/60HZ
-
shell material:
-
PA6(30% GF)
Quick Details
-
Function:
-
Waterproof, LED indicator light, Anti shock
-
Brand Name:
-
Chong Peng
-
Model Number:
-
H106
-
Color:
-
Orange
-
Place of Origin:
-
Henan, China
-
Product name:
-
Industrial 2 Speed Button Overhead Wireless Crane Remote Control
-
Number of buttons:
-
6 buttons
-
Waterproof level:
-
IP 65
-
Operating Temper:
-
-35 ℃ ~ + 80 ℃
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Type:
-
wireless
-
Application:
-
Industrial Equipment
-
Power supply:
-
110 ~ 250VAC 50/60HZ
-
shell material:
-
PA6(30% GF)
High Quality Universal Industrial 2 Speed Button Overhead Wireless Crane Remote Control For Crane/Hoist/Winch
Production Proces
Click me!
Learn more product details
Technical Parameter
|
Transmitter Specification
|
|
|
Frequency
|
433MHz
|
|
Transmitter RF power
|
less than 10dBm
|
|
Control distance
|
100M
|
|
Power supply
|
LR6(AA)1.5V*2DC3V
|
|
Modulation mode
|
GFSK
|
|
Frequency control
|
PLL
|
|
Antenna impedance
|
50Ω
|
|
Command response time
|
less than 100ms
|
|
Stop command resopnse time
|
less than 100ms
|
|
Average power consumption
|
8mA@DC3V
|
|
Working temperature
|
-10℃--+75℃ (Battery temperature resistance is not considered)
|
|
Net weight
|
285g
|
|
Shell material
|
PA6 (30%GF)
|
|
Levels of protection
|
IP65
|
|
Receiver Specification
|
|
|
Frequency
|
433MHz
|
|
Receiver sensitivity
|
-112dBm
|
|
Control distance
|
100M
|
|
Power supply
|
Low voltage: 24V--264V; High voltage: 110V--460V
|
|
Modulation mode
|
GFSK
|
|
Frequency control
|
PLL
|
|
Antenna impedance
|
50Ω
|
|
Reaction time
|
50ms--100ms
|
|
Contact rating
|
5A@250VAC
|
|
Consume power (stand by)
|
15mA@220VAC
|
|
Working temperature
|
-10℃--+75℃
|
|
Net weight
|
668g
|
|
Shell material
|
PA6 (30%GF)
|
|
Levels of protection
|
IP65
|
