Quick Details
-
Brand Name:
-
GR
-
Voltage:
-
220V/380V
-
Power:
-
Depends
-
Dimension(L*W*H):
-
Depends
-
Weight:
-
2800-4500kg
-
Product name:
-
Facial tissue machine kleenex facial tissue folding converting machine
-
Paper diameter:
-
1200*1000mm-1450mm(can customize)
-
Vacuum system:
-
11kw 15kw
-
Paper core inner diameter:
-
76.2mm
-
Broken way:
-
Face knife
-
Feature:
-
High quality
-
Color:
-
Optional
-
Customize service:
-
Available
-
Relate product:
-
Paper making machine
-
Company type:
-
Factory,manufacturer
Quick Details
-
Production Capacity:
-
0-100m/min
-
Processing Type:
-
Paper product making machinery
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GR
-
Voltage:
-
220V/380V
-
Power:
-
Depends
-
Dimension(L*W*H):
-
Depends
-
Weight:
-
2800-4500kg
-
Product name:
-
Facial tissue machine kleenex facial tissue folding converting machine
-
Paper diameter:
-
1200*1000mm-1450mm(can customize)
-
Vacuum system:
-
11kw 15kw
-
Paper core inner diameter:
-
76.2mm
-
Broken way:
-
Face knife
-
Feature:
-
High quality
-
Color:
-
Optional
-
Customize service:
-
Available
-
Relate product:
-
Paper making machine
-
Company type:
-
Factory,manufacturer
V fold facial tissue paper making machine kleenex facial tissue folding converting machine price
Brief description
V fold facial tissue paper making machine kleenex facial tissue folding converting machine adopt frequency c ontrol configuration Multi touch screen man-machine interface operating system , Independent d eveloped a remote communication service system,can monitor at any time operation of the machine;the synchronous belt drive b efore and after the transmission speed ratio machine,makes the equipment suitable for a varie t y of paper The quality and e fficiency are greatly improved.
V fold facial tissue machine features
1. the paper rack with pneumatic paper, stepless speed regulation,adjust different paper tension
2. can be folded according to the needs of different width of the finished product,you can choose to cut or cut
3. according to the need to configure the base alignment function
4. broken paper automatic shutdown system,to avoid paper or broken paper waste
5. before and after the use of traction to move the switch base,the operation is easy and safe
Technical parameter V fold facial tissue paper machine kleenex facial tissue folding converting machine
|
Half finished after the start of specification (mm) |
180- 200 (please specify other specifications) |
|
Double base weight range (GSM) |
Single layer13-18grams(other specifications specified) |
|
The largest paper specification (mm) |
Φ1200*1000-1450mm(please specify other specifications) |
|
Jumbo roll core diameter |
Φ76. 2mm (other size requirements) |
|
Machine speed |
0-100m/min |
|
Host power (KW) |
5.5KW 7.5KW |
|
Vacuum power (KW) |
11KW 15KW |
|
voltage(V) |
380 |
|
Broken way |
Face knife |
|
Whole structure |
The form of wallboard and others tructure |
|
Test paper |
With paper exhausted automatic deceleration stop and paper detection system downtime |
|
Mechanical transmission mode |
Electric drive, toothed chain speed reducer,synchronous belt,flat belt,chain |
|
Base paper of paper system |
Pneumatic automatic paper feeding system |
|
Paper backing |
The 2 floor (please specify) |
|
Folding roll gap |
Adjustable gap between folding rollers |
|
The paper advanced placement system |
Pneumatic whole moving paper outlet bottom plate |
|
Paper out system |
The use of smooth conveyor belt stepless speed auxiliary paper |
|
Overall dimensions(mm) |
6000mm x2000mm-2500mm x2050mm |
|
Machine weight (kg) |
2800kg-4500Kg |
|
Matching items |
|
|
Paper backing |
2-4layer |
|
Embossing |
Steel to steel,steel to plastic |
|
Trimming system |
Vacuum trimming and adsorption system |
|
Common specifications:180/190/195/200/210 |
|

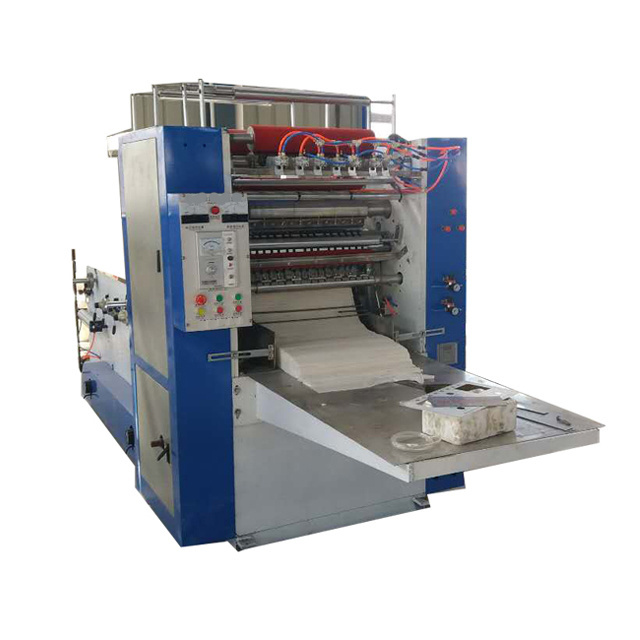

V fold facial tissue machine show
Related paper equipment
Paper rewinding machine,paper cutting machine etc.
1.Wooden package;
2.Standard export package;
3.According to customers' requirements.
