Quick Details
-
Model Number:
-

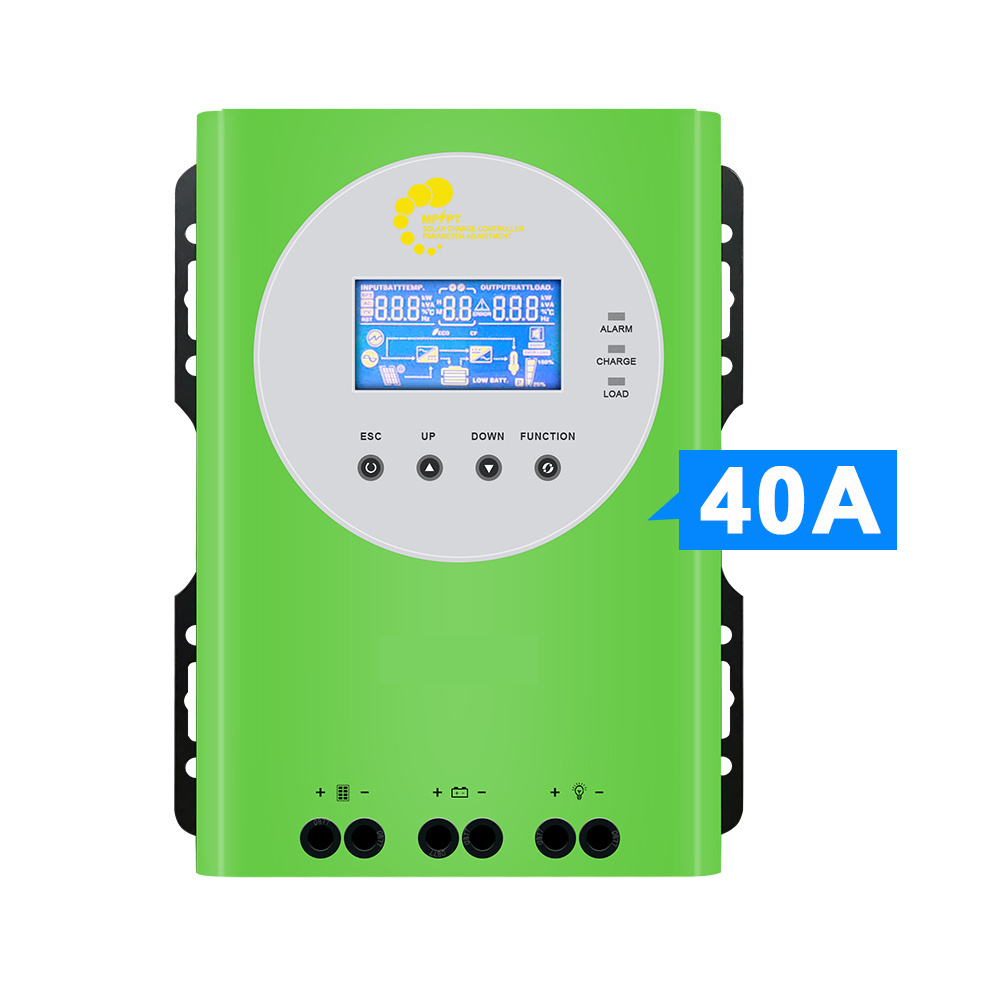

CR-ML40A/60A/80A/100A
-
Work Time (h):
-
Continue
-
Max PV Power:
-
5200W
-
Max PV Voltage:
-
150V
-
Certificate:
-
ISO9001, ISO14001
-
Warranty:
-
1 years
-
Control Mode:
-
Intelligent Control
-
SIZE:
-
219*260*110mm~275*348*109mm
-
Weight:
-
2.8kg~5.2kg
-
Maximum Current:
-
40A/60A/80A/100A
-
Display:
-
LCD Screen
-
Rated Voltage:
-
12V/24V/36V/48V Auto Adapt
-
Communication:
-
WIFI GPRS
-
Charge mode:
-
3-Stage Smart Charge
-
Working temperature:
-
-20℃~+50℃
-
MPPT efficiency:
-
99%
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
CR-ML40A/60A/80A/100A
-
Work Time (h):
-
Continue
-
Max PV Power:
-
5200W
-
Max PV Voltage:
-
150V
-
Certificate:
-
ISO9001, ISO14001
-
Warranty:
-
1 years
-
Control Mode:
-
Intelligent Control
-
SIZE:
-
219*260*110mm~275*348*109mm
-
Weight:
-
2.8kg~5.2kg
-
Maximum Current:
-
40A/60A/80A/100A
-
Display:
-
LCD Screen
-
Rated Voltage:
-
12V/24V/36V/48V Auto Adapt
-
Communication:
-
WIFI GPRS
-
Charge mode:
-
3-Stage Smart Charge
-
Working temperature:
-
-20℃~+50℃
-
MPPT efficiency:
-
99%
12V/24V/36V/48V adaptive
The maximum utilization rate of solar energy can reach 99%
With super fast charging algorithm, efficiency increased by 30%
1.High voltage protection
2.Over load protection
3.Battery reverse connected protection
3.Dustproof
4.Low voltage protection
5.Overheating protection
6.Output short-circuit protection
7.Insect prevention
|
Model
|
ML40A
|
ML60A
|
ML80A
|
ML100A
|
|||
|
System voltage
|
12V/24V/36V/48V(Adaptive)
|
||||||
|
Nominal current
|
40A
|
60A
|
80A
|
100A
|
|||
|
Charging mode
|
MPPT maximum power point tracking
|
||||||
|
Applicable battery type
|
Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery
charging |
||||||
|
Charging method
|
Three stages: constant current, constant voltage, floating charge
|
||||||
|
PV input maximum open circuit voltage (VOC)
|
DC150V
|
||||||
|
Starting time
|
≤10s
|
||||||
|
Dynamic response recovery time
|
≤500us
|
||||||
|
Static power
|
≤1W
|
≤1.2W
|
|||||
|
Overall efficiency
|
≥98.5%
|
≥99.5%
|
|||||
|
System identified voltage
|
12V
|
9~16V
|
|||||
|
24V
|
18~30V
|
||||||
|
48V
|
34~64V
|
||||||
|
Photovoltaic input voltage
|
12V
|
18~145V
|
|||||
|
24V
|
30~145V
|
||||||
|
48V
|
54~145V
|
||||||
|
Solar panel rated input power
|
12V
|
540W
|
800W
|
1040W
|
1300W
|
||
|
24V
|
1080W
|
1600W
|
2080W
|
2600W
|
|||
|
48V
|
2160W
|
3200W
|
4160W
|
5200W
|
|||
|
Load voltage
|
Same as the battery voltage
|
||||||
|
Nominal load current
|
40A
|
60A
|
80A
|
100A
|
|||
|
Load control method
|
Normally on&off mode
|
||||||
|
Load undervoltage protection
|
10.5V*N(N stands for batteries number)Parameters can be adjustable
|
||||||
|
Display
|
HD LCD backlight display
|
||||||
|
Protections
|
Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current
protection |
||||||
|
Working temperature
|
-20℃~+50℃
|
||||||
|
Storage temperature
|
-40℃~+70℃
|
||||||
Packing:
1. Attach the color sticker and label of the controller.
2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.
Main port:
Guangzhou/Shenzhen/Hongkong or as required.
Express Company:
DHL, TNT, UPS, FedEx, etc.
