- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zlzsen
-
Weight:
-
1600 KG
-
Compressor brand:
-
Other
-
Product name:
-
Commercial tube Ice Machine
-
The technical data based on:
-
30℃ambient temp. 20℃water inlet temp.
-
The evaporating temperature:
-
-15℃
-
The condensing temperature:
-
40℃
-
Refrigerant:
-
R404a
-
Power supply:
-
3P/380V/50Hz
-
Cooling Mode:
-
Air Cooling
-
Keyword1:
-
tube Ice Machine
-
Material:
-
Stainless Steel 304
-
Type:
-
Automatic Ice Maker
Quick Details
-
Ice Shape:
-
tube ice
-
Voltage:
-
3P/380V/50Hz
-
Power:
-
11.9-120KW
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zlzsen
-
Weight:
-
1600 KG
-
Compressor brand:
-
Other
-
Product name:
-
Commercial tube Ice Machine
-
The technical data based on:
-
30℃ambient temp. 20℃water inlet temp.
-
The evaporating temperature:
-
-15℃
-
The condensing temperature:
-
40℃
-
Refrigerant:
-
R404a
-
Power supply:
-
3P/380V/50Hz
-
Cooling Mode:
-
Air Cooling
-
Keyword1:
-
tube Ice Machine
-
Material:
-
Stainless Steel 304
-
Type:
-
Automatic Ice Maker

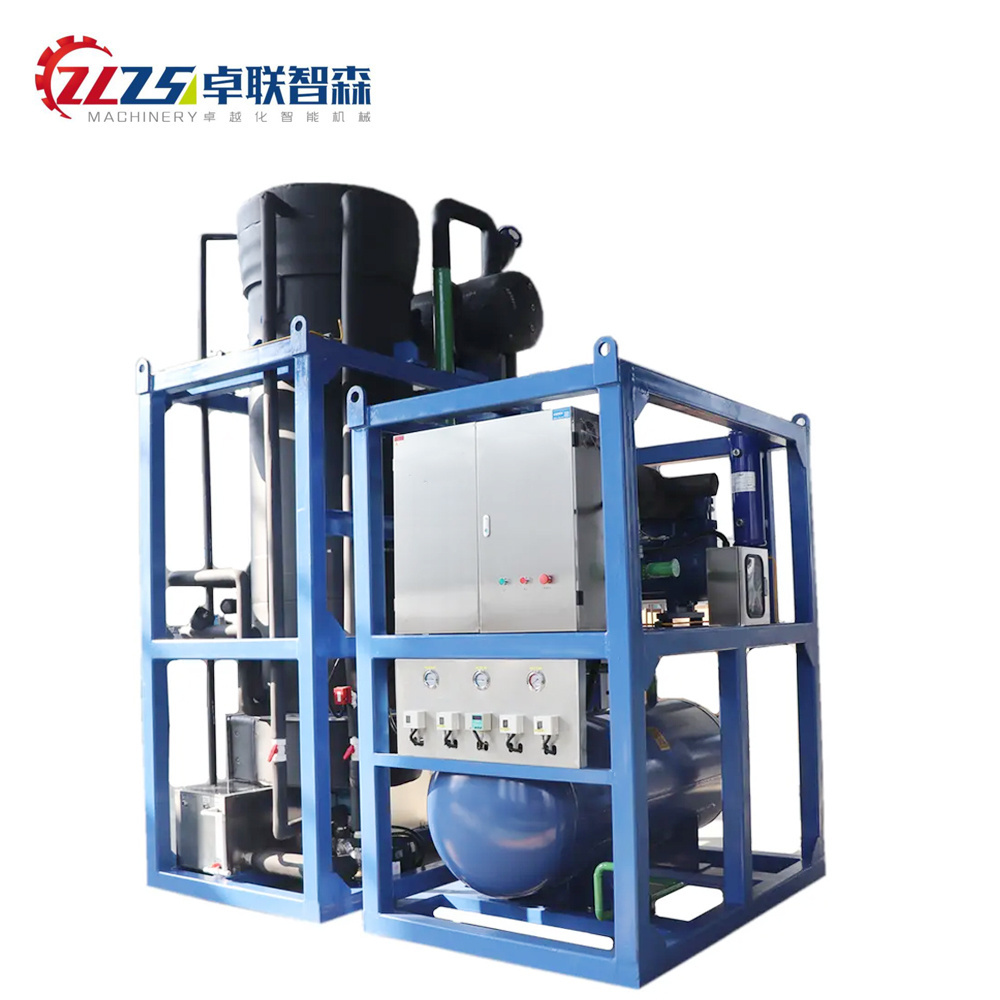

Tube Ice Machine
Tube Ice Machine
Features
* Biter/Copeland refrigeration system guarantee working performance;
* Adopt food grade stainless steel to meet hygiene request;
* Customized ice size and cooling method;
* Advanced cutter and control system,Digital processing time display;
* Good appearance, easy operation and maintenance.
* Tube ice has the most excellent thaw-resistance,suitable for reserving and transportation.
* Adopt food grade stainless steel to meet hygiene request;
* Customized ice size and cooling method;
* Advanced cutter and control system,Digital processing time display;
* Good appearance, easy operation and maintenance.
* Tube ice has the most excellent thaw-resistance,suitable for reserving and transportation.
Tube Ice Machine Parameters
|
Model
|
ZLGB-1T
|
ZLGB-2T
|
ZLGB-5T
|
ZLGB-15T
|
|
The technical data based on
|
30℃ ambient temp 20℃ water inlet temp.
|
30℃ ambient temp 20℃ water inlet temp.
|
30℃ ambient temp 20℃ water inlet temp.
|
30℃ambient temp. 20℃water inlet temp.
|
|
The evaporating temperature
|
-15℃
|
-15℃
|
-15℃
|
-15℃
|
|
The condensing temperature
|
40℃
|
40℃
|
40℃
|
40℃
|
|
Power supply
|
3P/380V/50Hz
|
3P/380V/50Hz
|
3P/380V/50Hz
|
3P/380V/50Hz
|
|
Tube Size(mm)
|
Φ22/29/35/42
|
Φ22/29/35/42
|
Φ22/29/35/42
|
Φ22/29/35/42
|
|
Refrigerant
|
R404A
|
R404A
|
R404A
|
R404A
|
|
Daily Output(Ton/24hrs)
|
1ton
|
2ton
|
5ton
|
15ton
|
|
Cooling Capacity(kw)
|
11.9
|
18.8
|
49.6
|
120
|
|
General Power(kw)
|
6.21
|
8.39
|
22.7
|
60
|
|
Cooling Mode
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
|
Weight(kg)
|
950kg
|
1150kg
|
1600kg
|
1680kg
|
|
Dimension(mm)
|
1440*900*1950 1100*450*870
|
1650*1300*2150 1100*500*870
|
1750*1400*2200 2000*700*1145
|
2400*2100*2250
|
Video
Details Images
Our Advantages
German Technology
Adopting German technology, our evaporator is welded of low temp steel alloy 16MnR. The evaporator is annealed and coated with hard chrome plating layer, which makes its life time as long as 10-13 years.
304 Stainless Steel Material
The ice scraper and shaft are made of stainless steel 304. The ice scraper is a molded part instead of welded part.
More options for customers
DANFOSS, MANEUROP, BITZER, HANBELL and more international brands of compressor can be selected according to the product specifications and customers requirements,to ensure the refrigerating capacity matching and performance ability.
ZLZSEN's Experience And Service
We take pride in our over 30 years of industry experience and in producing high-quality products and providing excellent customer service. Our products are designed and manufactured with the highest quality and efficiency standards in mind. Our equipment is designed to meet the highest hygiene standards to ensure food product safety and health.We have a team of over 150 experienced professionals in our factory who love their work and are dedicated to providing the best
service to our customers. Our production process is carefully managed from start to finish to ensure that each product is
manufactured to the highest quality and durability standards.We have provided mechanical equipment and technical solutions to over 150 food processing plants, meat processing plants, and slaughterhouses.
