Quick Details
-
Fireproof:
-
A Grade
-
Eco-friendly:
-
Green material, 100% no asbestos, asbestos free
-
Space saving:
-
5% room area
-
Windproof:
-
270km/h
-
Soundproof:
-
46dB
-
Anchorage load:
-
150kg
-
Rapid erection:
-
25sqm per day
-
Certificate:
-
CE,ISO, BV, SGS, Invention Patent
Quick Details
-
Place of Origin:
-
Hubei, China
-
Name:
-
Smart villa eco green prefab house decorative siding panel
-
Core material:
-
Eps, cement, (ceramic/ceramsite/ceramicite)
-
Fireproof:
-
A Grade
-
Eco-friendly:
-
Green material, 100% no asbestos, asbestos free
-
Space saving:
-
5% room area
-
Windproof:
-
270km/h
-
Soundproof:
-
46dB
-
Anchorage load:
-
150kg
-
Rapid erection:
-
25sqm per day
-
Certificate:
-
CE,ISO, BV, SGS, Invention Patent

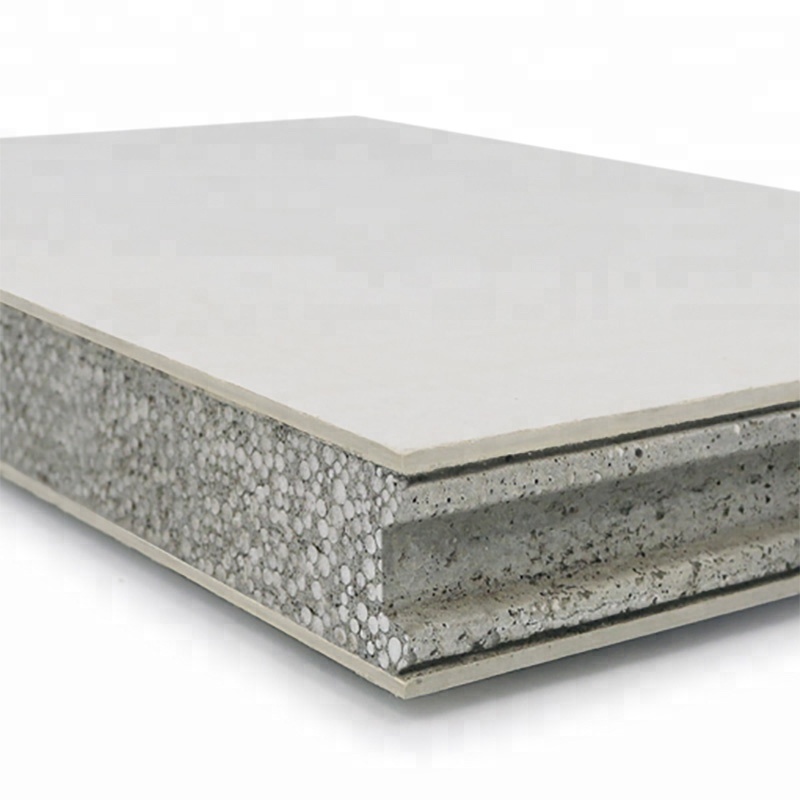

Smart villa eco green prefab house decorative siding panel
| Products Name: | Smart villa eco green prefab house decorative siding panel |
| Double Sides Surface Board: | Calcium silicate board 5.0mm thickness; Fiber reinforced cement board,FRC board |
| Sandwich Core: | (100% non-asbestos, asbestos free), EPS beads (expanded polystyrene), (ceramicite/ceramsite/ceramic),patented additive, Portland cement, sand |
| Joining Method: | Tongue & Groove Type, Interlock Type |
| Specification: |
2270mm*610mm*60/75/90/100/120/150mm; Height 2440mm, 2700mm, 3000mm can be customized. |
| Certificates: | CE, BV, ISO9001, ISO14000, SGS, STC, National Test, Invention Patent |
| Usage: |
Roof, floor, interior wall, innner wall, internal wall, partition wall, exterior wall, outer wall, external wall; Prefab house, high rise building, prefabricated house, steel structure house, concrete structure house, villa, etc |
|
Name |
Smart villa eco green prefab house decorative siding panel |
|
Light weight |
Capacity 650kg/m3, 1/6 of traditional wall |
|
Space saving |
S ave 5% |
|
Waterproof |
Excellent |
|
Fireproof |
A Grade, 4 hours 1000 degree fire |
|
Sound Insulation |
46dB, soundproof, sound absorption, acoustic
|
|
Hanging force |
150kg |
|
Windproof |
75m/s; 270km/h |
|
Anti-seismic |
Class 8, earthquake resistance
|
|
Anti-impact |
Hight strength , 1.5 times of tranditional wall |
|
Fast construction |
25 sqm per day, 20% labor cost saving, easy decoration
|
|
Eco-friendly |
100% no asbestos,
asbestos free
|
|
Service Life |
60-70 years life span
|
TEST 1
:
Hanging force test for green prefab house decorative siding panel
TEST 2
:
Fire proof test, heat insulation test, water proof test for green prefab house decorative siding panel
|
Thermal conductivity(BS 874: Part 2: 1986) |
0.221 W/mK |
|
Flexural Strength(longitudianal) |
4.27 MPa |
|
Flexural Strength(transverse) |
4118N |
|
Moisture Movement |
0.06% |
|
Moisture Content |
9% |
|
Resistance to continuous heating |
80 °c |
|
Surface Alkalinity |
pH 7-10 |
|
Non-combustibility(face Boards) |
BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A |
|
Heat of conbustion(face boards) |
BS EN ISO 1716: 2002 |
|
Building regulations classfication(face boars) |
Euro Class A1 |
|
Fire rated partition |
2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978 |
|
Water tightness to ASTM C1185 |
No droplets observed behind the panel, Test of 24 hours at 250 mm water head |
|
Anchorge Load |
45 kg |
|
Acoustic performance - 60 mm thick - 75 mm thick - 100 mm thick - 120 mm thick - 150 mm thick |
38 dB 40 dB 42 dB 44 dB 46 dB
|
Installation flow
of green prefab house decorative siding panel
(a). Clean up site
(b). Setting the line
(c). Sizing
(d). Install the panels
(e). Insert rebar
(f). Panel joints treatment
(g). Acceptance inspection
Pls kindly email us if you need detailed installation instruction, node diagram, video,ect.
EPS cement sandwich wall panel/ green prefab house decorative siding panel can be widely used in industry and civil buildings, such as school, bank, office, hospital, hotel, workshop, apartment, factory, casino, modular house, portable dwelling, amusement hall, booth, kiosk, carport etc.
Eps sandwich panel's advantages in application:
--------------- Floor System ---------------
Advantages: Damp proof, corrosion resistance, high load-bearing capacity, no deformation, no split.
--------------- Roof System ---------------
Advantages: Light weight, heat insulation, sound proof, water proof, wind proof, safe & durable.
--------------- Interior Wall System ---------------
Advantages: Sound insulation, fire proof, convenient for wire groove and water pipe inbuilt, easy decoration, saving space, high hanging force.
--------------- Exterior Wall System ---------------
Advantages: Solid and firm, high bonding strength, stable performation, compressive strength, anti-crack, weather resistance.
Vanjoin green prefab house decorative siding panel have passed CE, SGS, ISO9001, ISO14000, Invention Patent, STC tests, BV, National Research Certer Testing, etc.
1.Standard: CE
Number:CE201322501
Issue Date:2013-06-07
2.Standard:ISO
Number:02613Q20316ROS
Issue Date:2013-05-21
Expiry Date:2016-05-20
3.Standard: Invention patent
Number:1014851
Issue Date:2012-07-25
4.Standard: Fireproof test report
Number:FHHB018-0012
Issue Date:2006-06-01
Expiry Date:2016-05-31
We can provide free samples for your
further testing.
|
|
Specification (L*W*T)(mm) |
Weight(kg/m 2 ) |
Packing(pcs/m 2 per 20’GP) |
Application |
|
Smart villa eco green prefab house decorative siding panel |
2270*610*60 |
45~48 |
315pcs/436m 2 |
Roof system |
|
2270*610*75 |
50~53 |
252pcs/349m 2 |
Floor system |
|
|
2270*610*90 |
55~58 |
207pcs/287m 2 |
Interior/Exterior wall |
|
|
2270*610*100 |
60~65 |
189pcs/262m 2 |
Interior/Exterior wall |
|
|
2270*610*120 |
65~75 |
153pcs/212m 2 |
Exterior wall |
|
|
2270*610*150 |
80~90 |
126pcs/175m 2 |
Exterior wall |
EPS cement sandwich wall panels/ green prefab house decorative siding panel are packed with plastic thin film, wedge protected and good pallet.
