Quick Details
-
Max Sewing Thickness:
-
80 MM
-
Voltage:
-
380V/50HZ or 220V/60HZ
-
Power:
-
6.5KW
-
Dimension(L*W*H):
-
5000*1600*2000 mm
-
Weight:
-
6500
-
colour:
-
blue
-
speed:
-
600-900 R/M
-
Application:
-
Mattress Production Line
-
type:
-
mattress quilting machine
-
belongs to:
-
mattress machine
-
Quilt Size:
-
2.45m
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuxing
-
Max Sewing Speed:
-
200 M/H
-
Max Sewing Thickness:
-
80 MM
-
Voltage:
-
380V/50HZ or 220V/60HZ
-
Power:
-
6.5KW
-
Dimension(L*W*H):
-
5000*1600*2000 mm
-
Weight:
-
6500
-
colour:
-
blue
-
speed:
-
600-900 R/M
-
Application:
-
Mattress Production Line
-
type:
-
mattress quilting machine
-
belongs to:
-
mattress machine
-
Quilt Size:
-
2.45m

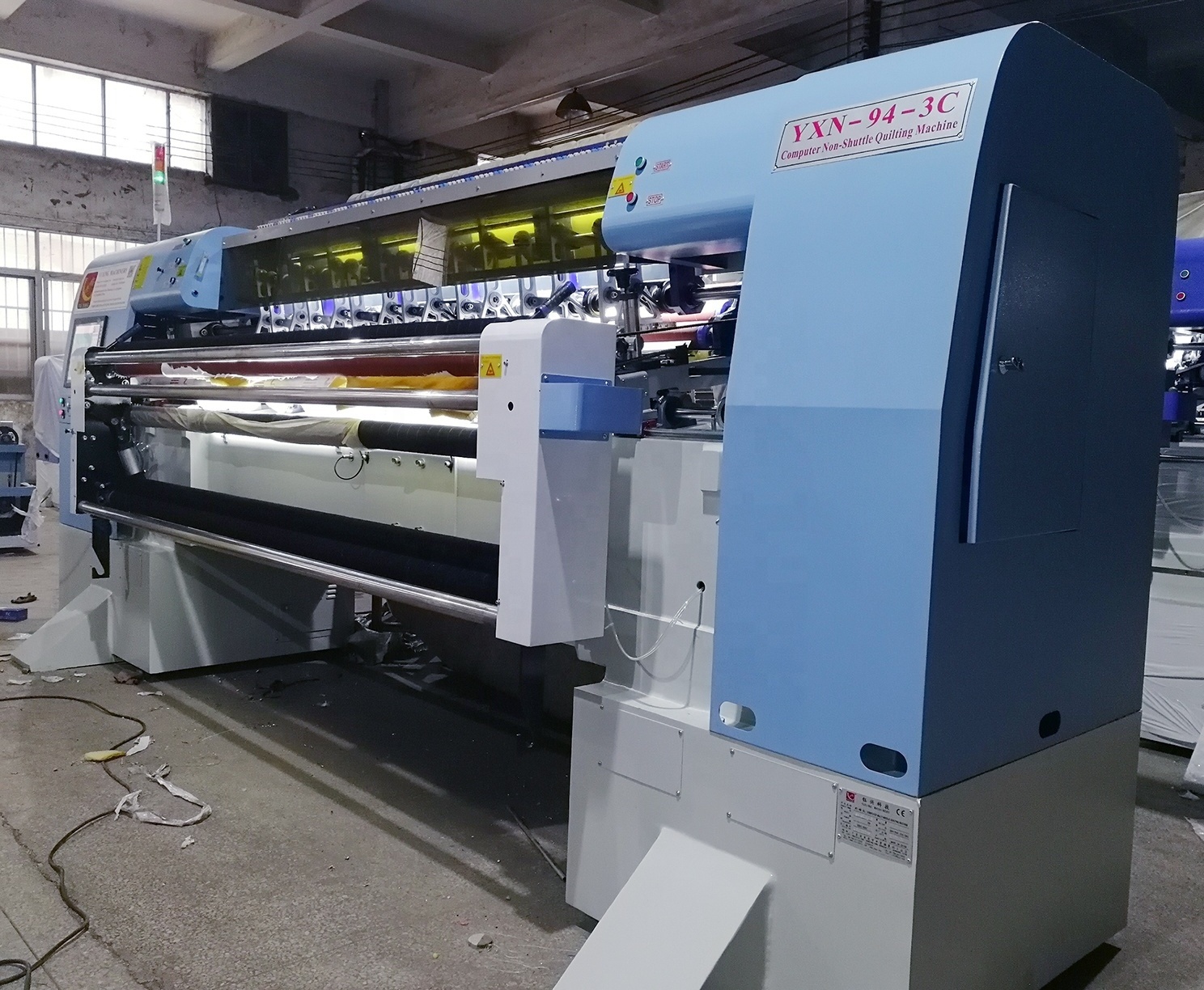

Computerized Mattress Quilting Machine
MODEL NO.: YXN-94-3C
This computerized multi needle mattress quilting machine is mainly used for production high end mattress, quilt, cushion with various designs.
PARAMETER [ Unit:mm]
Size (L*W*H): 5000*1600*2000
Quilting thickness: ≤80
Weight: 5000kg
Stitch length: 2-8
Quilting width: 2485 Through
put: 10-200m/hour
Needle bar space: 50.8, 76.2, 127/76.2, 76.2, 154.4
Needle type: #21-24
Needle spacing: 25.4
Rolling speed: 600-900r/min
Horizontal travel: 410
Power: 6.5KW
Rated Voltage: 380V/50HZ, 220V/60HZ
FEATURES
• Adopt the advanced process design for high speed quilting machine.
• High rigidity machine body, perfect protecting equipment and steady-going control system.
• X, Y motors are driven by servo system, and principal axis takes frequency ports system.
• Test the working state of all sensors and computer in real time.
• Auto-stop when the bottom or upper thread breaks (by infrared).
• Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
• 360° quilting machine, and limitless multi-span and independent quilting.
• Steady running, high speed, low noise, precise pattern.
PATTERN GALLERY
INSTALLATION
