Waterproof 3d triangle steel fence posts 6x6 concrete reinforcing welded wire mesh 3d v bending welded fence for airport

Waterproof 3d triangle steel fence posts 6x6 concrete reinforcing welded wire mesh 3d v bending welded fence for airport

FOB Reference Price: Get Latest Price

≥100 Square meters

US $5

≥500 Square meters

US $4.5

≥1000 Square meters

US $4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ShiTai

Model Number:: ST3D-05

Product name:: 3D Wire Mesh Fence

Surface treatment:: Galvanized+Powder Coated

Wire diameter:: 3.0-6.0mm

Height:: 2030mm

Mesh size:: 50*100 mm;50*150 mm;50*200 mm

Panel size:: 1.8m*2.4m/2.1m*2.4m

Post thickness:: 1-3 mm

Square Post Size:: 40 mm, 50 mm, 60 mm

Color:: Customized Color

Certification:: ISO9001:2008

Quick Details

Frame Material:: Metal

Feature:: Easily Assembled, Sustainable, ECO FRIENDLY, FSC, Renewable Sources, Rodent Proof, Rot Proof, TFT, Waterproof

Place of Origin:: Hebei, China

Brand Name:: ShiTai

Model Number:: ST3D-05

Product name:: 3D Wire Mesh Fence

Surface treatment:: Galvanized+Powder Coated

Wire diameter:: 3.0-6.0mm

Height:: 2030mm

Mesh size:: 50*100 mm;50*150 mm;50*200 mm

Panel size:: 1.8m*2.4m/2.1m*2.4m

Post thickness:: 1-3 mm

Square Post Size:: 40 mm, 50 mm, 60 mm

Color:: Customized Color

Certification:: ISO9001:2008

............................................................................................................................................................................

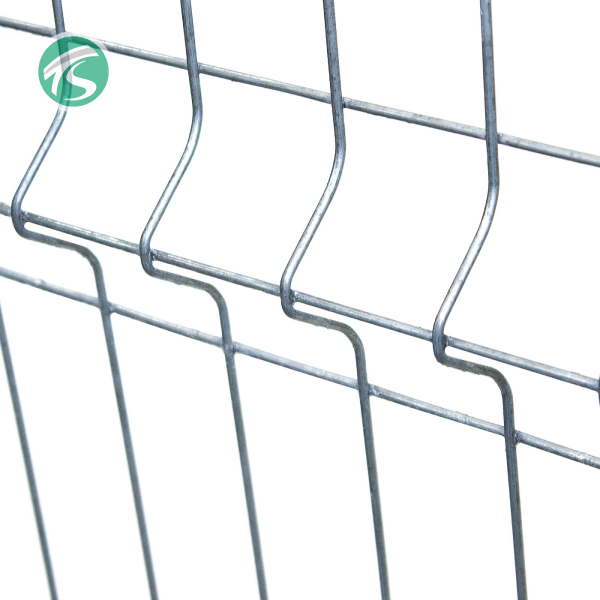

3D c urvy welded mesh fence, also called 3D security fencing. It's made of carbon steel wires and steel tubes. Hot dipped galvanized or colorful powder coating supplies bright and anti-corrosive surface for durable life. Different curves on fence panel increase security grade.

It is widely used in commercial and residential applications for different grade security protection applications.

Fence Panel Size
Wire diameter	Mesh size	Panel height	Panel height	Fold no
3mm 4mm 5mm	50200mm 50150mm 55100mm 75200mm 75*150mm	830mm	2000mm 2300mm 2500mm 3000mm	2
					1030mm	2
					1230mm	2
					1530mm	3
					1730mm	3
					2030mm	4
					2230mm	4
					2430mm	4

Fence Post Size
Post View	Size	Thickness	Panel Height	Base Post	Normal Post
Square Post	4040mm 5050mm 60*60mm	1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2.0mm 2.5mm	830mm 1030mm 1230mm 1530mm 1830mm 2030mm 2230mm 2430mm	850mm 1050mm 1250mm 1550mm / / / /	1200mm 1400mm 1600mm 2000mm 2400mm 2500mm 2800mm 3000mm
Square Post	4040mm 5050mm 60*60mm
Rectangle Post	3050mm 4060mm 60*80mm
Rectangle Post	3050mm 4060mm 60*80mm
Round Post	OD 50mm OD 60mm
Round Post	OD 50mm OD 60mm
Peach Post	5070mm 70100mm
Peach Post	5070mm 70100mm

Associated posts and accessories are supplied for easy and fast installation. The posts will be buried into earths or bolted onto concrete or hard ground.

3D fence is used in home, industrial enterprises, children's sports, playgrounds, stadiums, private area, animal farming or railway protection, and so on. However, it is increasingly used for private areas and suburban areas.

In addition, fences not only protect the site from unwanted guests, but also serve as an element of decoration of the site, giving it comfort and cordiality.

Accordance with the specification, to do inspection for the products In order to maintain quality assurance, we strictly comply with a operational procedure.

We conduct QC testing during the production process of each batch of goods, and a specialist is responsible for following up and providing feedback. Records will be kept at the end to assist customers in inspection

.............................................................................................................................................................................

Land transportation, sea transportation, air transportation, express delivery. We will recommend the most favorable transportation method for you based on customer needs and the size of the goods

Hebei Shitai Environmental Engineering Co., Ltd. is a professional metal fence supplier in China. We are professionally engaged in the production and export of all kinds of Gabion for defense. Our main products include defensive barrier, gabion mesh, welded gabion, screen mesh, metal fence, sound barrier, etc. All of them have been up to EU, GB , ISO9001 and ASTM standards. With the philosophy of "Quality first, Customer first, Service first", Shitai wire mesh has gained good reputation in both domestic and overseas market.
