Quick Details
-
Driver Motor:
-
DC Brushless Motor (24V)
-
Channel width:
-
600-1200mm
-
Operating Time:
-
≤0.4sec
-
Material:
-
SS 304# Stainless Steel( Hairline Finish)
-
Material Thickness:
-
2mm
-
MCBF:
-
5,000,000 Cycle
-
Dimension:
-
1400*180*1000(mm)
-
Communication interface:
-
RS485 or TCP/IP
-
Protection Class:
-
IP65
-
Passing Speed:
-
30-50 People/min
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEWO
-
Model Number:
-
SEWO-B4A-180
-
Driver Motor:
-
DC Brushless Motor (24V)
-
Channel width:
-
600-1200mm
-
Operating Time:
-
≤0.4sec
-
Material:
-
SS 304# Stainless Steel( Hairline Finish)
-
Material Thickness:
-
2mm
-
MCBF:
-
5,000,000 Cycle
-
Dimension:
-
1400*180*1000(mm)
-
Communication interface:
-
RS485 or TCP/IP
-
Protection Class:
-
IP65
-
Passing Speed:
-
30-50 People/min
Product Description
SEWO Security Swing Turnstile Barrier Gate for Supermarket Shopping Mail RFID VIP Card Turnstile Access Control
Product Introduction:
The SEWO-B4 Series High Speed Swing Gate is ideal for processing pedestrian traffic into a corporate facility or an IT office. The area of application may be as creative as the stunning design itself. This Pedestrian High Speed Swing Gate has at its heart a Brush-less DC Drive that offer several years of trouble free operation.
Function Features
1. Motor structure:
Adopt SEWO patent non-destructive fully-automatic movement
DC 24V Brushless Motor + Encoder Tech + Clutch Brake
2. Alarm Function: Alarm for Illegal break-in. Follow. Passed overtime. Device damaged.
3. Anti-pinch Function：IR and Current feedback to make sure the safety
4. Fire alarm linkage function: Pass freely when get fire alarm
5. Pass mode: AB( A for card, B for pass freely), BA(B for card, A for pass freely), AA( card-swipping for A and B), BB( pass freely for both A and B)
6. More safety , with sensor in the up and down box , mainly used in the building with children
Product advantages
1). Running stably without noise and mechanical impact
2). The number of the passing persons can be counted via the built-in people counter
3). Several ways of working modes for option
4). Bi-direction or one direction permitted. One forbidden. Or one direction charged.
One for free . And all the working modes set by the buttons in the main control board
5). Beam falling and lifting can be controlled in far distance so to satisfy the special require ment of the users and the request
of fire protection
6). LED Direction-guide lights in the turnstile to tell you whether the direction to go or not
7).The standard electrical interface connected with various kinds of reader and writer equipments
8). All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9). The number of the persons passed can be counted automatically which can also be display in LED
10). The function with or without card-reading memory can be set according to your demand
11). Self-check and alarm for convenient to operate
2). The number of the passing persons can be counted via the built-in people counter
3). Several ways of working modes for option
4). Bi-direction or one direction permitted. One forbidden. Or one direction charged.
One for free . And all the working modes set by the buttons in the main control board
5). Beam falling and lifting can be controlled in far distance so to satisfy the special require ment of the users and the request
of fire protection
6). LED Direction-guide lights in the turnstile to tell you whether the direction to go or not
7).The standard electrical interface connected with various kinds of reader and writer equipments
8). All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9). The number of the persons passed can be counted automatically which can also be display in LED
10). The function with or without card-reading memory can be set according to your demand
11). Self-check and alarm for convenient to operate
Single Lane High Speed Swing Gate

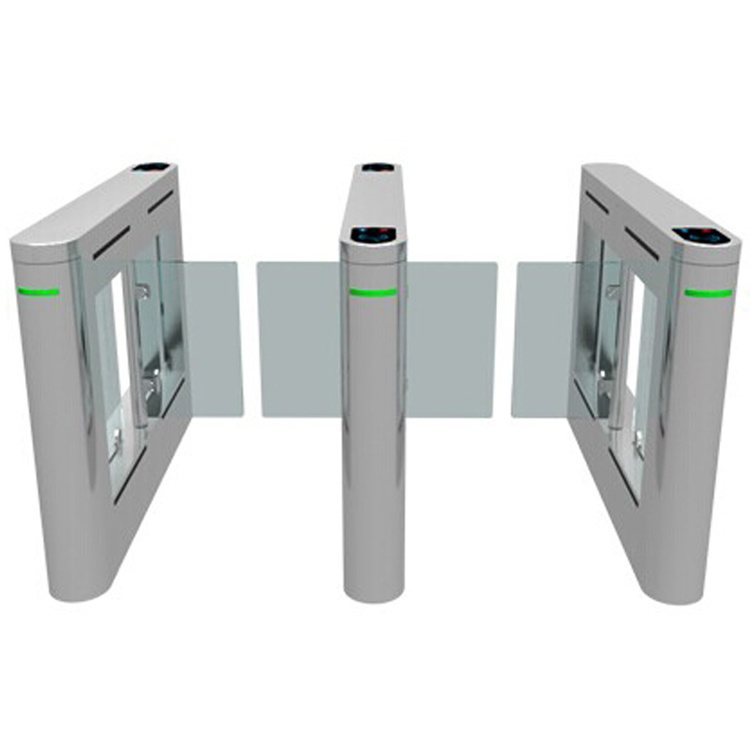

Dual Lanes
High Speed Swing Gate
High Speed Swing Gate with Face Recognition
The high speed gate support to customized by your requiry, for example , material, lanes, face recognition, thermal imaging and other functions. please contact us to get more detail information.
Specification
|
Product Name
|
SEWO High Speed Swing Turnstile Gate
|
|
Model
|
SEWO-B4A-180
|
|
Size
|
L1400*W180*H1000mm
|
|
Weight
|
80kg
|
|
Passing Width
|
60cm~90cm adjustable
|
|
Passing Speed
|
35--50 people/min
|
|
Operating Time
|
0.4 second
|
|
Protection Grade
|
IP54
|
|
IR Sensor
|
8 pairs
|
|
Temperature rise of motor
|
∆T15°
|
|
Noise
|
< 50db
|
|
Housing Material
|
SUS304 / 1.2mm thickness
|
|
Arm Material
|
Plexiglass or Tempered glass or Stainless Steel (Optional)
|
|
Driving Motor
|
DC Brushless motor ( 24V,5A )
|
|
Working Voltage
|
AC220V±10%,50Hz±4%
|
|
Working temperature:
|
-15℃-70℃
|
|
MCBF
|
Over 5,000,000 cycle
|
|
Lighting protection grade
|
3 level
|
|
Relative humidity
|
5%- 95%( no condensation )
|
Left Gate
Middle Gates
Right Gate
