Quick Details
-
Weight:
-
5000 kg
-
Place of Origin:
-
Hebei, China
-
Production Capacity:
-
10-12m/min
-
Application:
-
Roof
-
Usage:
-
Exterior
-
Type:
-
Automatic
-
Certification:
-
CE, CE
-
Used for:
-
Rain Gutter
-
Voltage:
-
380V 50HZ 3phase
-
Advantages:
-
Easy Installation
-
Color:
-
Customer's Requirement
-
After-sales Service:
-
Online
-
Control system:
-
PLC+touch Screen
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
India
-
After-sales Service Provided:
-
Field installation, commissioning and training, Video technical support, Online support, Free spare parts, Field maintenance and repair service
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Brand Name:
-
Zhongtuo
-
Condition:
-
NEW
-
Weight:
-
5000 kg
-
Place of Origin:
-
Hebei, China
-
Production Capacity:
-
10-12m/min
-
Application:
-
Roof
-
Usage:
-
Exterior
-
Type:
-
Automatic
-
Certification:
-
CE, CE
-
Used for:
-
Rain Gutter
-
Voltage:
-
380V 50HZ 3phase
-
Advantages:
-
Easy Installation
-
Color:
-
Customer's Requirement
-
After-sales Service:
-
Online
-
Control system:
-
PLC+touch Screen
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
India
-
After-sales Service Provided:
-
Field installation, commissioning and training, Video technical support, Online support, Free spare parts, Field maintenance and repair service

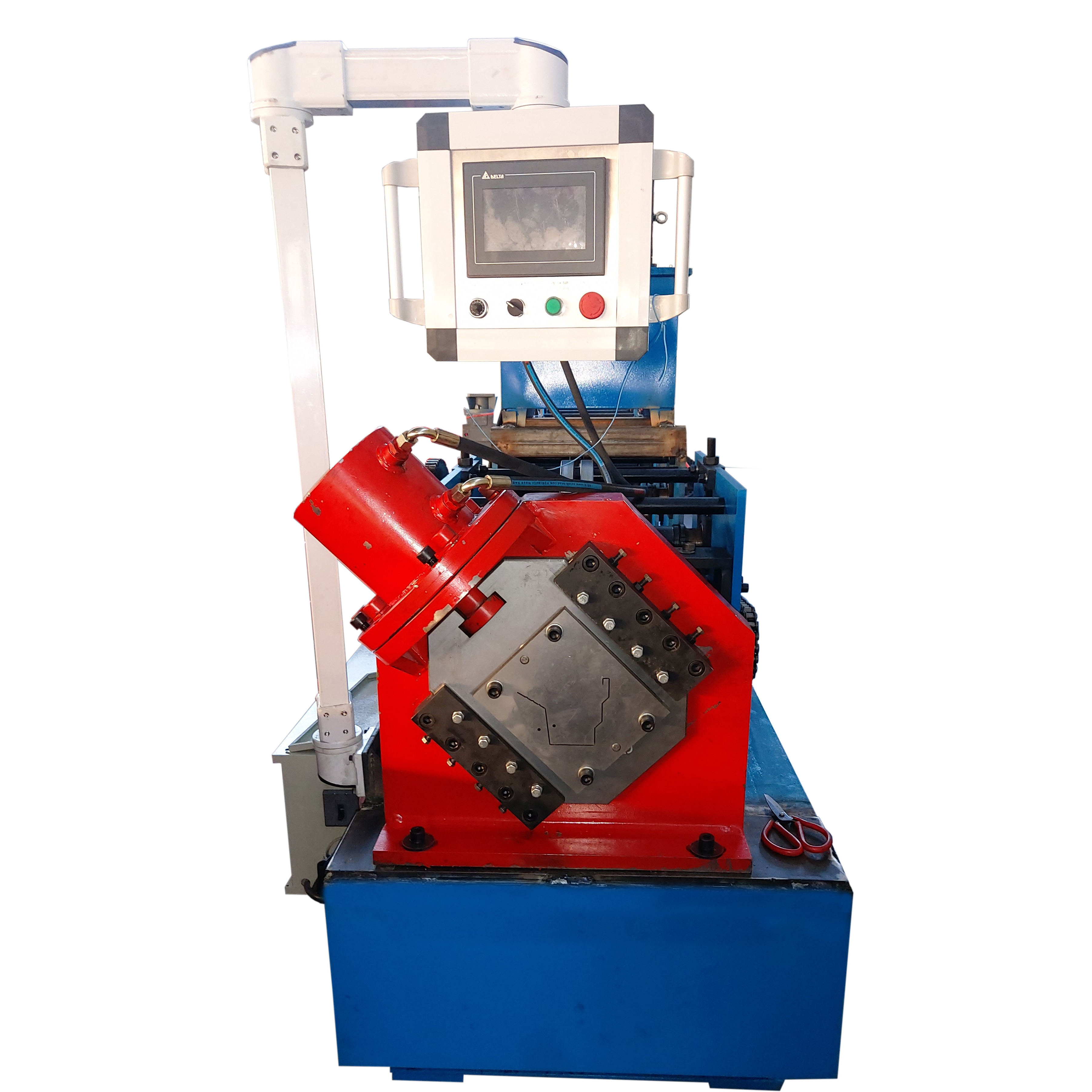

5 INCH RAIN GUTTER ROLL FORMING MACHINE
5 Inch Rain Gutter Roll Forming Machine is designed to make rain gutters in batches fully automatic. Rain gutter is a compnent of a water discharge system for a building. It is necessary to prevent water driopping or flowing off roofs in an uncontrolled manner for several reasons: to prevent damaging the walls, drenching persons standing below or entering the building, and to direct water to a suitable disposal site where it will not damage the foundations of the building.
Rain Gutter Cover Perforations
- 7/64" (2.8mm) in diameter
- Drains 29.7" (754mm) of water per hour
- Offers the perfect balance between maximum drainage and debris protection
| Base Frame Structure | 350 H-beam welded |
| Sidewall thickness | 16mm A3 Carbon Steel seamless welded with base frame |
| Roller stations | 18 forming units |
| Connect bars | Diameter 25mm galvanized steel rod |
| Roller Shaft (Solid) | 70mm-0.01~-0.03 with Key-way |
| Shaft Material (Hard) | High grade 45# steel,lathe then polishing smoothly |
| Roller Raterial (Hard) | High grade 45# steel,CNC lathe then chromed plated 0.05mm |
| Bearing type | standard 6210 single units inside wall box |
| Screw and bolts | Common 8.8 standard |
| Transmission method | 0.6 inch |
| Driving motor | 4.0KW |
| Motor reducer | 4.0KW |
| Forming speed | 10-12m/min |
Usage: It is used to support the steel coil and uncoil the material in a turnable way.
10t hydraulic decoiler specification:
| Item | Specification |
| Decoiling Type | Actively Uncoiling Type |
| Loading Capacity | 12 Tons |
| Loading Width | Max. 1250mm |
| Coil Inner Diameter | 450-550mm |
| Coil Outer Diameter | Max. 1500mm |
| Motor | 7.5kW+3kW |
Manual Decoiler Sample Pictures
Q: Can you customize the machine to your company's specification?
A: Yes, we can manufacture the machine according to your specification.
Q: How is the quality?
A: All raw materials are quality controlled. Staffs take care of every detial when handling production and packaging. Our quality control department is responsible for the quality of each process.
Q: Do we have after sales service?
A: Yes, we have after sale service via email, whatsapp, wechat, skype and other communication method.
Q: Does our machine comes with warrenty?
A: Yes, it comes with 2 years warranty.
