Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUYOUMECH
-
Name:
-
Dung Dewatering Machine
-
Function:
-
Dewatering Cow Manure
-
Usage:
-
Farm Dung Water Treatment
-
Raw material:
-
45# Steel or 304 stainless steel
-
Feed Inlet Diameter:
-
75 mm
-
Feature:
-
Easy Operation
-
Where to Use:
-
Farm Filed
-
Advantage:
-
High Efficiency Working
-
Package:
-
Wooden Case
-
PAYMENT:
-
TT
Quick Details
-
Weight (KG):
-
230
-
Type:
-
Farm Equipment
-
Use:
-
Processing animal manure
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUYOUMECH
-
Name:
-
Dung Dewatering Machine
-
Function:
-
Dewatering Cow Manure
-
Usage:
-
Farm Dung Water Treatment
-
Raw material:
-
45# Steel or 304 stainless steel
-
Feed Inlet Diameter:
-
75 mm
-
Feature:
-
Easy Operation
-
Where to Use:
-
Farm Filed
-
Advantage:
-
High Efficiency Working
-
Package:
-
Wooden Case
-
PAYMENT:
-
TT

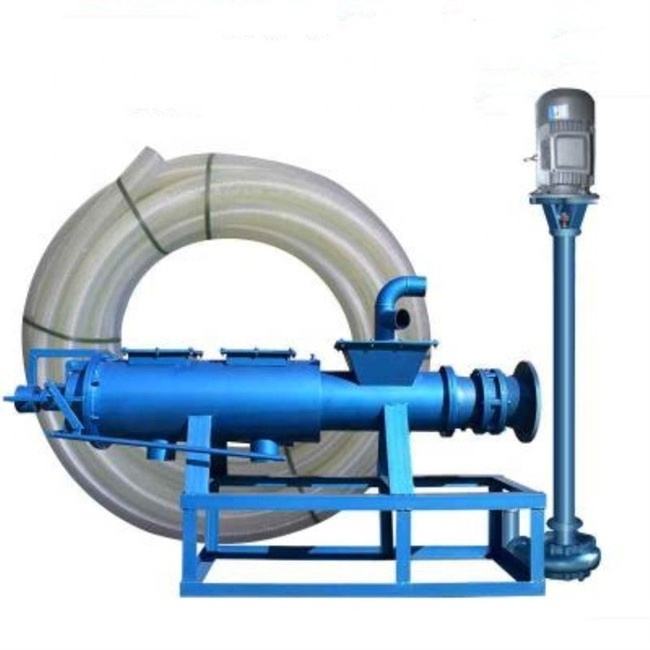

Extrusion Animal Chicken Manure Cow Dung Squeeze Manure Dryer Dewatering Machine
Description :
The machine receives the material to be separated and conveys it using the screw conveyor inside the separator casing. The liquid phase is separated through the mesh of the cylindrical screen which encloses the screw conveyor. Along its path toward the exit,the material gradually separates progressively the less linked liquid and then the more strongly linked liquid until a plug of almost dry material has formed before the outlet. The plug is continuously expelled through the outlet diaphragm.The machine will automatically find its balance of squeezing force depending on the material. Consequently, it can be used for a wide range of materials without the need for any manual adjustments.
The machine use the pump to pull the fresh fowl manure, cow dung, etc. into dewater equipment , the material through the screen and then press by the screw , the rotary speed of the machine can reach 45r/min , within the press of the screen and high rotary speed , the material will be dewatered by the machine , and the water will enter into the pool through screen. after this machine , water contain in manure is less than30- 35%.The final product solid manure can be used as fertilizer directly.
Parameter:
|
Model |
Voltage |
Main Motor (KW) |
Pump Motor (KW) |
Sieve Diameter (MM) |
Inlet Diameter (MM) |
Weight(KG) |
Dimensions(CM) |
|
JU --180 |
220V/380V |
4 |
3 |
180 |
75 |
230 |
180*130*50 |
|
JU --200 |
220V/ 380V |
5.5 |
3 |
200 |
75 |
36 0 |
210*140*50 |
|
JU --280 |
380V |
7 .5 |
3 |
280 |
75 |
40 0 |
230*140*60 |
|
JU --300 |
380V |
7.5 |
4 |
300 |
75 |
42 0 |
240*140*60 |
|
JU --400 |
380V |
11 |
4 |
400 |
75 |
45 0 |
270*140*80 |
