- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jeta
-
Dimension(L*W*H):
-
16*2.6*2.5m
-
Weight:
-
6000 KG
-
Name:
-
Flute Cardboard Laminator
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feature:
-
Operated Easily
-
Keyword:
-
flute laminating machine
-
Laminating Speed:
-
150m/min
-
Usage:
-
Paper Board Laminating
-
Power:
-
20kw
-
Marketing Type:
-
Ordinary Product
-
Model:
-
YB-1650HS
Quick Details
-
Packaging Type:
-
Bags, Belt, Cartons, Film
-
Packaging Material:
-
Paper, Plastic, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jeta
-
Dimension(L*W*H):
-
16*2.6*2.5m
-
Weight:
-
6000 KG
-
Name:
-
Flute Cardboard Laminator
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feature:
-
Operated Easily
-
Keyword:
-
flute laminating machine
-
Laminating Speed:
-
150m/min
-
Usage:
-
Paper Board Laminating
-
Power:
-
20kw
-
Marketing Type:
-
Ordinary Product
-
Model:
-
YB-1650HS
Usage:
This

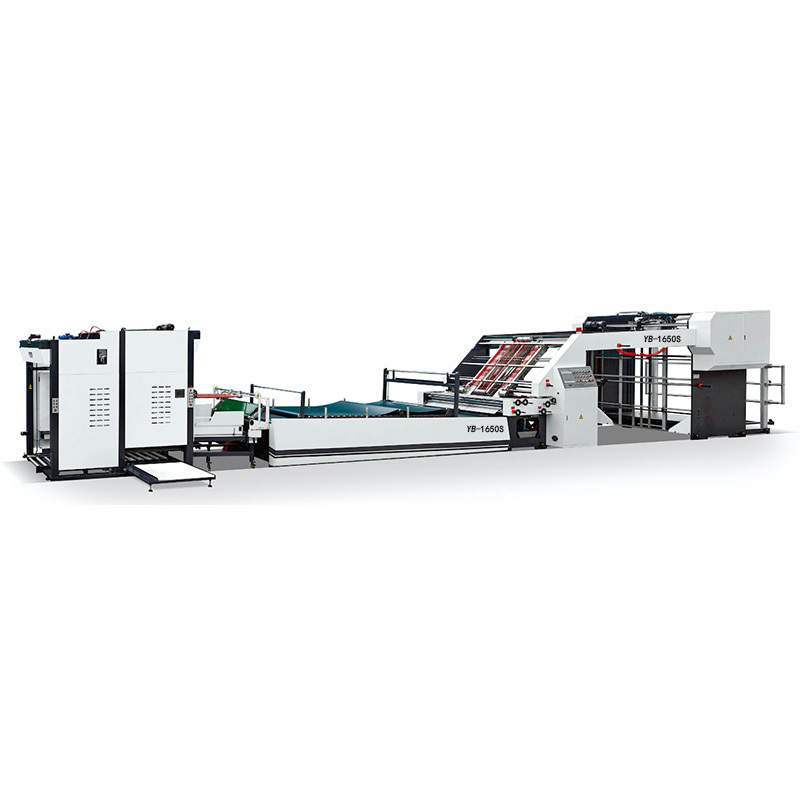

[JT-YB1650HS] Flute Litho Laminator Machine Corrugated Sheet Flute Laminating Machine CE Automatic
, using multiple sets of photoelectric sensor at the end of the paper the relative position, control top paper on both sides of the servo motor independent drive compensation action, top paper and bottom paper precise positioning. Servo laminating machine has the advantages of simple operation, only need to input the size of paper can be completed automatically adjust the machine.
Features:
1.Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly .
2.
Bottom paper feeding: Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
3.
Using groups of photoelectric sensing bottom paper forward relative position, control top paper on both sides of the servo motor, independent compensation action, the top paper and bottom paper precision laminated.
4.
Transmission Part : Imported double toothed synchronous belt drive, equipped with a tensioning device to ensure the accuracy of the transmission, stable, low noise.
5.
Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.
6.
Electrical system: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.
7.
Pre-stack section: pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.
|
Model
|
|
JT-YB-1450HS
|
JT-YB-1650HS
|
||
|
Max sheet size
|
|
1450×1250mm
|
1650×1450mm
|
||
|
Min sheet size
|
|
450×450mm
|
500×500mm
|
||
|
Top paper thickness
|
Cardboard paper
|
175-500gsm
|
175-500gsm
|
||
|
|
Kraft paper
|
145-450gsm
|
145-450gsm
|
||
|
|
Glossy/art paper
|
>120gsm
|
>120gsm
|
||
|
Max speed
|
|
150m/min
|
150m/min
|
||
|
Precision for front and back
|
|
±1.5mm
|
±1.5mm
|
||
|
Overall size
|
|
5500X2600X2900
|
5500X2800X2900
|
||
|
Machine power
|
|
6
|
6
|
||
|
|
|
A、B、C、E、F Corrugated paper
Four Layers Corrugated paper: AB/BB/BC/EE
Grey board paper: 600-1800GSM
The cardboard paper is above the 300GSM
|
|
||
