Quick Details
-
Supplier Type:
-
PCB Assembly manufacturer
-
Product name:
-

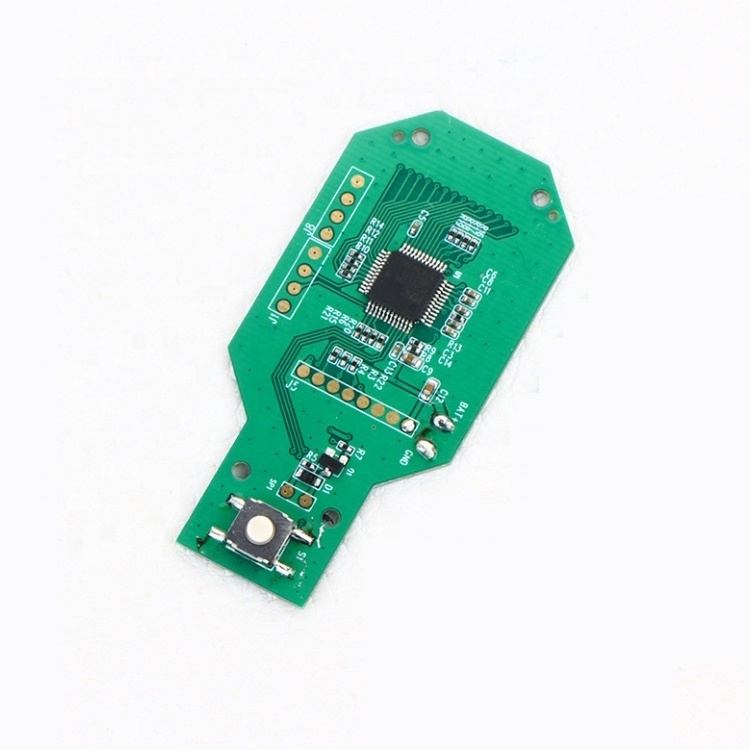

PCBA Board Assembly
-
Surface Finishing:
-
HASL
-
Material:
-
FR-4
-
Layer:
-
1-40 Layers
-
MOQ:
-
1 PCS
-
Board Thickness:
-
0.1~6mm
-
Min. Hole Size:
-
0.075mm
-
Application:
-
Medical
-
Delivery:
-
3-15days
-
Size:
-
Customized Size
Quick Details
-
Model Number:
-
PCBA-S11033
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIWISFOUND
-
Supplier Type:
-
PCB Assembly manufacturer
-
Product name:
-
PCBA Board Assembly
-
Surface Finishing:
-
HASL
-
Material:
-
FR-4
-
Layer:
-
1-40 Layers
-
MOQ:
-
1 PCS
-
Board Thickness:
-
0.1~6mm
-
Min. Hole Size:
-
0.075mm
-
Application:
-
Medical
-
Delivery:
-
3-15days
-
Size:
-
Customized Size
Product Description
Specification
PCB Technical Capacity
|
Material
|
FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT,
PPO, PPE, Hybrid, Partial hybrid, etc. |
|
Layer
|
Mass production: 2~40 layers
|
|
Max. Thickness
|
Mass production: 472mil (10mm)
|
|
Surface Finish
|
HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
|
|
Max. Thickness
|
Mass production: 472mil (10mm)
|
|
Min. Width/Spacing
|
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
|
|
Max. Copper Thickness
|
UL certificated: 6.0 OZ / Pilot run: 12OZ
|
|
Min. Hole Size
|
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
|
|
Max. Panel Size
|
1150mm × 560mm
|
|
Special Process
|
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and
Resistance control |
PCBA
Technical Capacity
