Quick Details
-
Weight (KG):
-
800 KG
-
Power (kW):
-
2.2kw
-
Product name:
-
5 in 1 Combination Woodworking Machine
-
Advantage:
-
High Efficiency Easy Operate
-
Function:
-
Muti- Function
-
Color:
-
as pitures
-
Planning width:
-
400mm
-
Dimension:
-
1906*1330*1065mm
-
Weight:
-
800KG
-
Package:
-
Wooden Box
-
Application:
-
Woodworking Process
-
Voltage:
-
220v/380v
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
XIAPU
-
Machine Type:
-
Combined Machine
-
Weight (KG):
-
800 KG
-
Power (kW):
-
2.2kw
-
Product name:
-
5 in 1 Combination Woodworking Machine
-
Advantage:
-
High Efficiency Easy Operate
-
Function:
-
Muti- Function
-
Color:
-
as pitures
-
Planning width:
-
400mm
-
Dimension:
-
1906*1330*1065mm
-
Weight:
-
800KG
-
Package:
-
Wooden Box
-
Application:
-
Woodworking Process
-
Voltage:
-
220v/380v

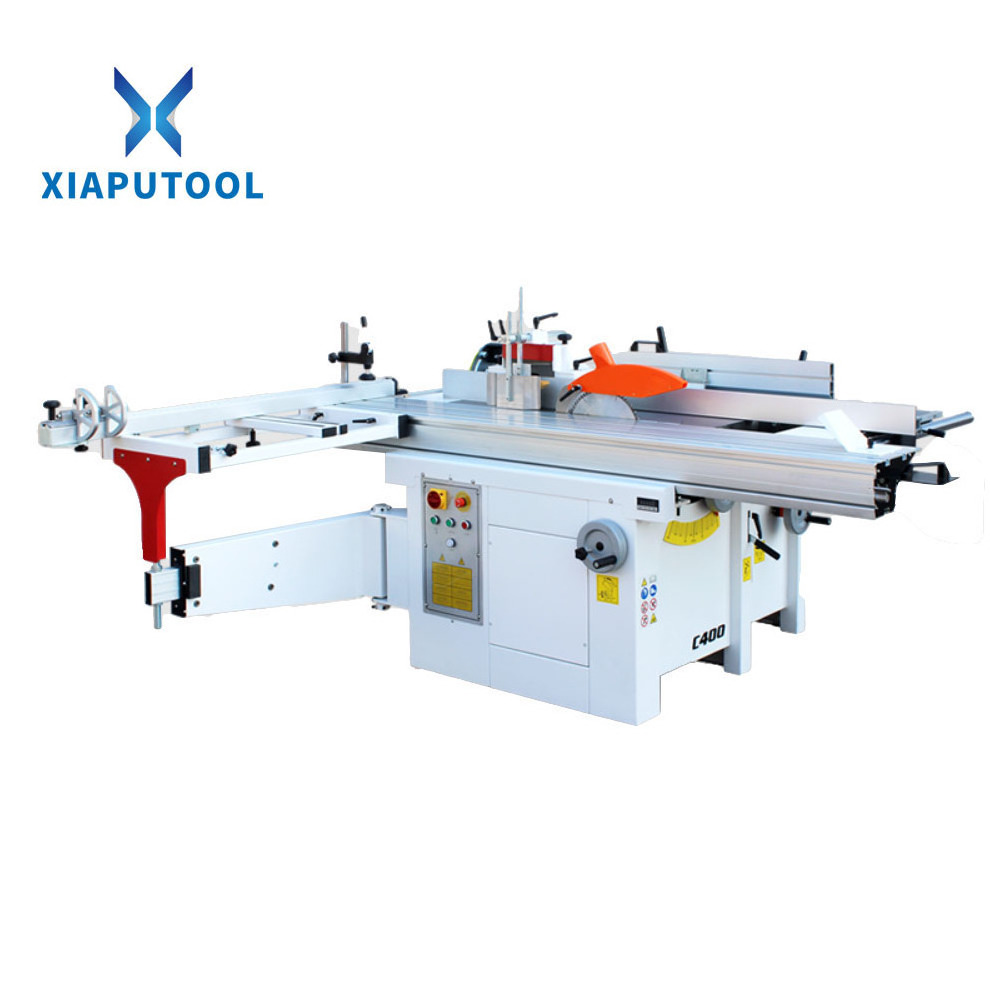

5 in 1 Combination Woodworking Machine
The C400 Combined
Woodworking Machinery
has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
Being a professional standard
woodwork machine
, the C400 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.
The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.
Product Characteristics
❶ Panel saw sliding beam.
❷ Scoring for veneered boards.
❸ Accurate cross cut fence with flipstops.
❹ Cast iron construction Sturdy.
❺ Swinging arm squaring frame.
❻ Inward parallel swing planer table.
❼ 3 x 2.2kw class 1 motors.
❽ Micro adjust spindle moulder fence.
❾ Fully adjustable settings.
Sliding Table Saw
Spindle Moulder
|
Circular saw
|
Unit
|
C400
|
|
Working table
|
mm
|
326x1112
|
|
Shaft rotation speed
|
r.p.m.
|
4500
|
|
Blade diameter
|
mm
|
300
|
|
Blade bora diameter
|
mm
|
30
|
|
Cutting height 90°
|
mm
|
100
|
|
Max. distance between blade and fence
|
mm
|
730
|
|
Blade inclination
|
0°
|
45°
|
|
Max cutting height 45°
|
mm
|
50
|
|
Shaft rotation speed engraver
|
r.p.m.
|
7000
|
|
Engraver blade diameter
|
mm
|
90
|
|
Engraver blade bora diameter
|
mm
|
22
|
|
Shaper
|
Unit
|
C400
|
|
Working tables
|
mm
|
326x1112
|
|
Shaft rotation speeds
|
r.p.m.
|
2000/3100/4400/7000
|
|
Standard shaft diameter
|
mm
|
30
|
|
Spindle lenght
|
mm
|
105
|
|
Shaft vertical stroke
|
mm
|
115
|
|
Max. tool diameter
|
mm
|
180
|
|
Max. tenoning depth
|
mm
|
65
|
Planer
Thicknesser
Mortiser
|
Planer
|
Unit
|
C400
|
|
Working tables
|
mm
|
400x1800
|
|
Cutterblock diameter
|
mm
|
70
|
|
Cutterblock rotation speed
|
r.p.m
|
5700
|
|
N. of knives
|
n°
|
3
|
|
knives dimensions
|
mm
|
400x20x3(400x25x3)
|
|
Max table adjustement
|
mm
|
4
|
|
Thicknesser
|
Unit
|
C400
|
|
Working table
|
mm
|
400x760
|
|
Feed speed
|
m/1'
|
7
|
|
Max. working height
|
mm
|
220
|
|
Min. working height
|
mm
|
4
|
|
Cutterblock rotation speed
|
r.p.m.
|
5700
|
|
Max. cutting depth
|
mm
|
4
|
|
Mortiser
|
Unit
|
C400
|
|
Working table
|
mm
|
250x500
|
|
Longitudinal stroke
|
mm
|
205
|
|
Trasversal stroke
|
mm
|
95
|
|
Vertical stroke
|
mm
|
90
|
|
Churck
|
mm
|
16
|
|
Churck rotation speed
|
r.p.m.
|
5700
|
