Quick Details
-
Brand Name:
-
ORIEMAC
-
Model Number:
-
SD23
-
Dimension(Long * Breadth * High):
-
5023*3422*3200 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Engine:
-
Weichai
-
Cooling type:
-
Water cooling
-
Rated power:
-
179 kw
-
Blade type:
-
Straight-tilt
-
Ripper options:
-
Triple-shank
-
Depth below ground:
-
540 mm
-
Blade capacity:
-
8 m3
Quick Details
-
Machine Weight:
-
17000kg
-
Dozing Capacity:
-
8cbm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
ORIEMAC
-
Model Number:
-
SD23
-
Dimension(Long * Breadth * High):
-
5023*3422*3200 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Engine:
-
Weichai
-
Cooling type:
-
Water cooling
-
Rated power:
-
179 kw
-
Blade type:
-
Straight-tilt
-
Ripper options:
-
Triple-shank
-
Depth below ground:
-
540 mm
-
Blade capacity:
-
8 m3
Product Description

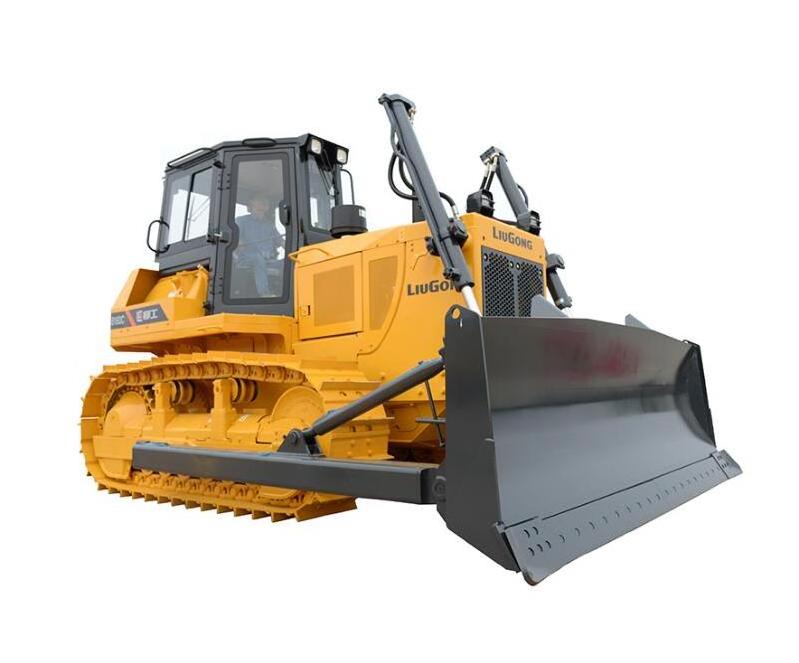

- ORIEMAC 230C Crawler Bulldozer 240HP Mini Dozer for Sale
- B230C bull dozer is powered by US engine with a rated net power of 169 kW. Large volume fuel tank (480 L) keeps the machine working for longer. A larger more efficient cooling fan and a newly designed radiator increase cooing efficiency.
- The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood.
- The ultra-large rear space makes the care and maintenance of steering and brake systems easy.Mainteiance speed and access is further improved with automatic greasing system and auto track tensioning fitted as option.
Main Parameters:
|
Operating weight
|
24540 kg |
|
Engine power
|
179 kW (240 hp) @ 2000 rpm |
|
Max travel speed, fwd
|
12 km/h |
|
Max travel speed, rev
|
14 km/h |
|
No. of speeds, fwd
|
3 |
|
No. of speeds, rev
|
3 |
|
Referenced Shoe width
|
560 mm |
|
Ground pressure
|
76 kPa |
|
Blade type
|
Straight |
|
Blade capacity
|
8 m³ |
|
Depth below ground
|
540 mm |
|
Lift above ground
|
1210 mm |
|
Blade angle
|
8 ° |
|
Blade tilt
|
735 mm |
|
Transport length
|
5500 mm |
|
Transport width
|
3725 mm |
|
Transport height
|
3438 mm |
|
Model
|
US Imported |
|
Emission
|
Stage I / Stage III |
|
Ripper options
|
Single-shank; triple-shank |
|
Blade options
|
Straight; Angle; Semi-U; Full-U; Landfill U-Blade; Coal blade |
