This mini skid steer loader is flexible, easy to operate, with an imported Briggs engine or Honda Engine, good price, and a full
range of buckets with automatic bucket leveling as standard. And it adopts the concealed design of big boom oil cylinder.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
shandong
-
Dimension(Long * Breadth * High):
-
2215mmX1090mmX1330mm
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.08m³
-
Marketing Type:
-
Hot Product 2023
-
Operating Load:
-
380kg
-
Max Lifting Force:
-
430kg
-
Operating Weight:
-
900kg
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
55kw
-
Brand Name:
-
GOPHERS
-
Place of Origin:
-
shandong
-
Dimension(Long * Breadth * High):
-
2215mmX1090mmX1330mm
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.08m³
-
Marketing Type:
-
Hot Product 2023
-
Operating Load:
-
380kg
-
Max Lifting Force:
-
430kg
-
Operating Weight:
-
900kg
Product Description

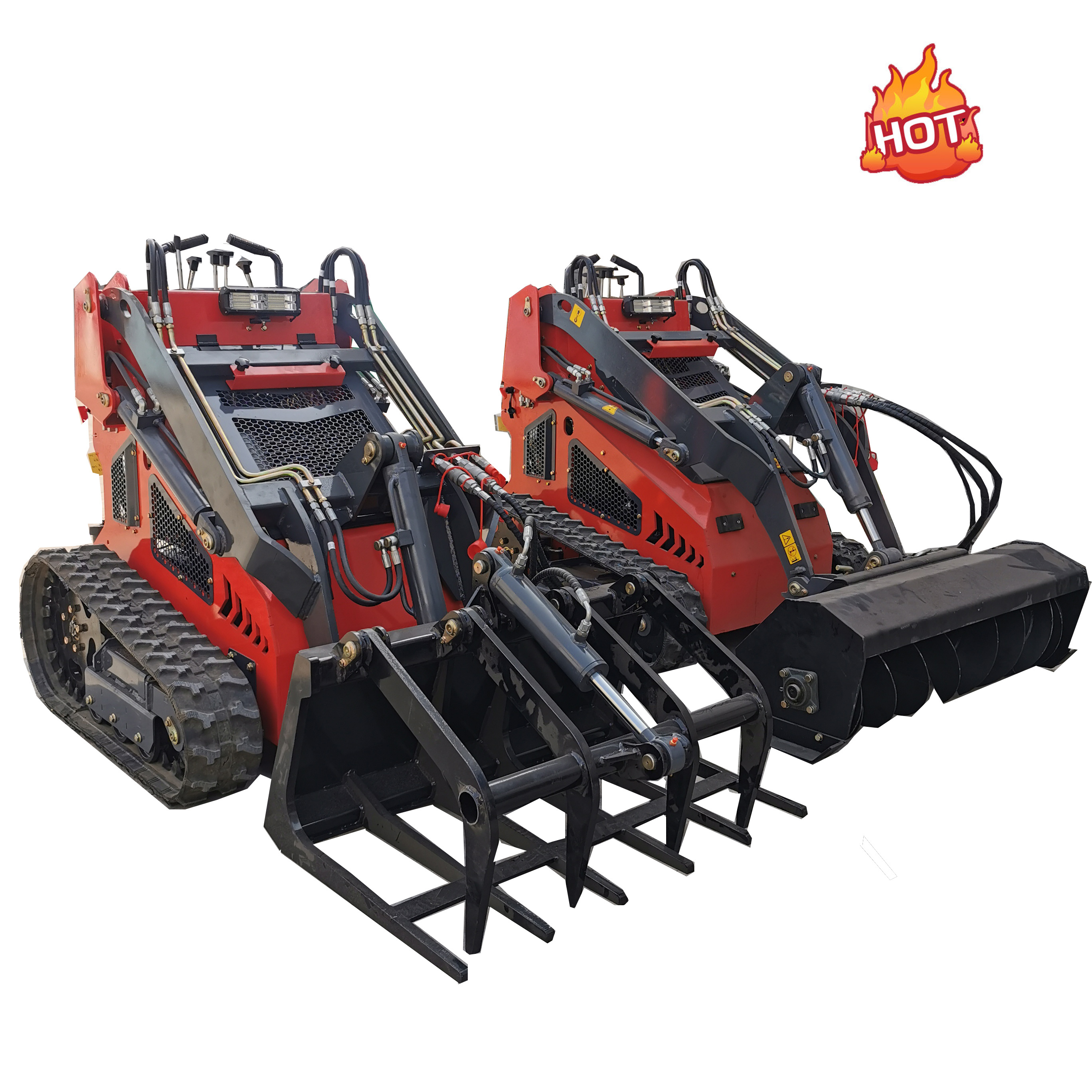

GPHERS 430 mini skid steer loader
Features and Highlights.
1. Automatic bucket leveling
2. The whole series is equipped with three pumps and three valves as standard
3. attachment's interface adopts international standard quick-change plug
4. Attachment large flow rate, up to 55 liters / per minute, basically any attachment needs flow can meet
5. Wheeled and crawler models, later can be upgraded and transformed, switch back and forth
6. Rear standing pedal with non-slip design, with shock absorption cushion
7. Optional, mounted counterweight 35KG*2
8. Full-time four-wheel drive, four high-torque motor drive a car
9. Hydraulic oil temperature sensor control heat dissipation
10. Power system, Bai Li Tong 23 hp, Runtong 740-1, Honda GX690. all with EPA certificate
11. Core components are imported components
2. The whole series is equipped with three pumps and three valves as standard
3. attachment's interface adopts international standard quick-change plug
4. Attachment large flow rate, up to 55 liters / per minute, basically any attachment needs flow can meet
5. Wheeled and crawler models, later can be upgraded and transformed, switch back and forth
6. Rear standing pedal with non-slip design, with shock absorption cushion
7. Optional, mounted counterweight 35KG*2
8. Full-time four-wheel drive, four high-torque motor drive a car
9. Hydraulic oil temperature sensor control heat dissipation
10. Power system, Bai Li Tong 23 hp, Runtong 740-1, Honda GX690. all with EPA certificate
11. Core components are imported components
Specification
|
No
|
Item
|
Metric
|
U.S.
|
|
1
|
Max working height (H3）
|
2473 mm
|
97.36 inch
|
|
2
|
Max pin height (H2)
|
1900 mm
|
74.8 inch
|
|
3
|
Max Dumping height (H1)
|
1458 mm
|
57.4 inch
|
|
4
|
Max Dumping distance(E)
|
594 mm
|
23.39 inch
|
|
5
|
Max Dumping Angle (a3)
|
35°
|
35°
|
|
6
|
Rollback of bucket on ground (a2)
|
25°
|
25°
|
|
7
|
Departure angle (a1)
|
22°
|
22°
|
|
8
|
Total height (H)
|
1330 mm
|
52.36 inch
|
|
9
|
Ground clearance (F)
|
122 mm
|
4.8inch
|
|
10
|
Wheel base (L1)
|
757 mm
|
29.8 inch
|
|
11
|
Overall length without bucket (L3)
|
1753 mm
|
69.02 inch
|
|
12
|
Total width (B2)
|
1090 mm
|
42.91 inch
|
|
13
|
Bucket width (B1)
|
1150 mm
|
57.09 inch
|
|
14
|
Total length with bucket (L)
|
2215 mm
|
35°
|
|
15
|
Turn radius forward turning (R)
|
1336 mm
|
52.6 inch
|
Packing & Delivery
1. LCL (Less than Container Load)
2. FCL (Full Container Load)
3. Customized
Certifications
Why Choose Us
Why Choose Us
Why did you choose us? Quality assurance: 1. Using high-quality accessories, the machine has high stability, strong reliability,
and long service life. 2. Passed dual certification (ISO/CE) both domestically and internationally, with guaranteed quality and a
one-year warranty. During the warranty period, free parts will be provided. Kind service ： 1. We provide 24/7 services through
online chat and phone calls, with zero time difference to solve your doubts and problems. 2. Choose us and you will receive
lifelong free service consultation and free video technical support. We can also provide value-added services for you in more
fields.
and long service life. 2. Passed dual certification (ISO/CE) both domestically and internationally, with guaranteed quality and a
one-year warranty. During the warranty period, free parts will be provided. Kind service ： 1. We provide 24/7 services through
online chat and phone calls, with zero time difference to solve your doubts and problems. 2. Choose us and you will receive
lifelong free service consultation and free video technical support. We can also provide value-added services for you in more
fields.
