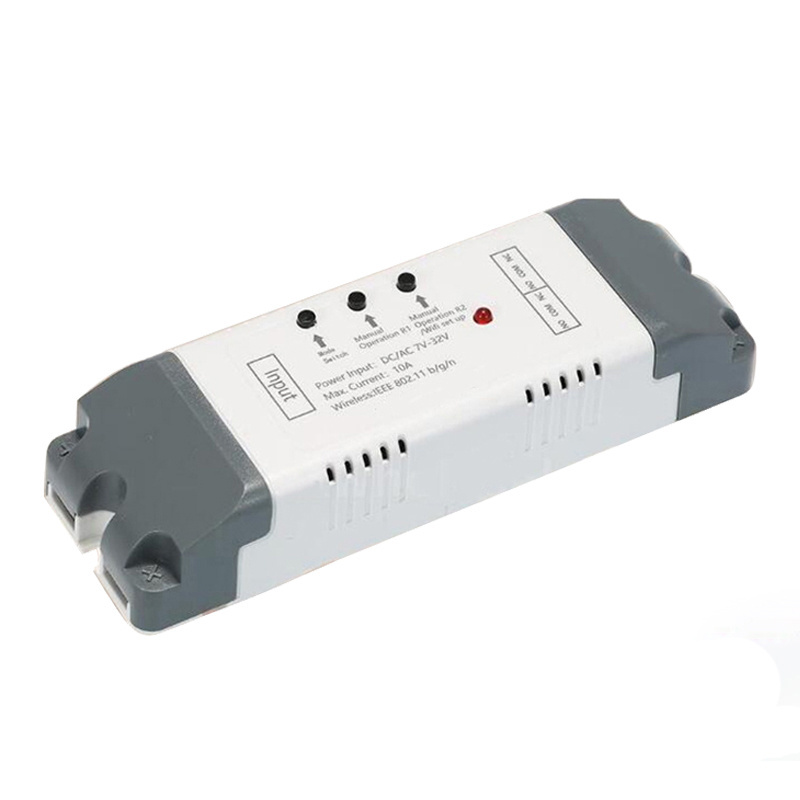

- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FD
-
Model Number:
-
2ch-s, 2ch wifi switch
-
Operating Temperature:
-
-20 to 70 degree
-
Type 2:
-
7-32V Wifi +433mhz Remote control
-
State of Assembly:
-
Ready-to-Go
-
Features:
-
Flashing
-
Control Channels:
-
2 Channels
-
Mode:
-
Inching Interlock Self-locking
-
App:
-
Ewelink
-
Size:
-
120*38*25mm
-
Wireless Standard:
-
2.4GHZ, 802.11 b/g/n(don't support 5G)
-
Voice Control:
-
Works with Alexa Google Home
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
250V
-
Customized support:
-
ewelink or tuya
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FD
-
Model Number:
-
2ch-s, 2ch wifi switch
-
Operating Temperature:
-
-20 to 70 degree
-
Type 2:
-
7-32V Wifi +433mhz Remote control
-
State of Assembly:
-
Ready-to-Go
-
Features:
-
Flashing
-
Control Channels:
-
2 Channels
-
Mode:
-
Inching Interlock Self-locking
-
App:
-
Ewelink
-
Size:
-
120*38*25mm
-
Wireless Standard:
-
2.4GHZ, 802.11 b/g/n(don't support 5G)
-
Voice Control:
-
Works with Alexa Google Home
Product Description
|
Cutover current
|
≤ 10A
|
|
Voltage
|
Type1 and Type 3 DC7-32V input,Type 2 and Type 4 AC85-250V input
|
|
Output
|
No output ( Dry contact switch)
|
|
Working Temperature
|
-20 to 70degree
|
|
Working Humidity
|
40% to 80% RH
|
|
WIFI Standard
|
2.4GHZ, 802.11 b/g/n(don't support 5G)
|
|
Size
|
120*38*25mm
|
|
APP
|
eWeLink
|
Use For:
DC/AC Motor,Access Control,Garage door,Garden door,Computer,Bulb and Other devices that need inching (jog),Self-locking and interlock funtion.
Note:Please make sure to select the right model before buying,or leave us a message before shipping.
Product Selling:
1.Supports WiFi network,remotely turn on or off connected appliance/light; 2.Supports status tracking: device status timely
provided to the "EWeLink"; 3.Supports max 8 enabled scheduled/countdown/loop timers for each device; 4.Supports numerous WiFi
smart switches on one smart phone; 5.Works with Amazon Echo, Echo Dot, Amazon Tap; 6.Works with Google Home and Google Nest.
provided to the "EWeLink"; 3.Supports max 8 enabled scheduled/countdown/loop timers for each device; 4.Supports numerous WiFi
smart switches on one smart phone; 5.Works with Amazon Echo, Echo Dot, Amazon Tap; 6.Works with Google Home and Google Nest.
Working mode:
1.Inching mode : Switch on channel 1 , channel 1 will be automatically closed after 0.5-3600s. Channel 2 is same to the channel 1
. 2.Self-locking : like normal 2 channle switch , each channel could be switched on/off seperately . 3.Inter lock : Switch on any 1 channel , the other channels will be switched off automatically .
. 2.Self-locking : like normal 2 channle switch , each channel could be switched on/off seperately . 3.Inter lock : Switch on any 1 channel , the other channels will be switched off automatically .
How to learning 433mhz and Clearing code?
Learning: 1.hold 433 Pairing button(R1 or R2) for 4 seconds 2.Long press any key match on remote,pairing successfully Clear code:
Long press the pairing button for 10-15 seconds
Long press the pairing button for 10-15 seconds
Timer & Schedule
Set up timing schedules to turn on/off lights
Share Control
Share control of your home appliances to your family or friends so that they can also control the devices remotely
APP Control
1.One APP can control multiple device 2.One device can be controled by multiple phone.
Voice Control
Compatible with Google assistant & Alexa
How to set Inching/Interlock mode on the APP?
