Quick Details
-
Brand Name:
-
SNADI
-
Model Number:
-
CM-100A
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
20KW
-
Max PV Voltage:
-
420V
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
1 Year
-
Charge mode:
-
MPPT Automatic Maximum Power Point Tracking
-
Charge Method:
-
Three Stages
-
System Type:
-
96V/192V
-
Soft Start Time:
-
≤10s
-
Static Power:
-
≤6W
-
Machine Efficiency:
-
≥96.5%
-
PV Module Utilization:
-
≤99.97%
-
Noise:
-
≤50dB
-
Humidity:
-
0~90%RH
-
Color:
-
Green
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
China
-
Brand Name:
-
SNADI
-
Model Number:
-
CM-100A
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
20KW
-
Max PV Voltage:
-
420V
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
1 Year
-
Charge mode:
-
MPPT Automatic Maximum Power Point Tracking
-
Charge Method:
-
Three Stages
-
System Type:
-
96V/192V
-
Soft Start Time:
-
≤10s
-
Static Power:
-
≤6W
-
Machine Efficiency:
-
≥96.5%
-
PV Module Utilization:
-
≤99.97%
-
Noise:
-
≤50dB
-
Humidity:
-
0~90%RH
-
Color:
-
Green

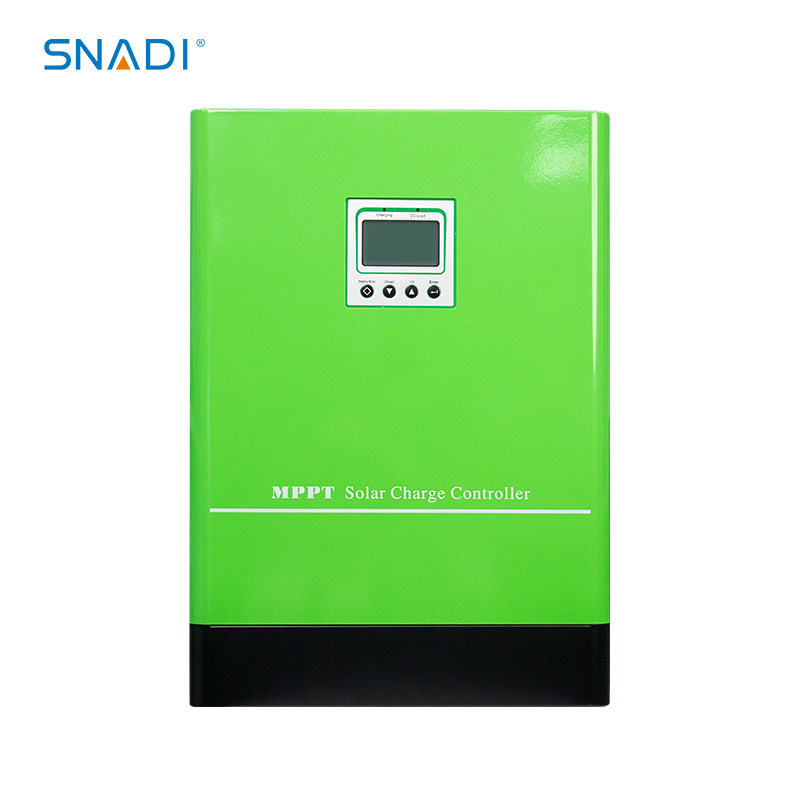

100A Solar Panel MPPT Controller 100 amp Charge Controller Price For
Solar Power System
Product Description
· Innovative maximum power point tracking technology,the conversion rate of up to 97% · Quick scan of the entire I-V curve,Effcient track the maximum power point
· Theree types of lead-caid battery,sealed,colloid,open type battery and lithium battery series charging procedures are optional
· With the functions of over charge,over discharge,overload and short circuit automatic protection
· With RS485 communication interface, it can communicate with multiple and the upper computers,which is convenient to check the operating parameters of the controller.
Specification
|
Model
|
|
80A
|
100A
|
|||
|
Charging Mode
|
|
MPPT Automactic Maximum Power Point Tracking
|
|
|||
|
Charging Method
|
|
Three stages:Constant Current(MPPT),Balanced Charging,Floating Charge
|
|
|||
|
System Type
|
96V/192V
|
Automatic Identification/Manual Setting
|
|
|||
|
System Identification Voltage Range
|
96V System
|
DC72V-DC120V
|
|
|||
|
|
192V System
|
DC144V-DC240V
|
|
|||
|
Soft Start Time
|
96V/192V
|
≤10s
|
|
|||
|
Dynamic Response Recovery Time
|
96V/192V
|
≤500us
|
|
|||
|
Static Power
|
96V/192V
|
≤6W
|
|
|||
|
Machine Effciency
|
96V/192V
|
≥96.5%
|
|
|||
|
PV Module Utilization
|
96V/192V
|
≤99.97%
|
|
|||
|
Input Characteristics
|
|
|
|
|||
|
MPPT Operating Voltage Range
|
96V System
|
DC130V-DC180V
|
|
|||
|
|
192V System
|
DC260V-DC420V
|
|
|||
|
Maximum Solar Panel nput Power
|
96V System
|
8500W
|
10600W
|
|||
|
|
192V System
|
16000W
|
20000W
|
|||
|
Output Characteristics
|
|
|
|
|||
|
Optional Battery Type(Default is lead-acid maintenance-free battery)
|
96V/192V
|
Lead-acid maintenance-free Battery,Gel Battery,Liquid Battery,Lithium Bttery(Can alao be customized forother types of battery)
|
|
|||
|
Current Limiting Protection
|
96V/192V
|
82A
|
102A
|
|||
|
Temperature Coefficient
|
96V/192V
|
±0.02%/℃
|
|
|||
|
Temperature Compensation
|
96C/192V
|
14.2V-(Maxumum Temperature -25℃)*0.3
|
|
|||
|
Output Regulation Accuracy
|
96V/192V
|
≤±1.5%
|
|
|||
