- Product Details
- {{item.text}}
Quick Details
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
24V /220V
-
Lamp Luminous Flux(lm):
-
2000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 45
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ONN-M9R
-
Brand Name:
-
ONN
-
Item Type:
-
Machine Tool Working Lamps
-
Product Name:
-
Industrial CNC Machine Light
-
Voltage:
-
24V / 220V
-
Power Rating:
-
7W/12W/16W/20W
-
Length:
-
300/400/600/800mm
-
Luminous Flux:
-
100-110lum / W
-
CCT:
-
2700-3200K/4000-4500K/5500-6000K
-
Lamp Body Material:
-
Aluminum / Tempered Glass
-
Mounting:
-
Fixed by T-shape strap and screws
-
Certification:
-
CE FCC IP67
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
2-Year
-
Power Supply:
-
AC, DC
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
24V /220V
-
Lamp Luminous Flux(lm):
-
2000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 45
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ONN-M9R
-
Brand Name:
-
ONN
-
Item Type:
-
Machine Tool Working Lamps
-
Product Name:
-
Industrial CNC Machine Light
-
Voltage:
-
24V / 220V
-
Power Rating:
-
7W/12W/16W/20W
-
Length:
-
300/400/600/800mm
-
Luminous Flux:
-
100-110lum / W
-
CCT:
-
2700-3200K/4000-4500K/5500-6000K
-
Lamp Body Material:
-
Aluminum / Tempered Glass
-
Mounting:
-
Fixed by T-shape strap and screws
-
Certification:
-
CE FCC IP67

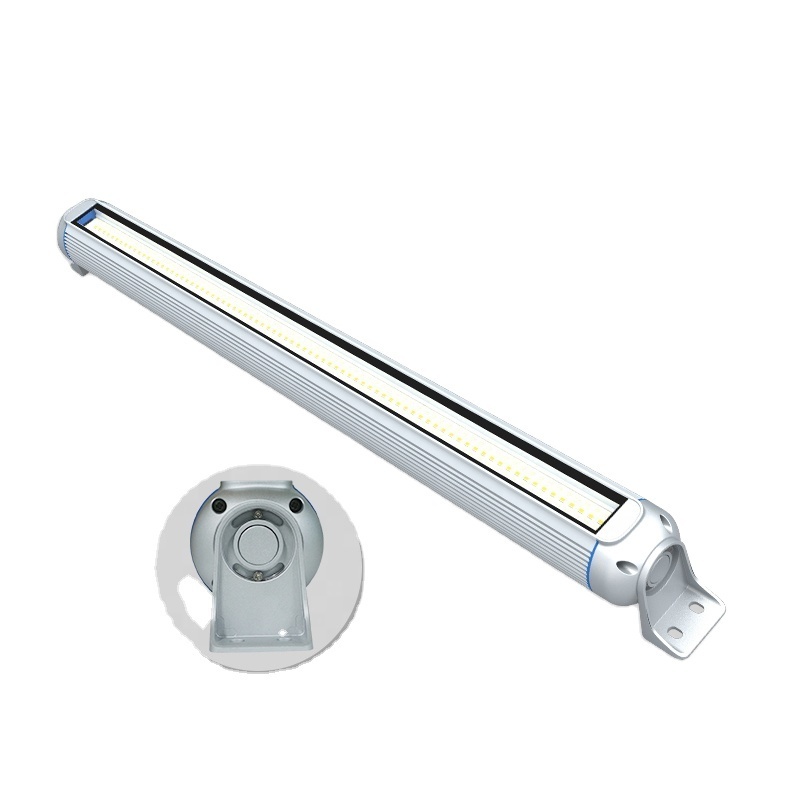

ONN-M9R 220V IP67 Explosion Proof CNC Machine Light Industrial Workshop Garage Lighting
Features
of Led Machine Light
1. Made of Aluminium housing & Tempered glass . Good heat dissipation .
2. IP67 Water-proof connector .
3. Adopt high efficiency smd 2835 and Isolated driver . Long lifespan .
4. Laser printing Logo on end cap , can highlight your brand .
5. Universal mounting bracket , can adjust view angle freely .
6. OEM Available : Customized Length , power , color temperature ......
Specifications
|
Picture |
Product Code: |
ONN-M9R |
|
|
Item Type |
Led Machine Work Light |
|
Input voltage: |
AC100-240v ,DC/AC 24v |
|
|
Length: |
300 / 400 / 600 / 800mm |
|
|
Wattage: |
7W/12W/16W/20W |
|
|
Mounting : |
Fixed with clips or pin screw |
|
|
LED: |
Smd 2835 |
|
|
Lumens: |
2000lm |
|
|
Efficiency: |
100lm/W |
|
|
CRI: |
>80 |
|
|
Color: |
Warm white / Neutral white / Cool white |
|
|
Color temp.: |
2700-3200K / 4000-4500K / 5500-6500K |
|
|
Beam angle: |
120 degree |
|
|
Material: |
Aluminium body + Tempered glass |
|
|
Body color: |
Silver |
|
|
Certificates: |
CE, FCC , CCC , IP67 , ISO9001 |
|
|
Life Span: |
50000 Hours |
Product Size Drawing
|
Packing material |
Foam bag + Innerbox + cartons |
|||
|
Size of products(MM) |
300 |
400 |
600 |
800 |
|
N/W of one light (Kg) |
0.53 |
0.705 |
1.02 |
1.22 |
|
G/W of total cartons (Kg) |
15.5 |
10.5 |
15.5 |
13.5 |
|
Qty in carton (PCS) |
24 |
12 |
12 |
9 |
|
Size of inner box(L*W*H)mm |
780*285*233 |
580*285*233 |
780*285*233 |
990*210*233 |
|
Size of outer carton(L*W*H)mm |
770*60*70 |
570*60*70 |
770*60*70 |
970*65*70 |
Sales terms
- MOQ: Full carton ( 12pcs ) . Accept sample order
- Warranty: 3 Years
- Payment: T/T , Paypal , Western Union , Alipay
- Production Time: 3-5 days for sample order, 5-7 days for official order
Application
All kinds of Numerical CNC Machine , Sculptor , Electrical Discharge Machine , Electric Discharge Machine , Laser Welder , Grinder . All kind of refrigeratory , cold storage , assembly line Machineinterior lighting, food factory, pharmaceutical factory, aquaculture industry, mushroomindustry .
Brief Introduction :
Certificates : TUV CE , FCC ,CCC , cTUVus , IP65 , IP67 , ISO9001 ...
