Quick Details
-
Model Number:
-
GW718B-60A/80A
-
Max. Switching Current:
-
100A
-
Max. Switching Voltage:
-
28VDC/250VAC
-
Max. Switching Power:
-
2200W/20000VA
-
Weight:
-
45g
-
MOQ:
-
50PCS
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YDCT
-
Model Number:
-
GW718B-60A/80A
-
Max. Switching Current:
-
100A
-
Max. Switching Voltage:
-
28VDC/250VAC
-
Max. Switching Power:
-
2200W/20000VA
-
Weight:
-
45g
-
MOQ:
-
50PCS
Why choose us? What can we do for you?
We are the top ten leading brand in China.
♦ Founded in 1992 and experienced,competitive OEM factory.
♦ We have large capacity,OEM for well-known brands.
♦ We have our own technical and mould deparmtent, ready for any customized products.
♦ Sales network expands from over domestic sales to all over the world.
We are the top ten leading brand in China.
♦ Founded in 1992 and experienced,competitive OEM factory.
♦ We have large capacity,OEM for well-known brands.
♦ We have our own technical and mould deparmtent, ready for any customized products.
♦ Sales network expands from over domestic sales to all over the world.
Any requirements or question,welcome to
"Send"
us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
Product Description
Certification

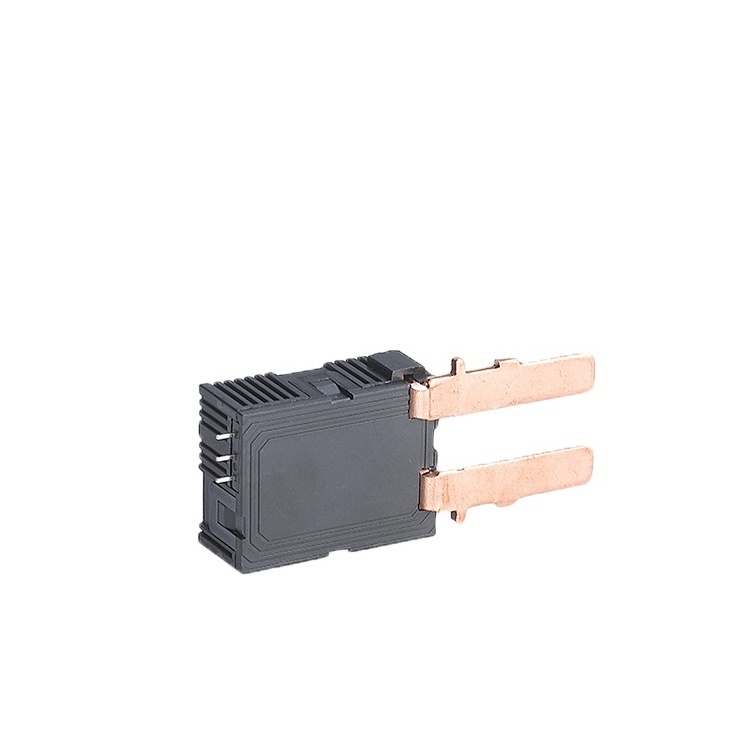

Details Images
Specification
|
Coil Parameters(at 20 ℃ )
|
|
|
|
|
|
|||||
|
Rated Coil Voltage
|
|
9VDC
|
12VDC
|
24VDC
|
48VDC
|
|||||
|
Coil Resistance
|
Single Coil(±10%Ω)
|
32
|
57
|
230
|
920
|
|||||
|
|
Double Coil±10%Ω)
|
16
|
29
|
115
|
460
|
|||||
|
Power Consumption
|
|
Single Coil 2.5W;Double Coil 5W
|
|
|
|
|||||
|
Pick-up Voltage
|
|
≤75%(Rated Coil Voltage)
|
|
|
|
|||||
|
Drop-out Voltage
|
|
≤75%(Rated Coil Voltage)
|
|
|
|
|||||
|
Max. Applicable Voltage
|
|
≤120%(Rated Coil Voltage)
|
|
|
|
|||||
|
Pick-up Time (At Rated Voltage)
|
|
≤50ms
|
|
|
|
|||||
|
Drop-out Time (At Rated Voltage)
|
|
≤50ms
|
|
|
|
|||||
|
Bounce Time
|
|
≤2ms
|
|
|
|
|||||
|
Characteristics
|
|
|
||
|
Ambient Temp
|
|
-40~+70℃
|
||
|
Ambient Humidity
|
|
≤75%(Annually average)
|
||
|
Anti-vibration
|
|
10~55Hz,0.5mm (Double Amplitude)
|
||
|
Anti-shock
|
|
98m/S2,11ms
|
||
|
R.H.
|
|
45%~85%
|
||
|
Contact Resistance
|
|
≤2.0mΩ (1A/6VDC)
|
||
|
Certification
|
|
UC3/RoHS/VDE
|
||
|
Insulation Resistance
|
|
1000MΩ (500VDC)
|
||
|
Dielectric Strength
|
Between Contacts
|
2000 VAC 50/60Hz (1 Minute)
|
||
|
|
Between Contact & Coil
|
4000 VAC 50/60Hz (1 Minute)
|
||
|
|
Between Contacts&Contact
|
6000 VAC 50/60Hz (1 Minute)
|
||
|
Life
|
Electrical Life
|
≥1*104OPS
|
||
|
|
Mechanical Life
|
≥5*105OPS
|
||
