Quick Details
-
Product name:
-
Garbage compactor truck
-
Tank material:
-
Carbon steel
-
Wheelbase:
-
6200+1310+1310mm
-
Springs:
-
-/8/8/8;-/4/4/4
-
Driving Type:
-
4X2 6X4 8X4
-
Engine power:
-
180hp;210hp;240hp
-
Garbage truck type:
-
Hydraulic compactor
-
Chassis brand:
-
Dongfeng, Foton, Sinotruk, JAC...
-
Certificate:
-
CCC;ISO...
-
Certification:
-
CCC, ISO...
Quick Details
-
Engine Capacity:
-
Euro2 3 or 6
-
Place of Origin:
-
China
-
Brand Name:
-
DALI
-
Product name:
-
Garbage compactor truck
-
Tank material:
-
Carbon steel
-
Wheelbase:
-
6200+1310+1310mm
-
Springs:
-
-/8/8/8;-/4/4/4
-
Driving Type:
-
4X2 6X4 8X4
-
Engine power:
-
180hp;210hp;240hp
-
Garbage truck type:
-
Hydraulic compactor
-
Chassis brand:
-
Dongfeng, Foton, Sinotruk, JAC...
-
Certificate:
-
CCC;ISO...
-
Certification:
-
CCC, ISO...

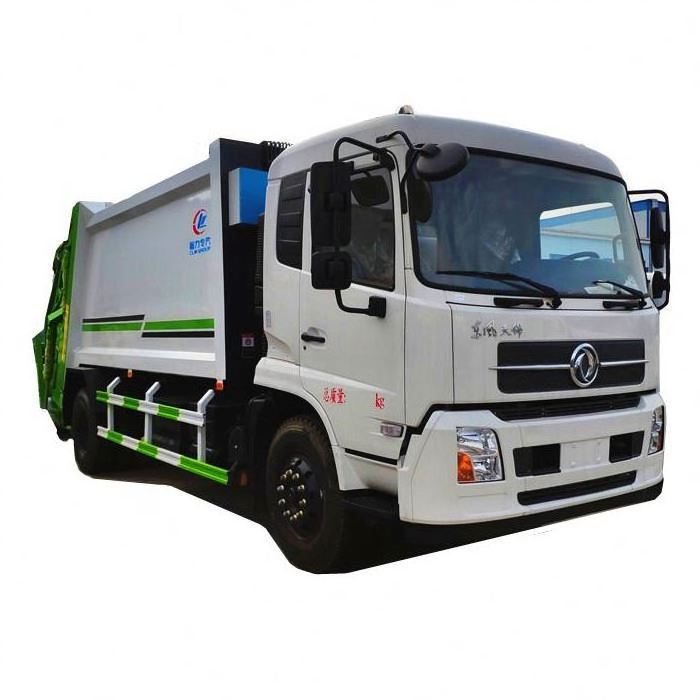

Garbage Compactor 8M3 Waste Collecting For Sale Collection Trucks Isuzu Collector Trash Mini Pickup Rear Loading Rubbish Truck
Standard configurations :
1.Dustbin material: Corrosion resistance carbon steel
2. Emission standard: Euro 6 (other emissions optional)
3. Driving type: 4*2; 4*4; 6*4; 8*4
4. Loading& off-loading type: Hydraulic lift automatical type.
| Technical Parameters | |
| Overall | |
| Vehicle name | 8-12 CBM Garbage Compactor Truck |
| Vehicle model | DL5100GT |
| Overall dimensions | Approximate 7580×2480,2550×3100,3200,3500(mm) |
| GVW | 18000kg |
| Total net weight | 8100(Kg) |
| Rated loading capacity | 9705(Kg) |
| Max speed | 98Km/h |
| Chassis | |
| Chassis brand | DONGFENG |
| Cab type | Double |
| Allowable passengers in cab | 2 |
| Traction system | 4*2 |
| Number of axles | 2 pcs |
| Wheel base | 4500(mm) |
| F/R axle | 6500/11500 |
| F/R track base | 1880 /1860 |
| F/R suspension | 1430/1650(mm) |
| Approach/departure angle | 20/13(°) |
| Tire specification | 10.00R20 18PR |
| Transmission | Manual |
| Operation control system | Electrical hydraulic control |
| ABS (anti-lock braking system) | 3631010-C2000,4460046440 |
| Engine | |
| Engine model | ISD180(ISD210 and ISD270 optional) |
| Engine brand | C umins |
| Emission standard | Euro 5 |
| Power | 180 hp(210hp and 270hp optional) |
| Exhaust | 4500ml( or 6700ml) |
| Rated speed | 2500rpm |
| Maximum torque | 700N.m |
| Maximum torque speed | 1200-1600rpm |
| Upper Part | |
| Dustbin capacity | 8-12CBM |
| Dustbin material | High Quality Q345 manganese steel |
| Dustbin type | Arc |
| Welding type | Dustbin full welding (automatic welding) |
| Thickness | Edge:5mm/Bottom: 5mm |
| Other configuration | Double tank at tail and side; Suizhou star oil tank;High density hydraulic tubing;Zhongmei multiplex valve; Oil pump;Filler lift cylinder with locking device;Equipped with SIEMENS PLC electronic control system (manual automatic dual purpose) ;Bucket flip mechanism or garbage flip bucket;Tail light,convenient for night operation; Body high profile light;Side light;Working lights;Double pumps and double compression;High pressure filter cup. |
We provide free training for all our clients, both online and live training for option. If you need, we can also send engineers to give training to your at your site.
--- Packing: Waxed or nude, or covered with tarpaulin package.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
