Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RFVOTON
-
Model Number:
-
BNC Connector
-
Frequency:
-
DC-1G / DC-3G
-
Impedance:
-
50ohm/75ohm
-
Compliant:
-
ISO9001:2000 CE ROHS FCC
-
Material:
-
Copper
-
Working Voltage:
-
500 VRMS
-
Insulation Resistance:
-
5000min
-
Durability:
-
500Cycles min
-
VSWR:
-
1.2
-
Plating:
-
Nickel Plated
-
Describe:
-
bnc male connector
Quick Details
-
Type:
-
BNC
-
Application:
-
RF
-
Gender:
-
Male
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RFVOTON
-
Model Number:
-
BNC Connector
-
Frequency:
-
DC-1G / DC-3G
-
Impedance:
-
50ohm/75ohm
-
Compliant:
-
ISO9001:2000 CE ROHS FCC
-
Material:
-
Copper
-
Working Voltage:
-
500 VRMS
-
Insulation Resistance:
-
5000min
-
Durability:
-
500Cycles min
-
VSWR:
-
1.2
-
Plating:
-
Nickel Plated
-
Describe:
-
bnc male connector

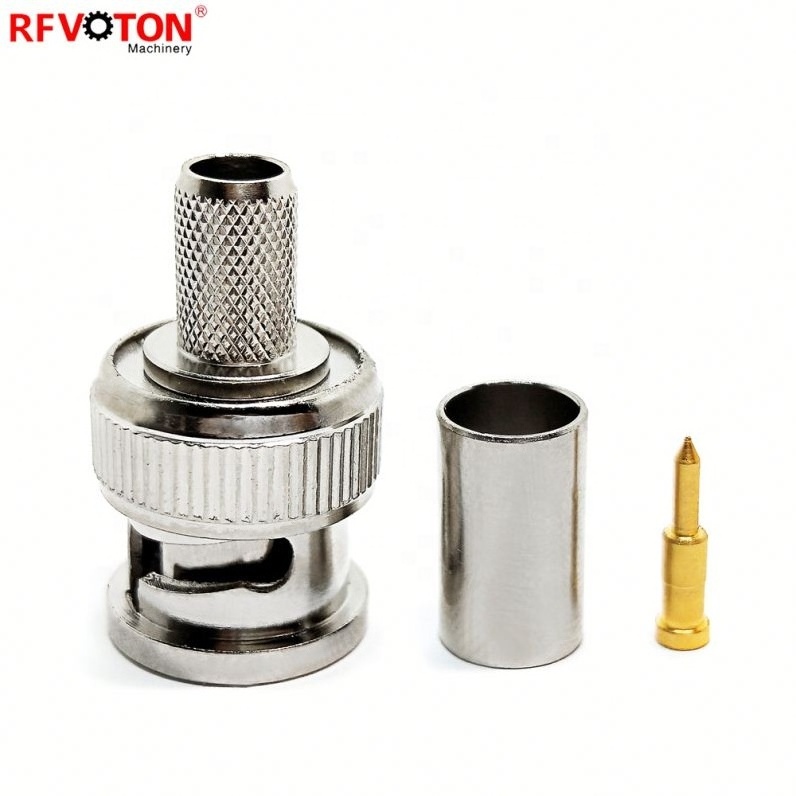

75ohm RG59 cable male bnc crimp connector for CCTV
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
bnc male connector
bnc connector CCTV
bnc connector RG59
|
Temperature range |
-65~+165°C (PE Cable -40~+85°C)
|
|
Vibration |
MIL-STD-202, Method 213
|
|
Impedance |
50 Ω,75Ω |
|
Frequency Range |
DC – 4GHz |
|
Working Voltage |
500V max |
|
Withstand Voltage
|
1500V rms |
|
Center Contact |
≤ 1.5mΩ
|
|
Outer Contact
|
≤1mΩ |
|
Insulation resistance |
≥5000M OHM |
|
Durability (mating) |
≥500 (cycles) |
|
Average powe |
3KW max |
|
Insertion loss
|
0.15dB (7.5GHz max) |
|
VSWR
|
Straight ≤ 1.22 Right angle ≤ 1.3 |
Material & Plating
|
Body |
Brass |
Nickel plated / Alloy plated |
|
Inner Pin |
Brass |
Gold plated |
|
Resilient Contact |
Beryllium Copper |
Gold plated |
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
|
O-ring sealing |
Silicone Rubber |
|
APPLICABLE STANDARD
MIL-C-39012;
CECC 22210;
IEC 60169-16.
