Quick Details
Quick Details
-
Brand Name:
-
JAKON
-
Place of Origin:
-
Jiangxi, China
-
Model Number:
-
JK76
Product Description
| Panel specifications | 72x72mm |
| The size of hole | 68x68mm |
| Display mode | LED six digit digital tube |
| Count range | 0-999999 |
| The input signal | Contact signal or pulse signal |
| The control mode | Dual Relay contact output |
| Working power supply | DC12V/DC24V/AC110V/AC220V |
| The output power | 12V |
| Working temperature | -50-50 c |

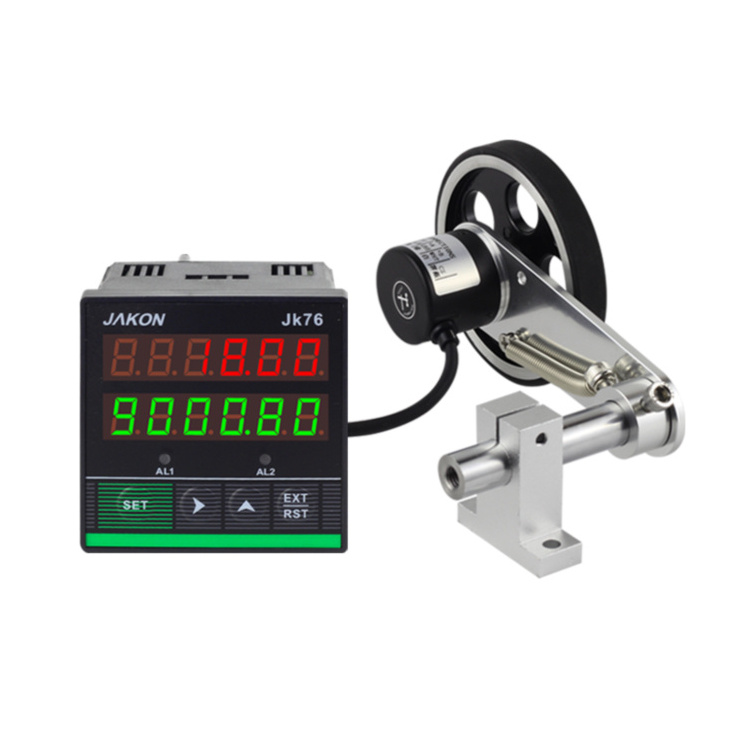

jk76 Pulse Coil Counting Machine Length Counter Meter
| Regular pattern |
1. Double relays AL1 and AL2, corresponding to two digital relays.For example, let AL1 be 90;
AL2 is 100, AL1 outputs at 90, and AL2 outputs at 100 2. You can set to automatically clear 0 when the value reaches 100, or you can set to continue to add and manually clear 0. 3. The upper row counts, and the lower row displays the preset number. |
| Output mode |
1. Upper row: Set AL1 as 100. When the upper row reaches 100, the relay outputs.
2 lower row: display the total, has been accumulated, can be set, to return to 0, relay output. |
| Batch mode |
1. Upper row: Set AL1 as 100, count to 100 return to 0, relay output, lower row add 1.
2 Lower row: displays the number of batches. When the upper row reaches the set number, the lower row increases by 1. |
