Quick Details
-
product Name:
-
brass 3 holes valve
-
Material:
-
58#Brass with electroplate
-
Weight:
-
140kg
-
Product dimension:
-
see the drawing
-
working pressure:
-
12 bras
-
air tight test pressure:
-
24bars
-
strengh testing pressure:
-
30bars
-
Connecting Thread:
-
M30*1.5 / M10*1
-
starting temperature:
-
68
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Tairan
-
Model Number:
-
customized
-
product Name:
-
brass 3 holes valve
-
Material:
-
58#Brass with electroplate
-
Weight:
-
140kg
-
Product dimension:
-
see the drawing
-
working pressure:
-
12 bras
-
air tight test pressure:
-
24bars
-
strengh testing pressure:
-
30bars
-
Connecting Thread:
-
M30*1.5 / M10*1
-
starting temperature:
-
68
Products Description

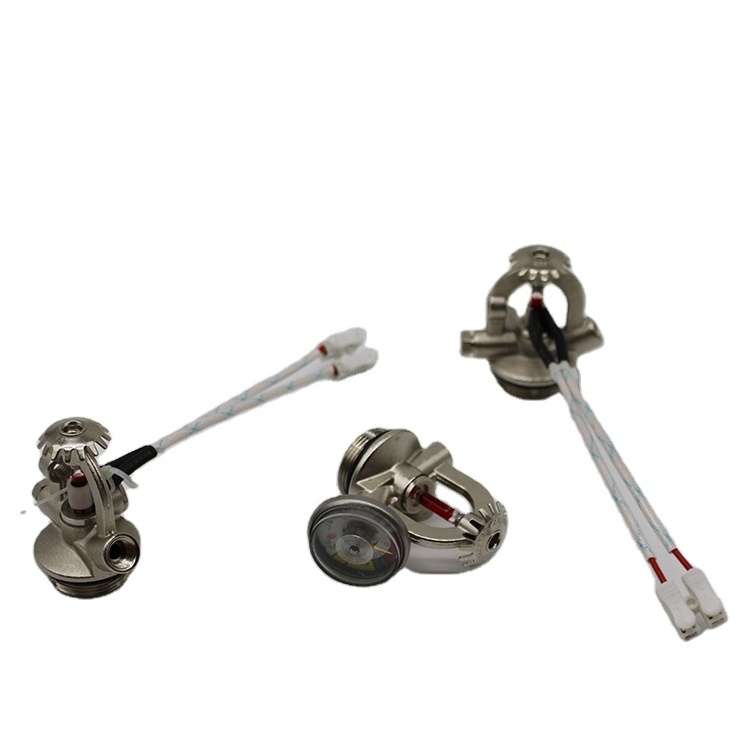

3 Holes/4 Holes suspension Valve instruction:
Three-hole and four-hole suspension valves are suitable for hanging dry powder fire extinguishing equipment. The suspension valve is beautiful in style, small in size, safe and reliable, and widely used in different series fire extinguisher. The nozzle part of the hanging valve is equipped with a temperature sensitive glass ball. Under normal circumstances, the upper end of the glass bubble is against the sealing piece at the nozzle. When the fire is begin, the temperature rises, the liquid in the glass bubble automatically expands and breaks due to heat, and the sealing sheet automatically falls down. The dry powder in the fire extinguisher is ejected from the nozzle under the action of pressure to extinguish the fire.
Three-hole and four-hole suspension valves are suitable for hanging dry powder fire extinguishing equipment. The suspension valve is beautiful in style, small in size, safe and reliable, and widely used in different series fire extinguisher. The nozzle part of the hanging valve is equipped with a temperature sensitive glass ball. Under normal circumstances, the upper end of the glass bubble is against the sealing piece at the nozzle. When the fire is begin, the temperature rises, the liquid in the glass bubble automatically expands and breaks due to heat, and the sealing sheet automatically falls down. The dry powder in the fire extinguisher is ejected from the nozzle under the action of pressure to extinguish the fire.
|
Product Name
|
Suspension Valve
|
Brand
|
customized
|
|
Material
|
58#Brass
|
Weight(kg)
|
140
|
|
Strength test pressure
|
30 bars
|
Working Pressure
|
12 bras
|
|
Connecting Thread
|
M30*1.5/M10*1
|
Air Tight Test Pressure
|
24 bars
|
|
Starting Temperature
|
68℃
|
Size(mm)
|
see the drawing
|
