Quick Details
-
Specification:
-
Normal
-
Product name:
-

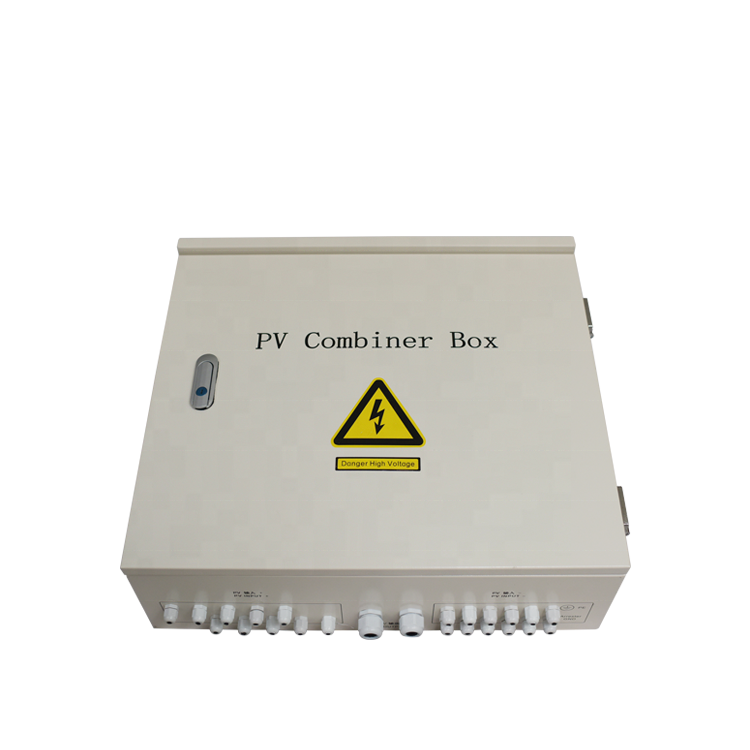

8 input 8 output combiner box PV solar junction box prices
-
Solar panel:
-
Poly or mono
-
Certificate:
-
CE
-
Type:
-
Grid Solar Home Sytem/OFF grid solar power system
-
Material:
-
Galvanized iron shell plating.
-
Load Power (W):
-
Depands
-
Output Voltage (V):
-
500V 1000V
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
deming
-
Model Number:
-
CB
-
Specification:
-
Normal
-
Product name:
-
8 input 8 output combiner box PV solar junction box prices
-
Solar panel:
-
Poly or mono
-
Certificate:
-
CE
-
Type:
-
Grid Solar Home Sytem/OFF grid solar power system
-
Material:
-
Galvanized iron shell plating.
-
Load Power (W):
-
Depands
-
Output Voltage (V):
-
500V 1000V
Combiner box use for on grid solar power system
Combiner box use for off grid solar power system
Technical data sheet of 8 in 8 out PV combiner box
|
Model |
DM-CB 8/8 |
|
Basic |
|
|
Max. DC Voltage |
1000 V |
|
Max. DC Inputs |
8 |
|
Number of output |
8 |
|
Rated fuse current |
15A |
|
Allowable input current |
10 A |
|
Output Circuit Breaker |
16 A |
|
Max. Output current |
10 A |
|
Diameter of wire of input |
2.5 mm² |
|
Diameter of wire of output |
2.5 mm² |
|
Diameter of wire for ground |
10 mm² |
|
PV dedicated SPD |
Yes |
|
Anti-reverse |
Yes |
|
IP |
IP65 |
|
Environment |
|
|
Normal working temperature/humidity |
-40 ℃ -70 ℃ , humidity 95% No Condensation, No corrosive gas |
|
Altitude( m ) |
< 2000m |
|
Alarm |
DC Arc fault state, voltage alarm, current alarm, temperature alarm etc |
|
Optional |
|
|
Communication Interface |
RS485/Modbus-RTU Protocol |
|
Current monitor for each string |
Yes |
|
Signal Arrester |
Yes |
Technical data sheet of 12 in 2 pv combiner box
|
Model |
DM-2CB 12 |
|
Basic |
|
|
Max.PV Array Voltage |
1000V |
|
Max. PV Array parallel Inputs |
12 |
|
Rated fuse current(replaceable) |
15A |
|
Allowable input current |
10A |
|
Output Circuit Breaker |
80A |
|
Max. Output current |
60A |
|
Diameter of wire of input PV array |
2.5 mm² |
|
Diameter of wire of output PV array |
10 mm² |
|
Diameter of wire for ground |
10 mm² |
|
PV dedicated SPD |
yes |
|
Signal Arrester |
yes |
|
IP |
IP65 |
|
Size(MM) |
53 0* 58 0*2 00 MM |
|
Weight |
18 KG |
|
Environment |
|
|
Normal working temperature/humidity |
-25℃-60℃,humidity 95% No Condensation,No corrosive gas |
|
Temperature range |
-50℃-125℃ |
|
Altitude(m) |
<2000m |
|
Alarm |
DC Arc fault state, voltage alarm, current alarm, temperature alarm etc |
|
Optional |
|
|
Communication Interface |
RS485/Modbus-RTU Protocol |
|
Current monitor for each string |
Yes |
