Quick Details
-
Part number:
-
rubber track chassis rubber track
-
Application:
-
agriculture machines gardening machinery, ,wheelchair,
-
Model:
-
customized size
-
Key words:
-
rubber track chassis rubber track undercarriage
-
Delivery:
-
Sea
-
Material:
-
rubber &iron frame
-
Package:
-
plywood pallet
-
Payment Term:
-
TT.western Union.trade Assurance,Paypal
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KCM, KCM
-
Minimum Order Quantity::
-
1 Piece
-
Part number:
-
rubber track chassis rubber track
-
Application:
-
agriculture machines gardening machinery, ,wheelchair,
-
Model:
-
customized size
-
Key words:
-
rubber track chassis rubber track undercarriage
-
Delivery:
-
Sea
-
Material:
-
rubber &iron frame
-
Package:
-
plywood pallet
-
Payment Term:
-
TT.western Union.trade Assurance,Paypal

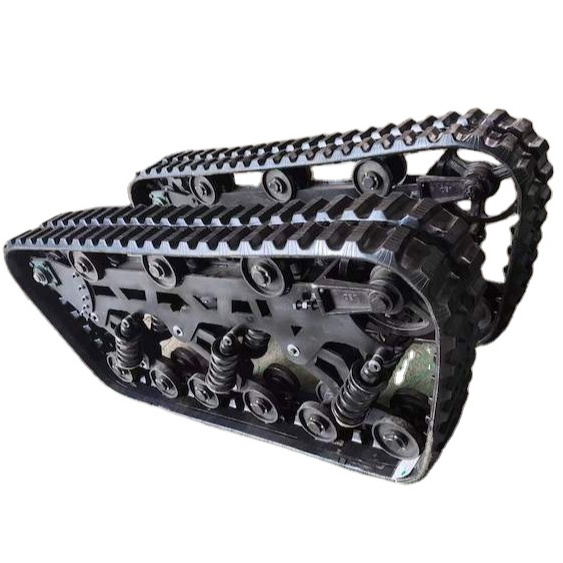

We can customize various tracked undercarriage systems and the load capacity is from 0.5 ton to 20 ton. It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers offer you best solutions!
Below is our small size, for big size,please kindly contact us
|
Model |
Length |
Width |
Height |
Sprocket Diameter |
Rubber Track Model/Width |
Rubber track links |
Weight |
Weight-loading |
Frame |
|
Kcm-40 |
540mm |
545mm |
150mm |
140mm |
40/40mm |
27 |
26.5kg |
50kg |
Aluminum Alloy Bracket |
|
KCM-50 |
810mm |
377mm |
165mm |
99mm |
KCMDG-50/50mm |
75 |
50kg |
100kg |
Stainless Steel Bracket |
|
KCM-76 |
940mm |
550mm |
210mm |
200mm |
KCM-A/76mm/KCM-B/60mm |
138/84 |
24.15kg |
150kg |
Aluminum Alloy Box |
|
KCM-100 |
700MM |
520MM |
240MM |
197MM |
KCM-A/100mm |
40 |
95kg |
100kg |
Aluminum Alloy Box |
|
KCM-70 |
590mm |
530mm |
250mm |
172mm |
KCM-70/70mm |
28 |
17.85kg |
100kg |
|
|
KCM-70 |
800MM |
570MM |
300MM |
195.7MM |
KCM-70/70mm |
43 |
44kg |
150kg |
Aluminum Alloy Box |
|
KCM-70 |
1010MM |
540MM |
410MM |
195.7MM |
KCM-70/70mm |
54 |
106kg |
150kg |
Aluminum Alloy Box |
|
KCM-100 |
640mm |
520mm |
260mm |
212mm |
KCM-A/ 100mm |
36 |
46kg |
75kg |
Square Tube |
The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
