Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIANZHI
-
Model Number:
-
10-150 (3/8"-6")
-
Thread:
-
BS21/ISO7-1/NPT
-
Mechanical Properties:
-
GB/T 9440 ,KTH330-06 BS/EN 10242
-
Overall Dimension:
-
BS EN1562 1997
-
Water Pressure Test:
-
Using pressure test, test not below 0.5Mpa
-
Thickness of Hot-Dip Galvanization:
-
Average Thickness of Hot-Dip Galvanization: 70um
-
Certificate:
-
ISO 9001:2008;FM;CE
-
Surface treatment:
-
Hot Galvanized;BLACK PAINTING
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Y shape
-
Head Code:
-
Round banded
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIANZHI
-
Model Number:
-
10-150 (3/8"-6")
-
Thread:
-
BS21/ISO7-1/NPT
-
Mechanical Properties:
-
GB/T 9440 ,KTH330-06 BS/EN 10242
-
Overall Dimension:
-
BS EN1562 1997
-
Water Pressure Test:
-
Using pressure test, test not below 0.5Mpa
-
Thickness of Hot-Dip Galvanization:
-
Average Thickness of Hot-Dip Galvanization: 70um
-
Certificate:
-
ISO 9001:2008;FM;CE
-
Surface treatment:
-
Hot Galvanized;BLACK PAINTING

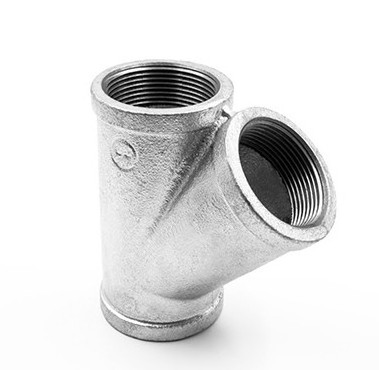

Y 45°Tees Malleable iron fittings cast iron material
Black painting and hot -dipped galvanized
BS21/ISO7-1 and NPT thread
UL /FM/ISO/CE/ approved.Samples available.
30 years production experience in the field of mellable iron fittings and cast products.
| Product name |
Malleable iron fittings (3/8"-4" or 6") (Elbows,Tees,Crosses,Sockets,plugs,caps,backnuts,Unions,bushings,nipples ) |
| Material | Malleable iron BS EN1562 B300-06 |
| Surface Finish | Black and hot-dipped galvanizing |
| Standard | BS EN 10242 /ISO 49/7-1 /JIS B2301 /ASTM A197 |
| Thread | BSP/NPT /ISO7-1 |
| Certificate | UL/FM/ISO/CE/ABNT |
| Application | Conveying water,oil and gas |
| Item | Description | Size | PCS/Carton | N.W/Carton | USD/100 (M16Price) |
| Y 45°Tees | |||||
| 1/2" | 180 | 29 | 22 | ||
| 3/4" | 96 | 24 | 31 | ||
| 1" | 72 | 27 | 49 | ||
| 1-1/4" | 36 | 21 | 74 | ||
| 1-1/2" | 30 | 22 | 95 | ||
| 2" | 12 | 14 | 143 | ||
| 2-1/2" | 10 | 18 | 320 | ||
| 3" | 6 | 15 | 420 | ||
| 4" | 2 | 9 | 760 | ||
| Tensile Strength: ≥330Mpa ;Elongation Rate: ≥8%;Hardness:≤HB150 | |||||
| Suitable for pressure Max 1.6MPA,temperature Max 200°C | |||||
| Chemical:C:2.4~2.9 Si:1.2~1.7 Mn:0.3~0.55P:0.12 S:0.18 Cr:0.09 | |||||
| standardGB/T3287-2000;BS EN10242;DIN EN10242 | |||||
| Certificate:UL; ISO;FM;CE | |||||
Packaging :By cartons and then by pallets
Export standard packaging with soild cartons ,pallets wrapped by plasctic films
Cartons size :485MM*320MM*180MM & 380MM*280MM*200MM
Pallets:Polywooden or iron steel
Pallets size:
112 CM *103CM*10CM
103CM*103CM*10CM
112CM*38CM*10CM
84CM*38CM*10CM
Shipping:
Delivery time:Within 15-45 days depand on order qty and our stock ability
Price term:FOB /CNF/EXW/FCA
Loading:20GP containers
Capacity:40000 tons for export qty
Stable production schedule and supply ability
Quality gurantee:
High quality ,30 years production experience,Chinese Famous Brand ,exported more than 30 countries.Advanced production and inspection equipments & quality certified by UL/FM/ISO/CE
Price advantage:
Large production and sales volume with competitive price.
Delivery advantage:
Promotely delivery 15-45 days with large volume stock,complete range of products.
Production ability:
More than 40000 tons/year
3000 empoyee above.
