STCLD-1 Static Penetration Testing Apparatus CPT machine Static Cone Penetrometer and VST Vane Shear Test Machine

STCLD-1 Static Penetration Testing Apparatus CPT machine Static Cone Penetrometer and VST Vane Shear Test Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SHTG

Model Number:: STCLD-1

Product name:: STCLD-1 Static Penetration Testing Apparatus

Penetration capacity::: 20-30kN

Penetration speed::: 0.8-1.2m/min

Winding speed::: 4-5m/min

Diameter of probe rod::: 25-28mm

Adapt probe::: 10cm²

Four-bladed vane probe size::: 50 x 100mm

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Shanghai, China

Brand Name:: SHTG

Model Number:: STCLD-1

Product name:: STCLD-1 Static Penetration Testing Apparatus

Penetration capacity::: 20-30kN

Penetration speed::: 0.8-1.2m/min

Winding speed::: 4-5m/min

Diameter of probe rod::: 25-28mm

Adapt probe::: 10cm²

Four-bladed vane probe size::: 50 x 100mm

Product Overview

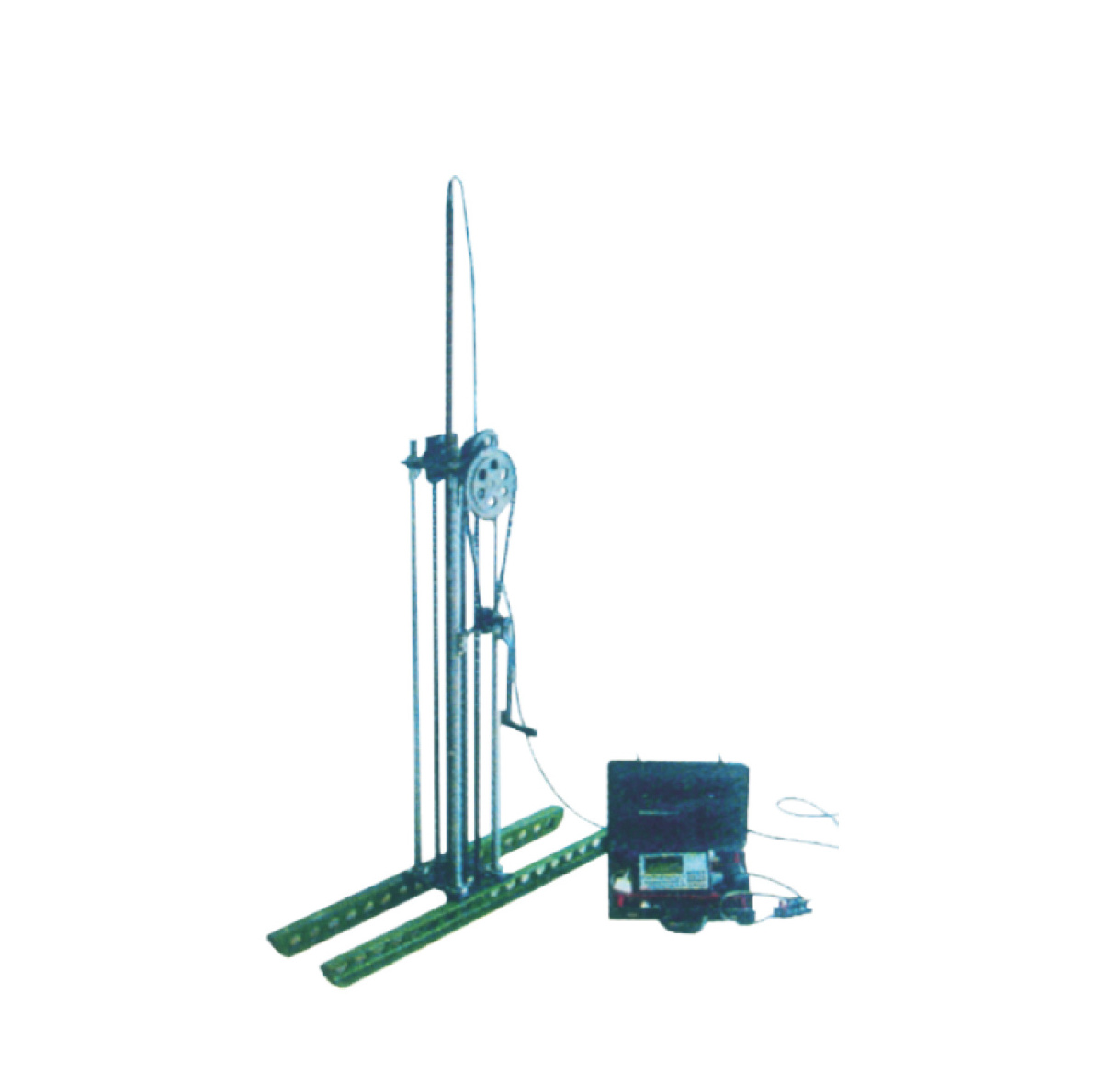

STCLD-1 Static Penetration Testing Apparatus CPT machine Static Cone Penetrometer and VST Vane Shear Test Machine

FEATURES AT A GLANCE

Application:

This machine is used to perform static penetration test, and vane test together with four-bladed vane shear testing apparatus. It's convenient in data exchange. The machine is light, easy to operate, with simple structure and stable performance. No need to be connected to external power.

Specification 1. Penetration capacity: 20-30kN 2. Penetration speed: 0.8-1.2m/min 3. Winding speed: 4-5m/min 4. Diameter of probe rod: 25-28mm 5. Adapt probe: 10cm2 6. Four-bladed vane probe size: 50X100mm (separately equiped) 7. Weight of total machine: 180kg

Application

Standard

It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant.
