- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
280
-
Product name:
-
stainless steel round pipe polishing machine
-
Application:
-
member bar, pope fittings cylindrical surface grinding and polishing
-
Max working dia:
-
1-150mm
-
Max working length:
-
6m
-
Power:
-
4kw
-
Quality:
-
top level
-
Advantage:
-
Low Cost
-
Feature:
-
High Efficiency
-
Mobile/Wechat/WhatsApp:
-
0086 18092951870
-
Skype:
-
amysilkroad
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SR
-
Power (kW):
-
4
-
Weight (KG):
-
280
-
Product name:
-
stainless steel round pipe polishing machine
-
Application:
-
member bar, pope fittings cylindrical surface grinding and polishing
-
Max working dia:
-
1-150mm
-
Max working length:
-
6m
-
Power:
-
4kw
-
Quality:
-
top level
-
Advantage:
-
Low Cost
-
Feature:
-
High Efficiency
-
Mobile/Wechat/WhatsApp:
-
0086 18092951870
-
Skype:
-
amysilkroad

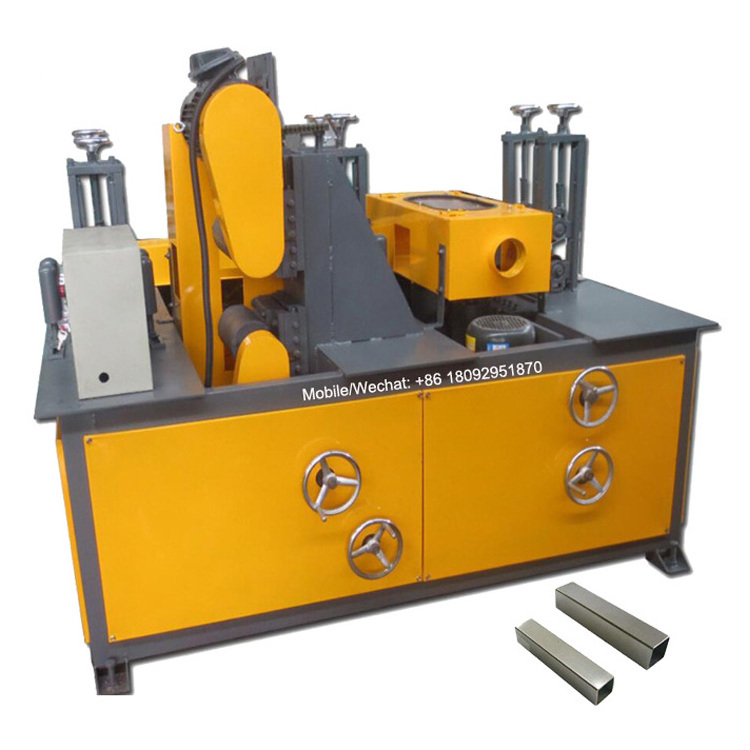

Automatic polishing machine for stainless steel square tube pipe
Contact Information:
Contact Person: Ms. Amy
Mobile/WhatsApp/Wechat/Line: 0086-18092951870
Skype: amysilkroad
I ntroductions of Stainless steel pipe polishing machine :
T he main features: increase the cooling system, it can be loaded grinding wheels, the wheel rotation speed can be adjusted, to control the speed of the feeding, and can satisfy the demands of different diameter work piece grinding and polishing.
Application of Stainless steel pipe polishing machine :
I t is suitable for all kinds of axle, member bar, pope fittings cylindrical surface grinding and polishing; long stainless steel tube, boiler tube, high precision drawn tube, ti-alloy bars; engineering machinery hydraulic lever, automobile and motorcycle shock absorber rod, valve rod, oil field pumping polished rod; polishing and grinding of various kinds of all kinds of metal/metal bar, pipe, plastic, plastic rubber tube, textile machinery polished rod and wire rod.
Parameter of Stainless steel pipe polishing machine :
|
Model |
S R -7 |
S R -10 |
S R -12 |
S R -23 |
|
Max working dia.(MM) |
1-80 |
1-120 |
1-150 |
20-200 |
|
Max working length(MM) |
6000 |
6000 |
6000 |
6000 |
|
Main roll dia.(MM) |
32 |
32 |
32 |
32 |
|
Max wheel dia.(MM) |
300 |
300 |
300 |
300 |
|
Max wheel thickness(MM) |
160 |
160 |
160 |
160 |
|
Guide roller dia.(MM) |
230 |
230 |
260 |
260 |
|
Buff whell speed(r/min) |
2800 |
2800 |
2800 |
2800 |
|
Guide roller speed(r/min) |
0-200(adjustable) |
|||
|
Working speed(m/min) |
0-10(adjustable) |
|||
|
Buff wheel power(KW) |
3 |
3 |
4 |
4 |
|
Guide roller power(KW) |
0.4 |
0.4 |
0.8 |
0.8 |
|
Total power(KW) |
3.4 |
3.4 |
4.8 |
4.8 |
|
Total weight(KG) |
320 |
360 |
420 |
460 |
|
Dimension (MM) |
900*700*1200 |
1000*700*1200 |
1100*800*1200 |
1200*800*1200 |
|
Lighting voltage(V) |
36 |
36 |
36 |
36 |
More photos of Stainless steel pipe polishing machine :
