Feature 2: Print all flat objects.
Feature 3: Use the latest L800/L805 print head.
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHBK
-
Voltage:
-
AC100-240V 50-60Hz
-
Dimensions(L*W*H):
-
56*48*40cm
-
Weight:
-
26KG
-
Product name:
-
A4 UV Printer
-
Certification:
-
CE Certification
Quick Details
-
Print Dimension:
-
160*280mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHBK
-
Voltage:
-
AC100-240V 50-60Hz
-
Dimensions(L*W*H):
-
56*48*40cm
-
Weight:
-
26KG
-
Product name:
-
A4 UV Printer
-
Certification:
-
CE Certification
Product Paramenters
|
A4 UV Printer Specifications:
|
|
|
||
|
Product Name
|
Product Name
|
A4 UV Printer
|
||
|
Model
|
Model
|
A4-6
|
||
|
Print head Model
|
Print head Model
|
EPSON L800 / L805
|
||
|
Print head Number
|
Print head Number
|
One
|
||
|
Nozzle Number
|
Nozzle Number
|
90*6
|
||
|
Print Resolution
|
Print Resolution
|
2880*1440dpi / 1440*1440dpi / 1440*720dpi
|
||
|
Printhead to object height
|
Printhead to object height
|
≤3mm
|
||
|
Prinhead Cleaning
|
Prinhead Cleaning
|
ACRORIP9.03 Automatically cleaning
|
||
|
Print Speed
|
|
|
||
|
Different Modes
|
Quick mode
|
1.5 minutes full page (White+Color)
|
||
|
|
Normal mode
|
3 minutes full page (White+Color)
|
||
|
|
High quality mode
|
6 minutes full page (White+Color)
|
||
|
Color mode
|
|
|
||
|
UV ink quick dry mode
|
|
CMYK+WW
|
||
|
Other modes
|
|
CMYK+LmLc
|
||
|
Ink system
|
|
|
||
|
ink
|
UV ink
|
C/M/Y/K/W (Using UV ink by default)
|
||
|
|
Textile ink
|
C/M/Y/K or C/M/Y/K/W
|
||
|
ink
|
Eco solvent ink
|
C/M/Y/K/Lm/Lc
|
||
|
|
Water based ink
|
C/M/Y/K/Lm/Lc
|
||
|
Working area
|
|
|
||
|
Maximum support
|
Printing area
|
16*28cm
|
||
|
|
Width of material
|
≤21cm
|
||
|
|
Length of material
|
≤35cm
|
||
|
|
Height of flat objects
|
≤8cm
|
||
|
Maximum diameter of cylindrical object
|
|
not support
|
||
|
Print items
|
|
All flat objects
|
||
|
Printing software
|
|
|
||
|
ACRORIP9.03
|
Language
|
English/Chinese/Korean/Japanese
|
||
|
|
Printing method
|
White + color printing at the same time, either white alone, or color alone
|
||
|
PC System
|
|
Windows XP/7/8/10
|
||
|
Data transmission method
|
|
USB cable
|
||
|
Operation method
|
|
|
||
|
Platform stepping method
|
|
One-key automatic control
|
||
|
Platform adjustment method
|
|
Knob adjustment table
|
||
|
More
|
|
|
||
|
Net weight
|
|
26KG
|
||
|
Gross weight
|
|
35KG
|
||
|
Cooling system
|
|
Automatic circulating water cooling and fan cooling
|
||
|
Machine size
|
|
56*48*40cm (L*W*H)
|
||
|
Packing size
|
|
64*55*46cm (L*W*H)
|
||
|
Operating environment
|
|
Temperature: 18-25℃，Humidity:35-65% RH
|
||
|
Power supply
|
|
AC100V-240V 50-60Hz
|
||
|
Power
|
|
≤90W
|
||
|
What materials can she print?
|
|
|
||
|
Printing material
|
Plastic, silicone, TPU, PV, PVC, ABS, leather, kraft paper, acrylic, metal, wood, stone, ceramics, etc., flat objectsand cylindrical objects.
|
|
||
|
Print items
|
You can also print patterns directly on mobile phone cases, cards, work cards, USB flash drives, gift boxes, cosmetic boxes,cartons, and more.
|
|
||
|
Application industry
|
UV printers are widely used in processing plants, private business owners, advertising companies, manufacturing, gift industry, clothing industry, mobile phone accessories industry and many other industries.
|
|
||
|
Packing List
|
|
|
|
1
|
1 USB memory stick (including user manual, use video, driver, printing software)
|
|
|
2
|
1 ACRORIP9.03 key, 1 power cord, 1 USB cable, 2 syringe
|
|
|
Note
|
There is no ink in the packing list, you need to buy ink yourself. You can buy any of UV ink, textile ink, eco-solvent ink, andwater-based ink.
|
|
Products Description
-
-

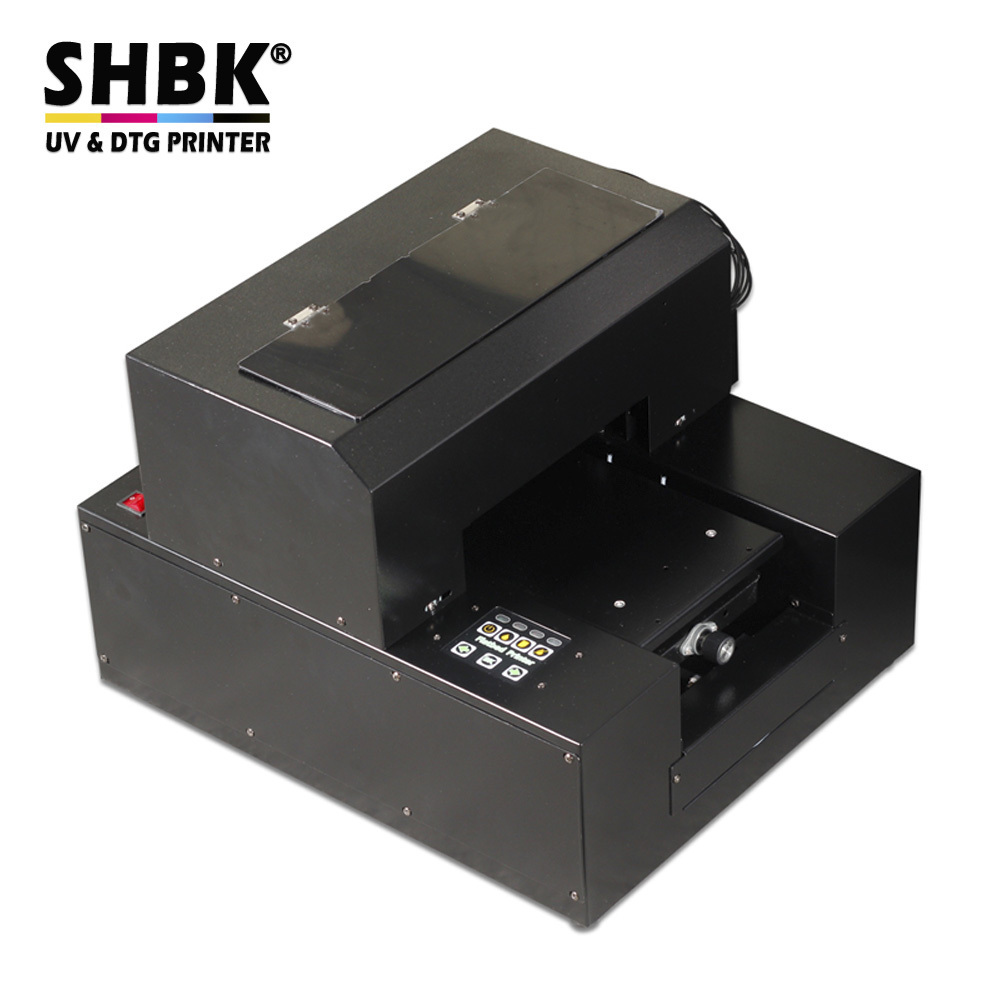

A4 UV PRINTER(A4-6)
-
Product performance description
-
Details Images
A4 UV PRINTER(A4-6)
Printing platform
Continuous ink supply system
Visual print window
Certifications
Packing&Shipping
Packing method: We use carton or wooden box packaging.
FAQ
Q: How about your warranty?
A: 1. We provide one year warranty since the shipping date.free Non-human damaged parts.
2. We have completely English instruction video and manual for you.
3. We provide online technician service
4. We provide lifetime free technical service to machine
Q: What type ink for this machine.
A: UV ink / textile ink / eco-solvent ink / Water-based ink
Q: Will you provide ink?
A: Our price doesn't including ink. You need to purchase ink separately, You can buy ink in our shop.
Q: Do you accept distributors?
A: Yes, we accept distributors from all over the world to purchase our UV printers. Our quality is reliable and the price is stable. Please contact us to discuss specific matters.
