- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Newton
-
Model Number:
-
NTGD
-
Panel thickness:
-
40/43/50/75mm Polyurethane Foam
-
Panel color:
-
RAL9006, RAL8017, RAL5010, RAL1003, RAL3002, RAL7014, RAL9016,
-
Panel texture:
-
Woodgrain, orange peel, flush
-
Panel pattern:
-
Classic cassette, rib, microwave
-
Panel material thickness:
-
0.326mm, 0.4mm, 0.45mm, 0.5mm
-
Panel height:
-
400mm, 450mm, 500mm, 550mm or customized
-
Open Style:
-
Driven by garage door opener
-
Product name:
-
Factory Direct Low Price Promotion Rapid Metal Rolling Garage Door
-
Size:
-
8x8/7, 10x8/7, 16x8/7, 18x8/7 or customized
-
Glass Type:
-
Cascade, Stockton, Sunburst, Waterton, Victorian
Quick Details
-
Door Material:
-
Galvanized steel + Polyurethane
-
Feature:
-
Thermal Insulation
-
Main Material:
-
Pre-painted galvanized steel with PU
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Newton
-
Model Number:
-
NTGD
-
Panel thickness:
-
40/43/50/75mm Polyurethane Foam
-
Panel color:
-
RAL9006, RAL8017, RAL5010, RAL1003, RAL3002, RAL7014, RAL9016,
-
Panel texture:
-
Woodgrain, orange peel, flush
-
Panel pattern:
-
Classic cassette, rib, microwave
-
Panel material thickness:
-
0.326mm, 0.4mm, 0.45mm, 0.5mm
-
Panel height:
-
400mm, 450mm, 500mm, 550mm or customized
-
Open Style:
-
Driven by garage door opener
-
Product name:
-
Factory Direct Low Price Promotion Rapid Metal Rolling Garage Door
-
Size:
-
8x8/7, 10x8/7, 16x8/7, 18x8/7 or customized
-
Glass Type:
-
Cascade, Stockton, Sunburst, Waterton, Victorian

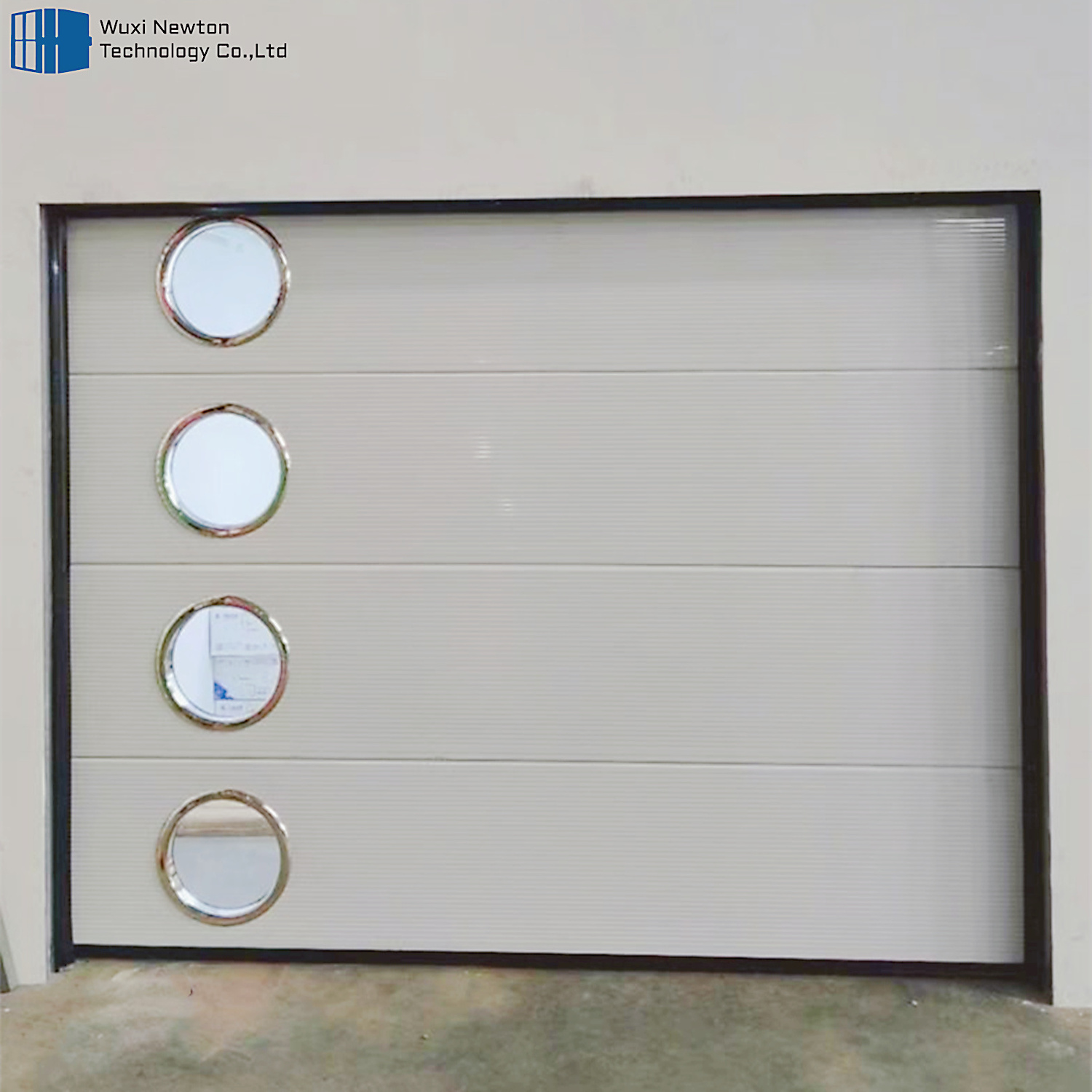

Factory Direct Low Price Promotion Rapid Metal Rolling Garage Door
Product Description
|
STRUCTURE
|
FINGER SAFE
|
NON FINGER SAFE
|
|
|
Section's height
|
450mm, 500mm, 550mm
|
500mm, 550mm
|
|
|
Section's thickness
|
40mm
|
43mm, 50mm, 75mm
|
|
|
Material - external/inner layer
|
PPGL steel made of hot-dipped galvanized steel
|
|
|
|
Material - Insulation
|
Polyurethane foam
|
|
|
|
Surfance treatments - external layer
|
Wood grain, Micro-wave, Flat-smooth
|
|
|
|
Surface treatnments - inner layer
|
Orange skin
|
|
|
|
Patterns - external layer
|
Strip; H-line; Classic; Micro-wave; Flat-smooth
|
|
|
|
Patterns - inner layer
|
Strip; Micro-wave
|
|
|
|
Size of the classic pattern
|
500 x 330mm; 1065 x 500mm
|
|
|
- Garage door structure
The durability, stability and safety of the garage door are the most important things which we concern about, in order to meet hat, we supply high quality hardware to meet the latest EN13241-1 standards of Europe. Tracks, hinges and rackets are made of hot-dipped galvanized steel, which can be used for a longtime without rusting. All accessories are designed and manufactured according to the international standards to ensure the safety and stability. The whole work in company carried out according to the high level manufacturing processes and lean management to guarantee the product meet requirements of design, the accuracy of the size and the great appearance
|
MODEL
|
600N
|
800N
|
1000N
|
1200N
|
|||
|
Voltage range/rated frequency
|
220~240V AC, 50/60Hz
|
|
|
|
|||
|
Rated power
|
200W
|
235W
|
245W
|
260W
|
|||
|
Maximum lifting force
|
600N
|
800N
|
1000N
|
1200N
|
|||
|
Door opening speed
|
180mm/s
|
|
|
|
|||
|
Lamp type
|
LED
|
|
|
|
|||
|
Lighting time
|
3 minutes
|
|
|
|
|||
|
Coding type
|
Rolling code
|
|
|
|
|||
|
Radio frequency
|
433.92 MHz or other requirements
|
|
|
|
|||
|
Ambient temperature
|
-20~+40°C
|
|
|
|
|||
|
Relative humidity
|
<90%
|
|
|
|
|||
|
Applicable door area
|
10 m2
|
12 m2
|
14 m2
|
16 m2
|
|||
- Garage door various installation
|
Single track parts list
|
Double track parts list
|
|
1. Track bracket
|
1. Track bracket
|
|
2. Adjustable side hinge
|
2. Adjustable side hinge
|
|
3. Vertical track
|
3. Vertical track
|
|
4. Flag bracket
|
4. Horizontal track
|
|
5. Angle steel A
|
5. Flag bracket
|
|
6. Side bearing bracket
|
6. Side bearing bracket
|
|
7. Cable drum
|
7. Cable drum
|
|
8. Tubular shaft
|
8. Tubular shaft
|
|
9. Torsion spring
|
9. Torsion spring
|
|
10. Center bearing bracket
|
10. Center bearing bracket
|
|
11. Coupler
|
11. Coupler
|
|
12. Top bracket
|
12. Top bracket
|
|
13. Horizontal track
|
13. Upper track
|
|
14. Angle steel B
|
14. Angle steel B
|
|
15. Motor track
|
15. Motor track
|
|
16. Motor
|
16. Motor
|
|
17. Emergency lock
|
17. Emergency lock
|
|
18. Roller
|
18. Roller
|
|
19. Adjustable bottom bracket
|
19. Adjustable bottom bracket
|
|
20. Panel
|
20. Bottom seal
|
|
21. Bottom seal
|
21. Middle hinge
|
|
22. Middle hinge
|
|
Certifications
Company Introduction
WUXI NEWTON TECHNOLOGY CO.,LTD
is the manufacturer in the field of all kinds of automatic doors in China, includes automatic folding doors, automatic industrial sectional doors, high speed roll-up doors, garage door, door hardware kit, with a well established reputation for outstanding performance.
Recognized worldwide for its proprietary design and manufacturing know how. NEWTON has been involved in this industry since 2000. We got here on the basis of providing optimal solutions and strong supports to clients who buy our products.
We are proud to offer our high quality automatic doors to the world market. But more importantly, we are pround we've helped our customers meet their demands, to grow their businesses.
Recognized worldwide for its proprietary design and manufacturing know how. NEWTON has been involved in this industry since 2000. We got here on the basis of providing optimal solutions and strong supports to clients who buy our products.
We understand what our customers need to stay competitive:
* Optimal design for different projects
* At an affordable rate
* In the fastest possible
Meeting these goals requires precision in everything we do, and all stages are controlled strictly by our skilled operators and technicians.
* Optimal design for different projects
* At an affordable rate
* In the fastest possible
Meeting these goals requires precision in everything we do, and all stages are controlled strictly by our skilled operators and technicians.
We are proud to offer our high quality automatic doors to the world market. But more importantly, we are pround we've helped our customers meet their demands, to grow their businesses.
