Quick Details
Quick Details
-
Weight (KG):
-
2000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZS

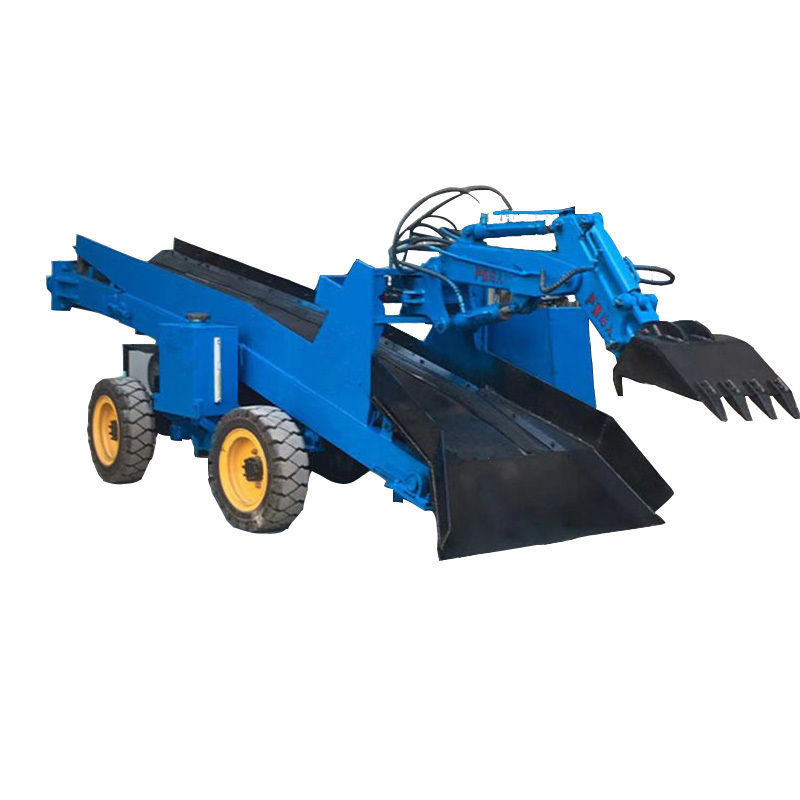

ZWY- 6 0 Mining Mucking Loader
Mucking loader, also known as excavating loader, is a mechanical hand and conveyor joint, slag removal and conveying and loading functions into one, the use of electric full hydraulic control system and production equipment, with safety and environmental protection, low energy consumption, high efficiency characteristics.
Mucking loader is an indispensable advanced mining equipment for mining enterprises. Instead of manual operation, it can scrape all kinds of slag and stone materials after blasting onto transport vehicles. It is a substitute product of manual and other machinery, filling the blank of no mechanical operation in a narrow space.
Mining multi-functional mucking loader is a new type of loader developed to improve labor intensity and work efficiency. It can directly convey ore to conveyor belt. The machine adopts full hydraulic first-come control, and the operation is simple and convenient. The gantry frame of the machine can be disassembled without cutting, so it is convenient to go down well and install. In addition, the rear unloading height can be adjusted according to the customer's own needs.
Detailed Images
|
Detailed Parameters |
|
|
Model |
ZWY-60 |
|
Machine length |
4300mm |
|
Machine height |
1500mm |
|
Distance between shafts |
1500mm |
|
Wheelbase |
1600mm |
|
Maximum ore material through size |
600*600mm |
|
Minimum distance to walk away from the ground |
180mm |
|
Maximum loading height of material rack |
1350mm |
|
Loading box length |
1200mm |
|
Maximum length of lifting bucket |
1440mm |
|
Maximum lifting height of bucket |
2150mm |
|
Power |
15kW |
|
Maximum rotation angle of mechanical arm |
73° |
|
Fastest walking speed |
3/6 km/h |
|
Maximum digging force |
11.1KN |
|
Entrucking efficiency |
60 T/h |
|
Height of driver's head to ground |
1700mm |
|
Maximum slope of conveyor belt |
22° |
|
Working space |
1.5*1.8m |
