Quick Details
-
Voltage:
-
220V/customization
-
Power:
-
5.5-90 kw
-
Dimension(L*W*H):
-
Accroding to model
-
Weight (KG):
-
30000
-
Product name:
-
Three drum dryer
-
After-sales Service Provided:
-
Online
-
Keywords:
-
Sand Drying Machine
-
Drying Oven Application:
-
Chemicals Processing
-
Advantage:
-
Low Consumption High Efficiency
-
Raw material:
-
Mortar sand machine sand slag yellow sand river sand carborundum
-
Processing capacity:
-
5-120T/h
-
Final moisture of quartz sand:
-
0.5-1%
-
Inclination:
-
3-5%
Quick Details
-
Type:
-
Drum Drying Equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kellen
-
Voltage:
-
220V/customization
-
Power:
-
5.5-90 kw
-
Dimension(L*W*H):
-
Accroding to model
-
Weight (KG):
-
30000
-
Product name:
-
Three drum dryer
-
After-sales Service Provided:
-
Online
-
Keywords:
-
Sand Drying Machine
-
Drying Oven Application:
-
Chemicals Processing
-
Advantage:
-
Low Consumption High Efficiency
-
Raw material:
-
Mortar sand machine sand slag yellow sand river sand carborundum
-
Processing capacity:
-
5-120T/h
-
Final moisture of quartz sand:
-
0.5-1%
-
Inclination:
-
3-5%
|
Three drum dryer
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Application
Product working principle
The material enters the inner layer of the rotary drum from the feeding device to achieve downstream drying. The material is continuously picked up and scattered under the lifting plate in the inner layer to achieve heat exchange in a spiral manner. The material moves to the other end of the inner layer and enters the middle layer. During counter-current drying, the material is repeatedly pushed forward in the middle layer in a two-step-forward and one-step-back motion. The material in the middle layer absorbs both the heat emitted by the inner roller and the heat of the middle roller, and at the same time prolongs the drying time. , where the material reaches the best drying state. The material travels to the other end of the middle layer and falls into the outer layer. The material travels in a rectangular multi-loop manner in the outer drum. The material that has reached the drying effect travels quickly and is discharged from the drum under the action of hot air. The wet material that has not reached the drying effect cannot be quickly discharged due to its own weight. Traveling, the materials are dried in this rectangular lifting plate, thus achieving the purpose of drying.
Product Details
The cylinder is made of rigid material with high hardness and good toughness.
Adopting the material and hot air flow drying process, the material can be dried quickly.
The appearance design adopts the combination of tug wheel and rolling ring to make it more reasonable.

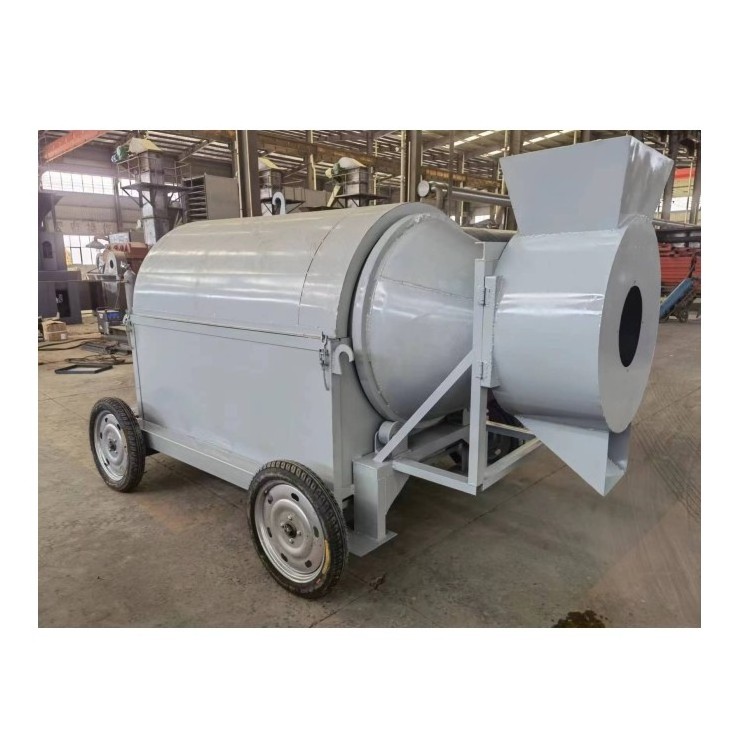

Product real picture
Packing & Delivery
All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.We can deliver the goods to every corners in the world with safety and speed, and aslo can supply the services of solving the problems occured during the transaction.
