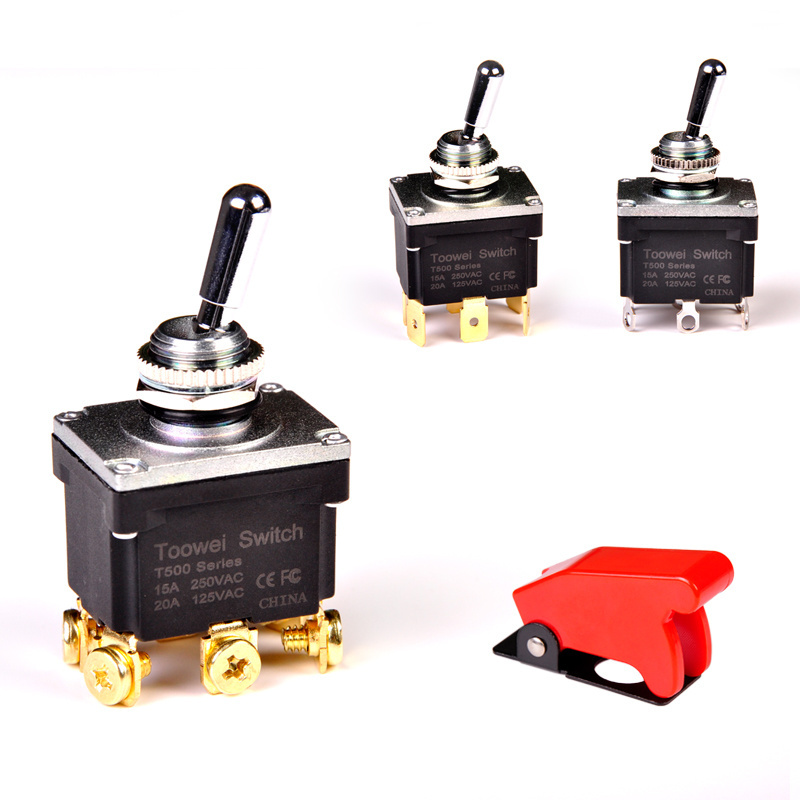

Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane
Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane
Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane
Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane
Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane
Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane
Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane
Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane

Toowei on-(on) dpdt plate 12mm brass mechanism toggle switch ip67 watertight with 6 gang screw terminal for airplane

FOB Reference Price: Get Latest Price
≥100 Pieces
US $3.32
≥3000 Pieces
US $3.15
≥5000 Pieces
US $2.99
≥10000 Pieces
US $2.82
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
T502DW
Max. Current:
20A
Mechanical Life:
50000
IP level:
IP67
Part number:
T502DW
Rating:
20A 250V/15A 125V
Function:
ON-(ON)
Supply Capacity:
100000 pcs/month
Terminal form:
screw terminal
Installation size:
12MM
Mechanical life:
50000
MOQ:
100
payment method:
T/T, PayPal, Western Union

Quick Details

Max. Voltage:
250V
Place of Origin:
Zhejiang, China
Brand Name:
Toowei
Model Number:
T502DW
Max. Current:
20A
Mechanical Life:
50000
IP level:
IP67
Part number:
T502DW
Rating:
20A 250V/15A 125V
Function:
ON-(ON)
Supply Capacity:
100000 pcs/month
Terminal form:
screw terminal
Installation size:
12MM
Mechanical life:
50000
MOQ:
100
payment method:
T/T, PayPal, Western Union
Products Description
Product name
toggle switch
Model
T502DW
Function
ON-(ON)
Supply capacity
100000 pcs/month
Rating
20A 250V/15A 125V
Terminal form
screw, quick connect, soldering
Installation size
12MM
Mechanical life
50000
Poles
DPDT
MOQ
100pcs
Details Images
Product Paramenters

Technical Parameter

1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage: 1500VAC
50/60hz
Leakage current: 5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times Mechanical life: 50,000 times
7.Humidity: below 85% RH
8. Terminal form: screw terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering
iron：345±5° 3~5S
9. Protection degree: IP67
