Quick Details
-
Model Number:
-
YT12WD
-
Type:
-
Touch sensitive switch
-
Power:
-
12W
-
Sensing Range:
-
1-6mm
-
Product name:
-
Single touch switch with driver
-
Size:
-
7.2cm*4.6cm*1.3cm
-
Logo:
-
Accept Customized
-
Weight(swtich+driver):
-
75g
-
Support thickness:
-
1-6mm glass/mirror...
-
Input:
-
AC180-240V AC 50/60HZ
-
Output:
-
DC12V/1A
-
Fn:
-
50/60Hz
-
Max Loading:
-
12W
Quick Details
-
Voltage:
-
180-240V AC 50-60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xinshenlu
-
Model Number:
-
YT12WD
-
Type:
-
Touch sensitive switch
-
Power:
-
12W
-
Sensing Range:
-
1-6mm
-
Product name:
-
Single touch switch with driver
-
Size:
-
7.2cm*4.6cm*1.3cm
-
Logo:
-
Accept Customized
-
Weight(swtich+driver):
-
75g
-
Support thickness:
-
1-6mm glass/mirror...
-
Input:
-
AC180-240V AC 50/60HZ
-
Output:
-
DC12V/1A
-
Fn:
-
50/60Hz
-
Max Loading:
-
12W

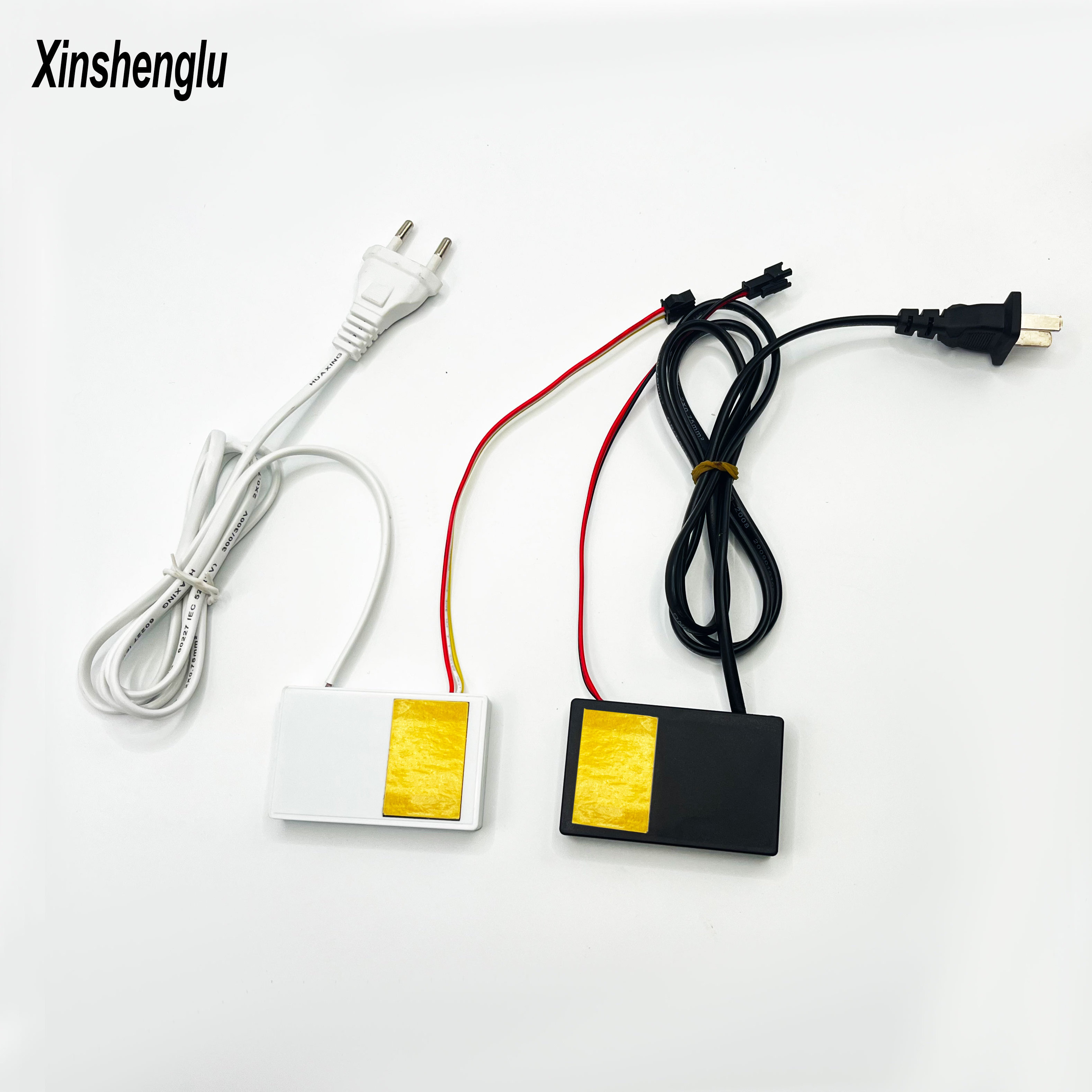

Products Description
*The
Mirror Touch Dimmer Switch with Internal LED Power Supply(LED Driver/LED Transformer)
is a smart switch specially designed for all kinds of bathroom smart light mirrors, bathroom antifog light mirrors, LED light mirrors, mirror cabinets and other products,
and for control closed areas are formed in the places of the buttons by removing the reflective layer.
ATTENTION! The outer contour of the picture must be closed! An open contour of the pattern is not allowed.
*This touch switch has a beautiful appearance, reliable performance, installation convenience, slim size, sensitive touch
ATTENTION! The outer contour of the picture must be closed! An open contour of the pattern is not allowed.
*This touch switch has a beautiful appearance, reliable performance, installation convenience, slim size, sensitive touch
etc. , suitable for touch sensing control on the surface of various mirror lamps or other glass.
*The smart touch control sensor switch is used to turn on / off 12V LED lamps with power up to 1A 12W . *The switch is equipped with 2 modes (ON/OFF+Dimming; Color Adjusable+Dimming) available.
*This sensor switch will memorize the status of the dimming in 12VDC.
*The smart touch control sensor switch is used to turn on / off 12V LED lamps with power up to 1A 12W . *The switch is equipped with 2 modes (ON/OFF+Dimming; Color Adjusable+Dimming) available.
*This sensor switch will memorize the status of the dimming in 12VDC.
|
Product Name
|
Integrated single control single touch switch
|
|
Product Function
|
Three colors can be Select（Color Temperature3000K-6500K）White / warm / natural light
|
|
Product Composition
|
wire+Shell+Moudle
|
|
Size
|
7.3cm*4.6cm*1.3cm
|
|
Size(moudle)
|
6.8cm*4.3cm
|
|
Weight(swtich+driver)
|
75g
|
|
Customizable
|
Yes
|
|
Usage
|
Mirror
|
|
Certification
|
CE/RoHS
|
|
Input
|
DC12V
|
|
Output
|
DC12V/1A
|
|
Un
(driver transformer)
|
Ac180-240V
|
|
Uout
(driver transformer)
|
DC12V
|
|
In
(driver transformer)
|
0.2-0.25A
|
|
Pout
(driver transformer)
|
12W
|
|
Fn
(driver transformer)
|
50/60Hz
|
|
ta
(driver transformer)
|
45℃
|
|
PF
(driver transformer)
|
0.9
|
|
tc
(driver transformer)
|
85℃
|
|
Support Thickness
|
1-6mm glass/mirror...
|
