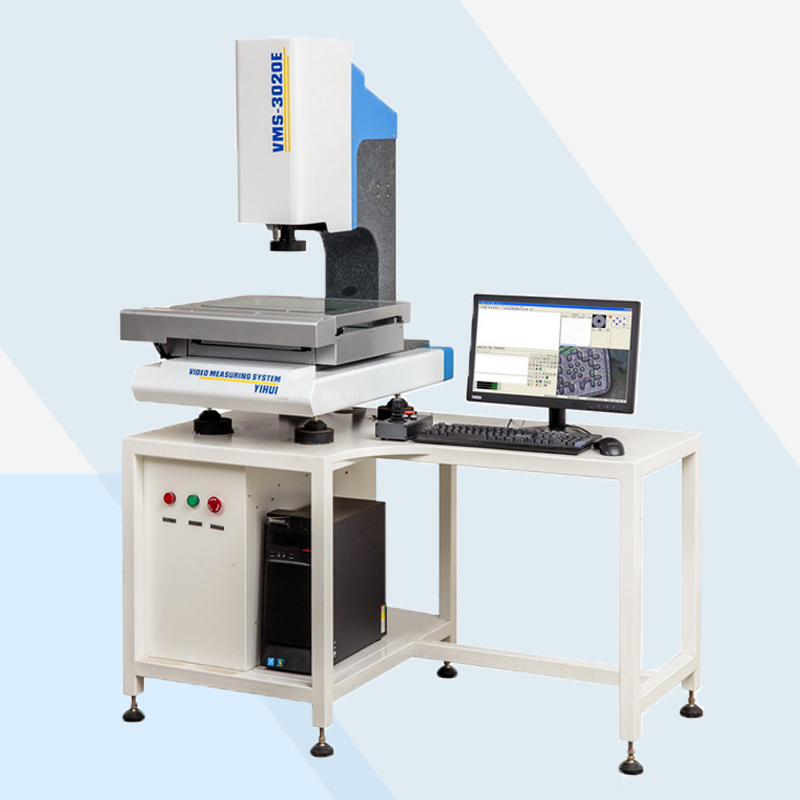

Fully Automatic CNC Optical Video Measuring Machine

Fully Automatic CNC Optical Video Measuring Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: VMS-3020E

Accuracy:: Ex,y ≤ (3.0+L/200)μm

Video Magnification:: 20~128X

Scale Resolution:: 0.5μm

Quick Details

Warranty:: 1 Year

Place of Origin:: Guangdong, China

Brand Name:: YIHUI

Model Number:: VMS-3020E

Accuracy:: Ex,y ≤ (3.0+L/200)μm

Video Magnification:: 20~128X

Scale Resolution:: 0.5μm

Product Description

CNC Video Measuring System VMS Series

I. Usage

VMS Series is an universal type of CNC Video Measuring System developed by Yihui.

It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision automatic measurement.

II. Features

1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.

2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.

3. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.

4. With my company-specific CNC software has greatly enhanced the efficiency measurement.

5. Granite base, column, high stability.

III. Specification

Code		04172…	001		002		003
Model			VMS-3020E		VMS-4030E		VMS-5040E
Worktable	Work t able D(mm)		500*330		606*466		706*566
	Glass T able Size(mm)		350*280		450*350		550*450
	X,Y Stroke(mm)		300*200		400*300		500*400
	Load Capacity		approx. 20 kg		approx. 30 kg		approx. 35 kg
R esolution			1μm		1μm		1μm
Accuracy *			Ex, y ≤ ( 3.0+L/200 ) μm
Z-axis Stroke (mm)			150 (Focus)		150 (Focus)		150 (Focus)
Instrument Weight (kg)			270		325		500
Dimension (mm)			670660950				80010401020
Motor	Three-axis Max. V elocity			X,Y: 400mm/s Z: 200mm/s
	Three-Axis Positioning Accuracy			0.001mm
Imaging System	Camera			TEO™ Color 1 / 2 "CCD Camera
	Zoom Lens			coaxial optical manual zoom lens
	Zoom Lens Magnification			0.7-4.5X
	Video Magnification			20-128X
	FOV			11.1-1.7mm
	Power Consumption			600W
Instrument Accessories	1X Tube (standard)			0.5X Tube (optional)				WD
Zoom Lens	0.7-4.5X			0.7-4.5X
Add Mirror	Video Magnification		FOV	Video Magnification		FOV
0.5X(option)	10X-64X		22-3.4	5X-32X		44-6.8		175
1.0X(standard)	20X-128X		11.1-1.7	10X-64X		22-3.4		92
2.0X(option)	40X-256X		5.5-0.9	20X-128X		11.1-1.7		36

* All data is tested according to Standard JJF1318-2011

Our Services

Warranty Terms

12 months warranty. Buy with confidence!

1. Within 12 months from the date of assembly and acceptance, during this period, we will take phone and the internet to provide users with a combinative after-sale advisory service.

Our hot-line is +86 769-33360095.

2. We provide life-long warranty services of instrument for users by preferential price.

1) If instrument failure caused by our side, we will send spare parts at our

cost to customer for replacement under our instruction, and we can have

engineers for customer site services.

2) Key components like video card, data card, motion controller, servo motors

can be replaced for free within 3 months if quality problem.

3) We provide free life-long software upgrade for the user on legal use.

3. If our engineer will be invited to customer side for training/service, our technical service will be free, except ticket and accommodation.

4. Our company has spare parts which can be provided for the users with cost.

5. We provide users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.

FAQ

Q: We don't know much about the machine but we need it, how to decide which model is the best?

A: Please se n d inquiry to our Sales telling what you need the machine to do. And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.

Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?

A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.

Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service. Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accommodation.
