Quick Details
-
Model Number:
-
Z-15GQ-B
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25℃~+85℃, -25℃~+85℃
-
Protection Level:
-
IP40
-
Item:
-

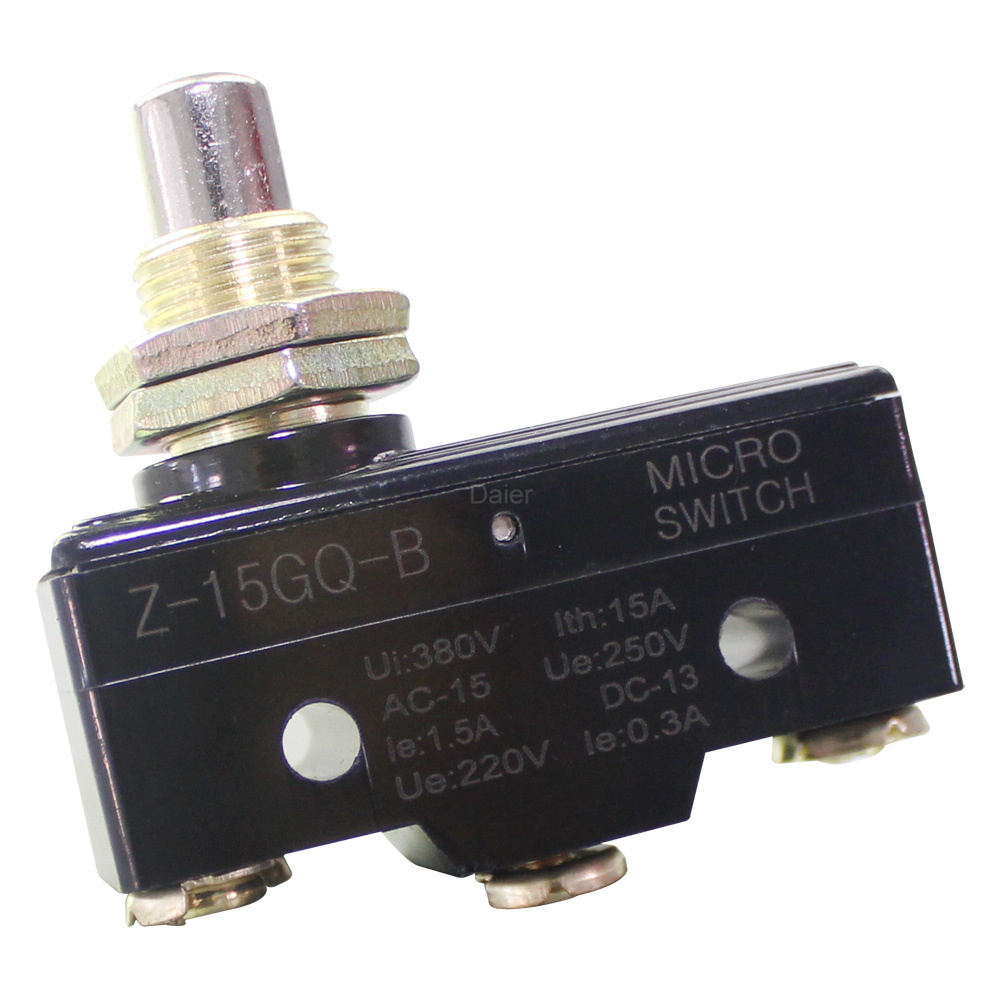

Hot Sale 250v AC Miniature Micro Switch Micro Enductive Switch
-
Rating:
-
15A 250VAC
-
Switch Functiom:
-
SPDT
-
Housing Color:
-
Black
-
Terminal:
-
Screw Terminals
-
Lever:
-
No Lever
-
Operating Speed:
-
0.01mm~1m/s
-
Application:
-
Home Appliances, Automotive Electronics, Automation, etc.
-
Electrical Life:
-
≥10000 Cycles
-
Certification:
-
other
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
Z-15GQ-B
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25℃~+85℃, -25℃~+85℃
-
Protection Level:
-
IP40
-
Item:
-
Hot Sale 250v AC Miniature Micro Switch Micro Enductive Switch
-
Rating:
-
15A 250VAC
-
Switch Functiom:
-
SPDT
-
Housing Color:
-
Black
-
Terminal:
-
Screw Terminals
-
Lever:
-
No Lever
-
Operating Speed:
-
0.01mm~1m/s
-
Application:
-
Home Appliances, Automotive Electronics, Automation, etc.
-
Electrical Life:
-
≥10000 Cycles
-
Certification:
-
other
Product Description
|
Item
|
Hot Sale 250v AC Miniature Micro Switch Micro Enductive Switch
|
|
Rating
|
15A 250VAC
on off micro snap action switch
|
|
Operating Speed
|
0.01mm~1m/s
|
|
Housing Color
|
Black
|
|
Switch Function
|
OFF momentary ON
|
|
Initial Contact Resistance
|
25mΩ Max.
|
|
Initial Insulation Resistance
|
100mΩ Min.(at 500VDC)
|
|
Operating Frequency
|
20 operations/min
|
|
Ambient Humidity
|
85% RH Max.
|
|
Operating Temperature
|
-25°C~+85°C
|
|
Electrical life
|
>10000 Cycles
|
The Z-15 micro switch of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available.
Product Show
Related Roducts
Z-15GD-B
Z-15GW21-B
Z-15GW22-B
