Quick Details
-
Model Number:
-
CS-666D
-
Max. Current:
-
15 Amps
-
Mechanical Life:
-
80000 Times
-
Product Color:
-
Black
-
Product Material:
-
Panel:Aluminum, Switch:ABS&PC
-
Product Size:
-
14.8*10.3 *7.5cm
-
Backlit:
-
Blue/Green/Red
-
Switch Type:
-
Toggle, Rocker
-
USB socket output:
-
DC 5V (2.1A/2.1A)
-
Degree Of Protection:
-
IP65
-
Maximum Power:
-
240W
-
Installation:
-
pre-wired
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
24 Volts
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Model Number:
-
CS-666D
-
Max. Current:
-
15 Amps
-
Mechanical Life:
-
80000 Times
-
Product Color:
-
Black
-
Product Material:
-
Panel:Aluminum, Switch:ABS&PC
-
Product Size:
-
14.8*10.3 *7.5cm
-
Backlit:
-
Blue/Green/Red
-
Switch Type:
-
Toggle, Rocker
-
USB socket output:
-
DC 5V (2.1A/2.1A)
-
Degree Of Protection:
-
IP65
-
Maximum Power:
-
240W
-
Installation:
-
pre-wired
-
Certification:
-
CE
Products Description

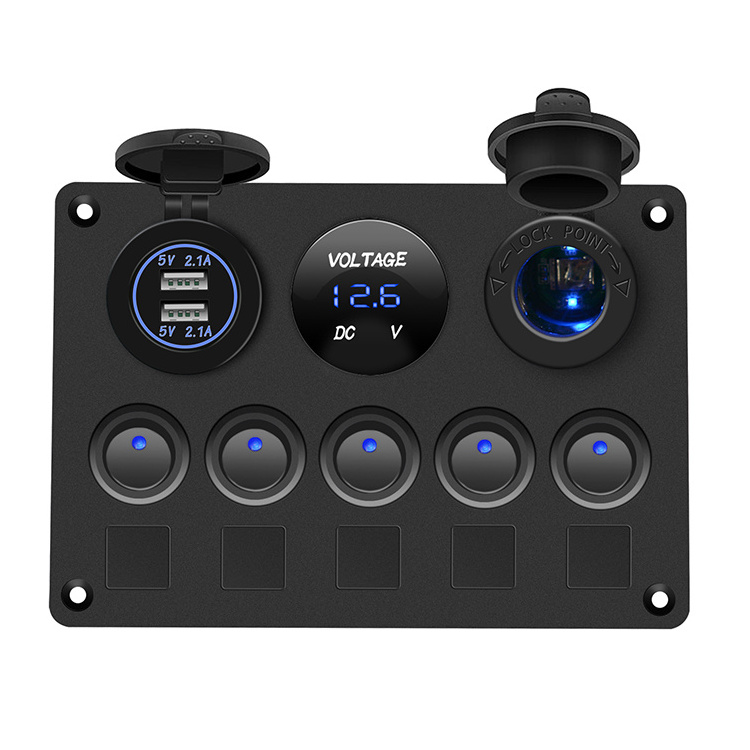

Multi functional Rocker switch panel convenient for multi-purpose work.
Made of high quality alloy and ABS material, USB socket for DC 12V-24V car, ship, truck, marine boat, yacht, trailer, RV, caravan, camper, bus, UTV/ATV and other 12-24V equipment.
Made of high quality alloy and ABS material, USB socket for DC 12V-24V car, ship, truck, marine boat, yacht, trailer, RV, caravan, camper, bus, UTV/ATV and other 12-24V equipment.
|
Product Name
|
5 position round small switch+4.2A multi-color double usb+blue button voltmeter+12V with LED Light
|
|
Product Model
|
CS-666D
|
|
Net Weight
|
330.1G
|
|
Gross Weight
|
434.1G
|
|
OFF-NONE-ON
|
OFF-NONE-ON
|
|
Lift Type
|
15 Amps
|
|
Current Rating
|
24 Volts
|
|
Contact Type
|
Normally Closed
|
|
Connector Type
|
Plug In
|
|
Product Size
|
14.8cm*10.3 cm*7.5cm
|
|
Opening Size
|
13cm*8.5cm
|
|
Product Material
|
ABS, nylon, aluminum plate, high and low temperature resistant, flame retardant and environment-friendly materials
|
|
Light Color
|
Cigar lighter: blue USB: blue voltmeter: blue
|
|
Product Color
|
black
|
|
Operating Temperature
|
- 25 ℃ - 80 ℃
|
|
Maximum Power
|
240W
|
|
Input Voltage
|
DC12V/24V
|
|
Output Voltage
|
5V
|
|
Output Current
|
4.2A 10A 20A
|
|
Degree Of Protection
|
IP65
|
|
Voltmeter Detection Range
|
0-15V
|
|
Relevant Certificates
|
CE/ROHS/UL
|
*DIY ON/OFF Switch：
With an independent ON/OFF switch, this electrical panel can control 5 devices at the same time. The included stickers determine the use of each switch, to identify each function, and to control your car or boat electronics with the focus switch
*Multiple Safety Protection & Strong Waterproof：
This marine panel with built-in 5 15A fuses provide overload/overheat/overvoltage/overcurrent/low voltage/short circuit protection, and automatically shut off when overloaded, preventing overheating and overcharging of electrical equipment. Furthermore, the IP65 waterproof boat switch panel comes with a special rubber cap and a seal ring for added permeability, so you don't have to worry about water obstruction when using it in the boat
*Easy Installation：
Pre-wired integrated design. Fix this car charger panel with 4 screws and connect the red line on the back to the power "+" and the black wire to the power source "-" for use. Sleek design will not affect the appearance of your car or boat
*Wide Application & Multi-Functional Operation：
This marine panel is widely applied to DC 12V/24V car, truck, trailer, bus, off-road, caravan, ships, yachts, ATVs, RVs, boats, tractors, etc. Supports charging USB devices such as mobile phones, GPS portable car navigation systems, dash cams, etc. It can also be used to control car trains such as headlights, fog lamps, car refrigerators, car vacuum cleaners, and other outdoor equipment
You can freely change the direction of the USB socket&voltmeter&cigarette lighter base according to your usage habits.
